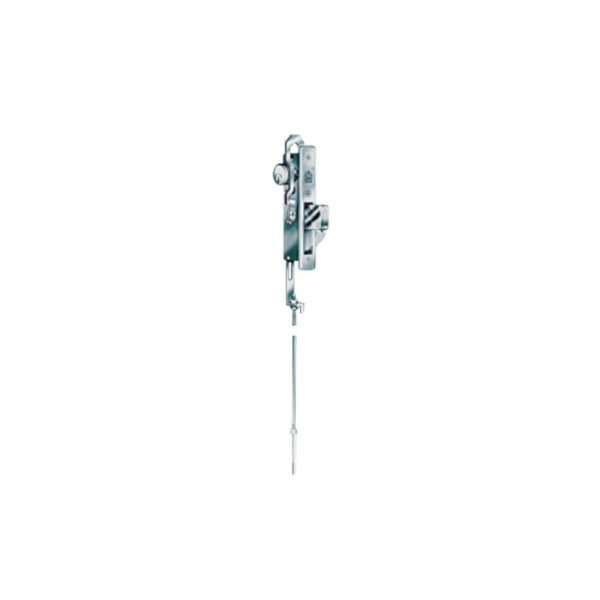

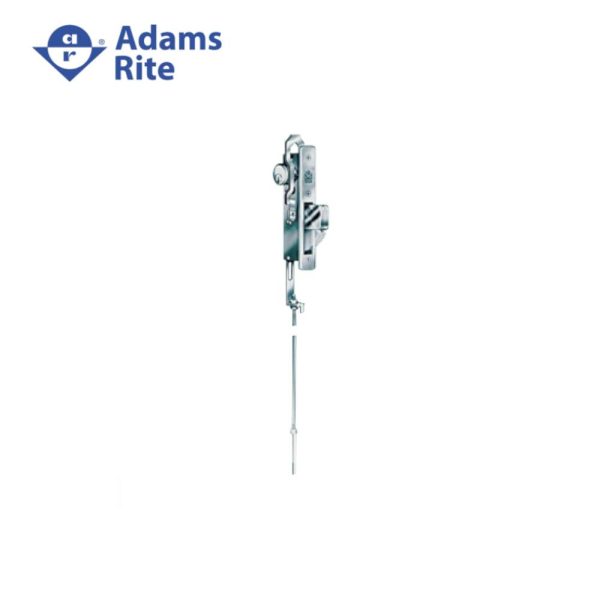

Adams Rite – 4015-18-IB – Two-Point Converter Threshold Bolt

The 4015-18-IB series threshold bolt is a two-point lock that easily secures a double door entrance. It functions as adding the 4015 threshold bolt to a pivoted bolt MS deadlock allows maximum security for pairs of doors by the turn of a single key. Simultaneously dropping a hexbolt into the threshold and pivoting the massive MS bolt into the mating door s stile, the two-point lock secures the entire double door entrance. The 4015 threshold bolt is harnessed to the rear of the pivoted bolt. It may be added to any basic MS1850S or MS1850SN deadbolt. It operates with 360 degree turn of key or thumbturn in basic MS deadlock throws counterbalanced bolt into opposite door and drop-bolt into threshold. The key can be removed only when bolts are in a positively locked or unlocked position.

Features:

• Cylinder Height: Standard threshold bolt rod is sufficient for cylinder height up to 53-7 16 . It is fully threaded and can be cut off for low cylinder heights.
• Adjustment: Exact adjustment of threaded rod to cylinder heights is locked in place by hexagonal threshold bolt.
• Strike: For drop-bolt, a 1 2 diameter hold in metal threshold is suitable. For non-metal installation,Use 4005 strike (not included).
• Threshold Bolt: Hexagonal 3 8 flat to flat. Made of stainless steel.
• Options: 4015-18 For universal application, with fully threaded rod for cut off to any cylinder heights below 53 .
• Standard Package: Packed separately with bolt guide, screws, and attachment pin.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Adams Rite
  SKU		4015-18-IB
  UID		ADA100401518IB
  Installation		Commercial
  Unit of Measure		Each
  Product Type		Aluminum Door Lock Parts and Accessories
