Description

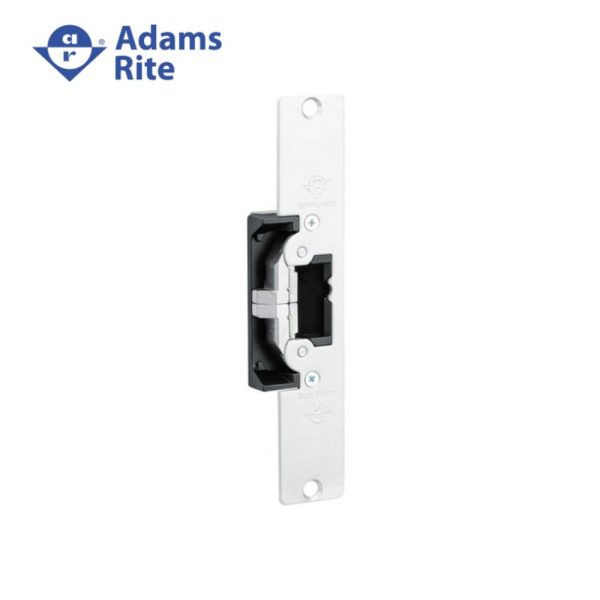

Adams Rite – 7430-628 – Electric Strike For Cylindrical Locks and 6-7 8 Faceplate with Radius Corners – 628 (Satin Aluminum Clear Anodized Finish)

UltraLine Electric Strikes designed for use in aluminum, hollow metal or wood applications.

7400, 7401 Electric Strikes with 4-7 8” faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1 2” to 5 8” latchbolt projection.

Features:

• Fail-Safe Fail-Secure: Field selectable at time of installation.
• Case: Approximately 1” x 3-3 8” x 1-1 16” deep.
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3 4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
• Strike Opening: 5 8” adjustable x 1-7 16” x 1 2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
• Faceplate: Measures 1-1 4” x 4-7 8”. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
• Field selectable to match power source of 12, 16, or 24 VDC.
• 16 DC requires adapter (P N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Adams Rite
  SKU		7430-628
  UID		ADA1007430628
  Installation		Commercial
  Unit of Measure		Each

  Technical Specifications:

  Function		Field Selectable (Safe Secure)
  Operating Voltage		12, 16, 24 VAC DC
  Amp Draw		.163A @ 12AC, .440A @ 12DC, .228A @ 16AC, .458A @ 16DC*, .084A @ 24AC, .230A @ 24DC
  Faceplate Size		6-7 8 In. X 1-1 4 In.
  Faceplate Shape		Flat Face, Round Corners
  Product Type		Electric Strikes
