Description

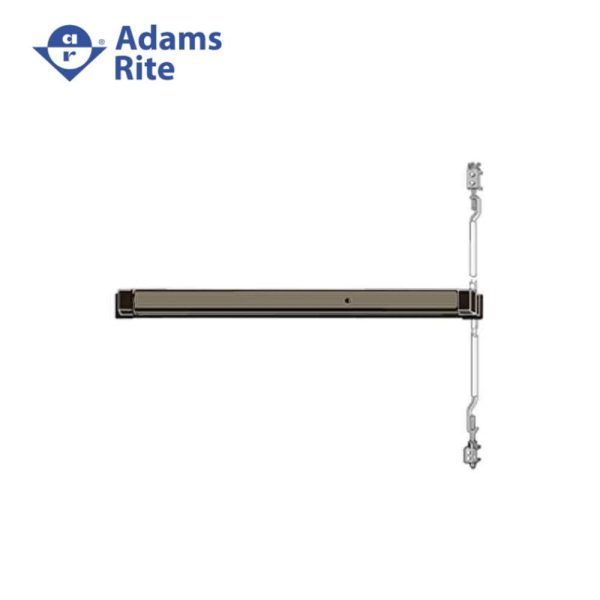

Adams Rite – 8622MLR-36 – Narrow Stile Concealed Vertical Rod Exit Device – 36 – 313 (Dark Bronze Anodized Aluminum)

Patented Starwheel bolt interlocks door to frame, which is a unique feature for exit devices. The Starwheel bolt comes into play when the door closes. The interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide springs over, locking the starwheel bolt to the strike. When the pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike.

Features:

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30” to 44”.
• Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
• Door Thickness: Suits 1-3 4” standard, up to 2-1 4”.
• Stile Width: 3100 – Minimum 3-3 4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3 4”.
• Projection: 2-15 16” when fully projected, 1-15 16”when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
• Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
• Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Cylinder x Fixed Pull: (ANSI BHMA Function 03): Accepts any standard Rim cylinder.
• 3080 Entry Trim (ANSI BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1 4”. (Available separately)

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Adams Rite
  SKU		8622MLR-36
  UID		ADA1008622MLR36
  Grade		Grade 1
  Installation		Commercial
  Unit of Measure		Each

  Technical Specifications:

  Physical Appearance		Narrow Stile Pushpad
  Device Type		Concealed Vertical Rod
  Device Length		36
  Hand		Non-Handed
  Electric Options		Motor Latch Retraction
  Dogging Options		Electric Dogging
  Top Strike		31-0945
  Minimum Stile Size		2
  Door Material		Aluminum
  Door Width		1-3 4 to 2-1 4
  Door Height		66 Above Bar
  Reversible		Yes
  Product Type		Concealed Vertical Rod Exit Devices
