Description

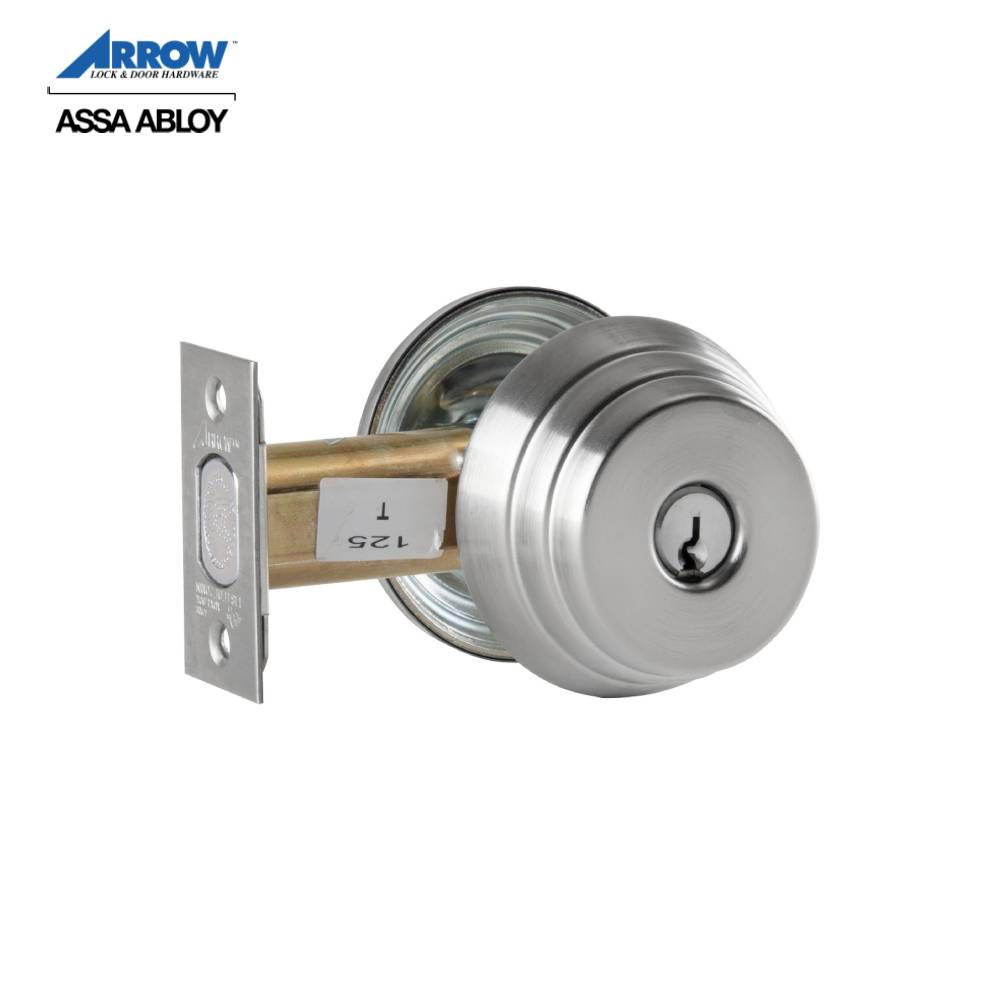

Arrow – E61-26D – Single Cylinder Deadlock – 2 3 8 Backset – Field Reversible – Satin Chrome Finish – Grade 2

Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Features:

• Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

• Thru-bolting: supplied with two 1 4 (6.35 mm) steel thru-bolts.

• Deadbolt: 1 (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.

• Backset: 2-3 8 (60.32 mm), 2-3 4 (69.85 mm

• Deadbolt fronts: 2-1 4 (57.15 mm) x 1 (25.40 mm) standard for 2-3 8 (60.32 mm) backset

• Doors: 1-3 8 (34.925 mm) to 1-3 4 (44.45 mm) thick standard.

• Strikes: Supplied standard with #395 strike pack (metal and wood).

• Handing: All functions are reversible.

• Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41 42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers cylinders but cannot be ordered with the product.

• Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

• Product Specifications:

  Vendor		ASSA ABLOY
  Manufacturer		Arrow
  SKU		E61 26D
  UID		ARR100E6126D
  Grade		Grade 2
  Installation		Commercial
  Unit of Measure		Each
  ANSI Number		A156.5

  Technical Specifications:

  Function		61-Single Cylinder Deadbolt
  Cylinder Type		Conventional Cylinder
  Num Pins		6-pin, Keyed 5
  Std. Keyway		Arrow A
  Keying		Keyed Alike Group of 4
  Key(s)		Cut
  Num of Keys		2
  Handing		Field Reversible
  Door Thickness		1-3 8 – 1-3 4
  Std. Latch Number		141
  Std. Latch Type		Deadbolt
  Std. Latch Backset Dim		2-3 8
  Lock Face Size		2-1 4 In. x 1 In.
  Bolt Projection		1 Deadbolt
  Std. Strike Number		395 (345 & 346)
  Std. Strike Type		Flat Strike
  Std. Strike Height		2-3 4
  Std. Strike Width		1-1 8
  Screws		Combination
  Product Type		Deadbolts
