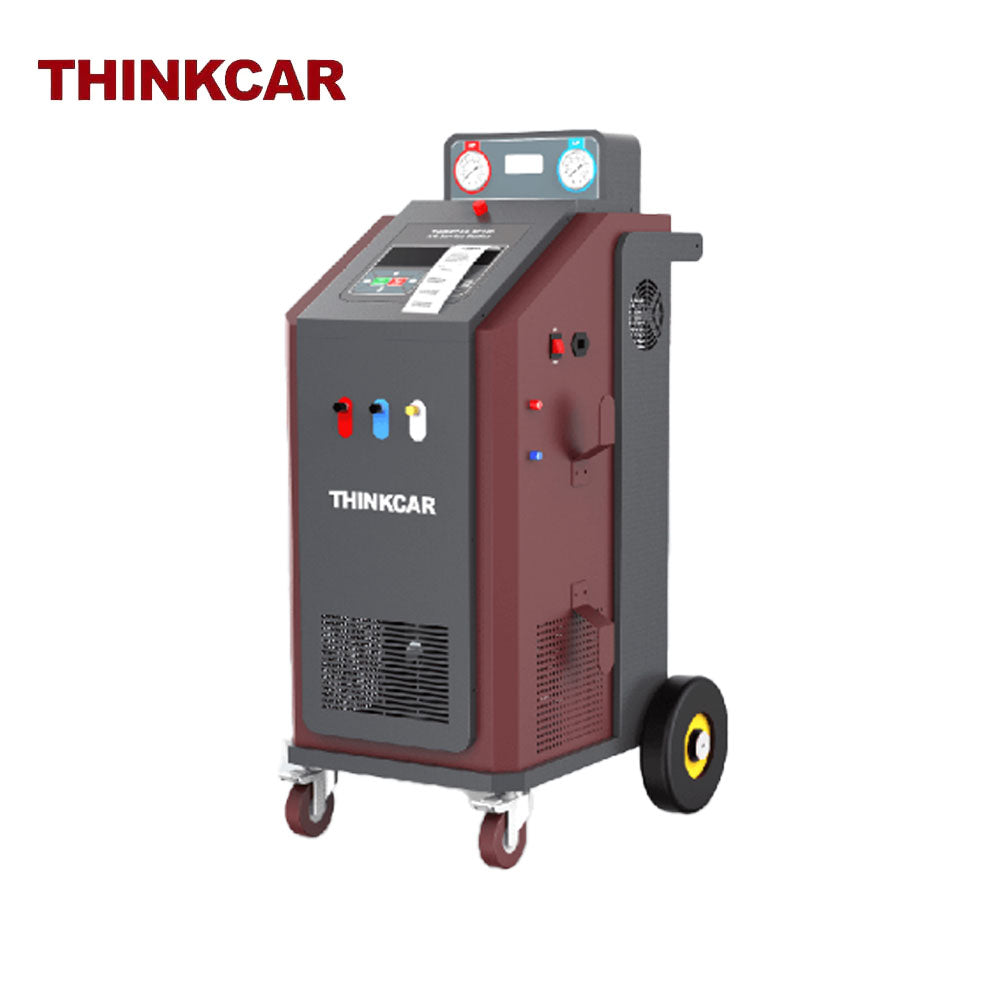

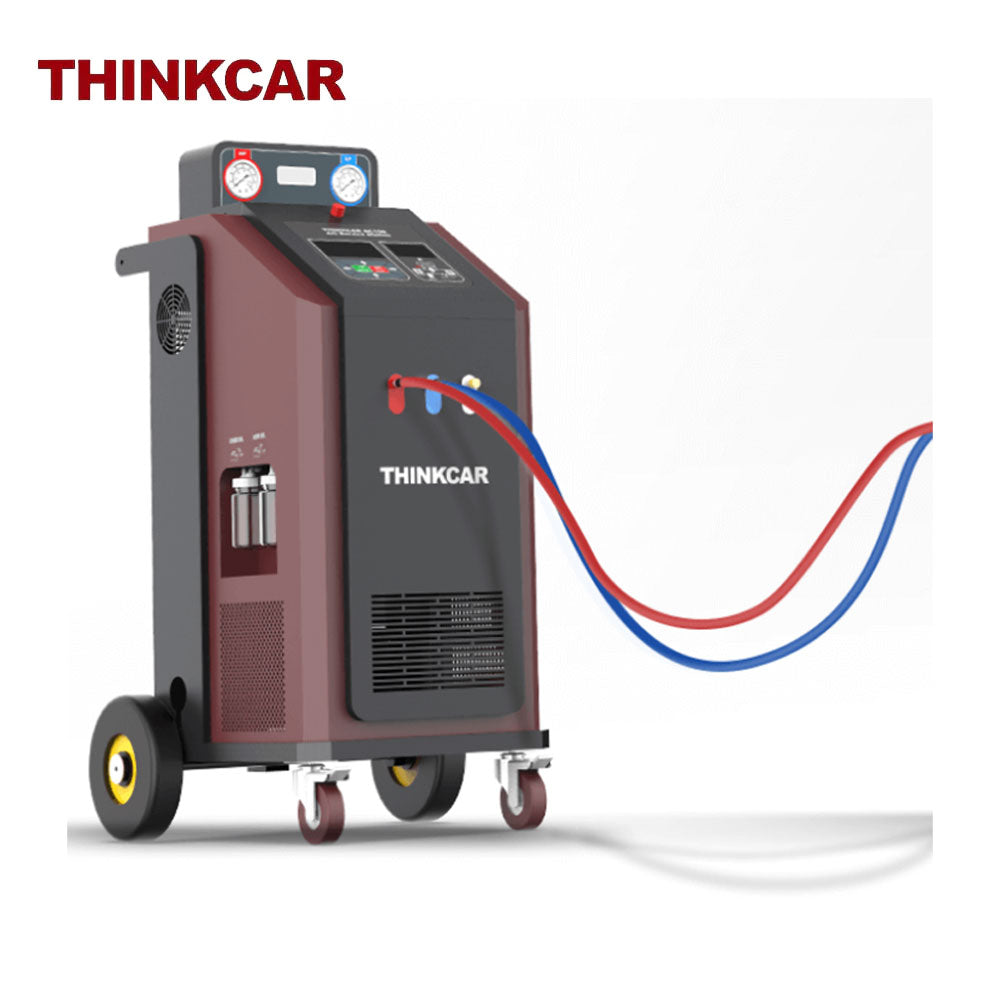

THINKCAR AC100 – A C Service Station Intelligent Refrigerant Recovery Machine

Description:

THINKCAR AC 100 is an intelligent refrigerant recovery machine developed by THINKCAR. It supports two types of refrigerants, R134a and R1234yf. The Ac 100 integrates the functions refrigerant recovery, filling, vacuuming, and refueling. The unique design with automatic working panel help the technicians and automotive maintenance more professional and simplistic.

Features:

• Flushing-recovery
• Recovery Recycle
• Vacuum
• Fill new oil
• Recharge
• Auto mode
• NO1: Refry is not enough

• Automatic Working Mode

  Support parameter setting in advance to complete the work according to the instructions.

  Reliable and Safety Operation

  Support automatically stop and alarm when there is a problem with the replacing process to ensures the safety of the equipment and vehicle.

  Build-in Database

  The build-in database to help matching the corresponding vehicle refrigerant type and filling amount to improve efficiency.

  Unique Design

  With the large size transparent viewing window and the LED background light, the operation process and data is clearly visible.

  Equipped with a Micro-Printer

  Equipped with a micro-printer to print out the total working hours and materials used.

  Small Tank Interface

  Equipped with a small tank interface to add small tank of refrigerant.





  Specifications

  • Refrigerant Tank: 12L (Max: 10kg)
  • Vacuum Pump: 7.2m³ h, 5Pa
  • Working Temperature: 0-50℃
  • Compressor: 12.12cm³
  • Input Voltage: AC220V~50 60Hz or AC110V~60Hz
  • Work pressure: 20 Bar (Max.)
  • LCD Size: 240mm X 128mm

  • Packing List:

    • 1 x Main Unit
    • 1 x Couples High and Low Pressure
    • 1 x Working Tubes (3m) Red and Blue
    • 4 x Seal for Tube
    • 1 x Power Cable
    • 1 x Expansion Joint
    • 1 x User Manual

    • Product MPN: 3.10.01.0008
