Description

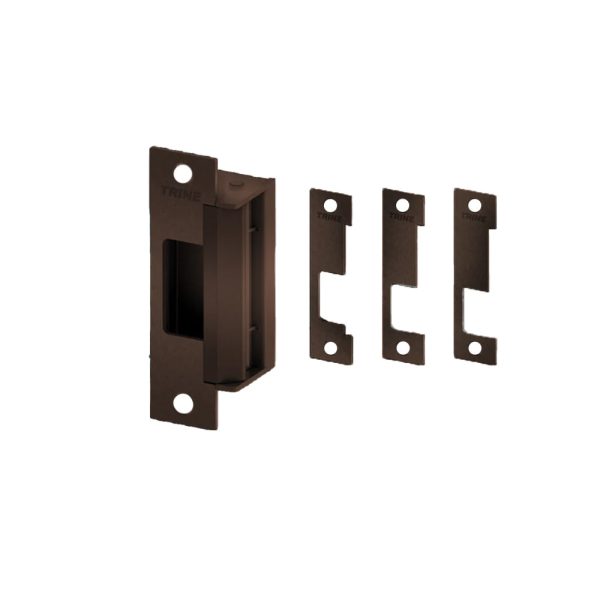

Trine – TRE-4100-10B – Electric Strike 4100 Series 4-7 8 x 1-1 4 Faceplates for Cylindrical and Mortise Locks Fail Secure – 12 24 VDC AC – 613 (Oil Rubbed Bronze-10B)

Features

• BHMA Grade 1 Electric Strike — heavy duty construction, 1,000,000+ Life cycles — 3,250+ lbs. Holding Force
• Four popular faceplates included — including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.
• 1 – 3 8” Shallow backset — the 4100 low profile electric strike can be used in 2” fire rated frames with 1 2” sheetrock ingress
• Low Current Draw — .240 Amp at 12DC makes it very PoE Friendly12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need
• The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712 732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.
• Why cut for a deadbolt 100% of the time when they are only used 5% of the time.
• Patented # US20110241361
• Cutout Specification A115.1 (with Slight Jamb Modification)

• Product Specifications:

  Vendor		Trine Access Technology
  Manufacturer		Trine
  SKU		4100 US10B
  UID		TRI1004100US10B
  Installation		Commercial
  Unit of Measure		Each
  Base Material		Stainless Steel
  Limited Warranty		1 Year
  Fire Rated		3 Hours {A}

  Technical Specifications:

  Function		Electrically Unlocked (Fail Secure)
  Operating Voltage		12VACDC 24VACDC
  Amp Draw		.21-.42 .24-.114
  Keeper Size		3 4 In.
  Configuration		Centered
  Faceplate Size		4-7 8 In. X 1-1 4 In.
  Switch Type		None
  Product Type		Electric Strikes
