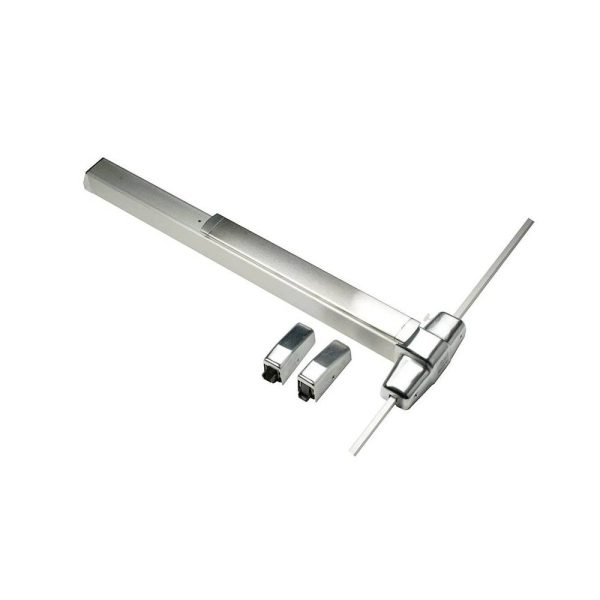

Von Duprin – 9827L – Surface Vertical Rod Exit Bar – Wide Stile Pushpad – 36 – Night Latch Function – 07 Lever with Escutcheon – Satin Brass Finish – Grade 1

9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.

Features:

• Device functions: Device ships EO DT NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 2 2 (610 mm) Door size (shipped less UL label) 3 2 4 to 3 (711mm to 914 mm) Door size 4 2 10 to 4 (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 8 (1006 mm)
• Center case dimensions: 8 x 2 3 4 x2 3 8 (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1 4 x 2 1 4 (57mm x 57mm)
• Projection: Pushbar neutral – 3 13 16 (97 mm) Pushbar depressed – 3 1 16 (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 8 (16mm) throw
• Door undercut 1 4 (7mm) recommended
• Top & bottom Latch case: 4 1 2 x 2 1 8 x 1 1 2 (114mm x 54mm x 38mm)
• Vertical rods: 1 2 square tubing, standard rods accommodate 7 (2134mm) doors. Top rod length: 34 15 16 (887mm); Bottom rod length: 31 1 2 (794mm) Extension rods available in 1 (205mm) or 3 (914mm) for doors over 7 . One piece top rod is available for 8 (2438mm) and 10 (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3 4 (44mm) to 2 1 4 (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

• Product Specifications:

  Vendor		Allegion
  Manufacturer		Von Duprin
  SKU		9827L-NL-07 3 US4 RHR
  UID		VON1009827LNL073US4RHR
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  UL Listing Type		UL 305
  ANSI Number		A156.3 2014, Grade 1
  Restrictions		None
  BAA Qualified		Yes

  Technical Specifications:

  Physical Appearance		Wide Stile Pushpad
  Device Type		Surface Vertical Rod
  Mechanical Function		Night Latch
  Device Length		36
  Hand		Field Reversible
  Dogging Options		Hex Key Dogging
  Top Strike		299
  Strike Bottom		248L4 304L
  Includes Trim		Yes
  Trim Type		Lever
  Trim Design		Lever with Escutcheon
  Trim Part No.		996L-NL-07-R V US4
  Includes Cylinder(s)		No
  Cylinder Type		Rim
  Minimum Stile Size		3-11 16
  Door Material		All Types
  Door Width		28 – 36
  Door Height		84
  Door Thickness		1-3 4
  Fire Rated		No
  Reversible		Yes
  Product Type		Surface Vertical Rod Exit Devices
