Description

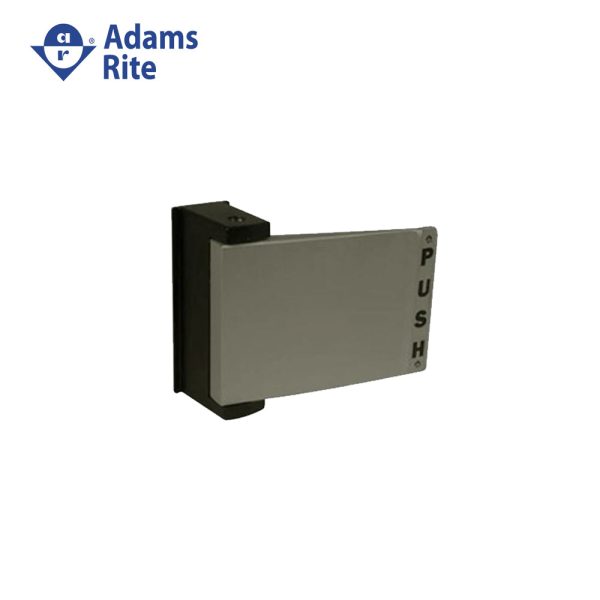

Adams Rite – 4590-04 – Flat Deadlatch Paddle for 1-3 4 Thick Doors with Push to Right and Interior Left-Hand Reverse or Exterior Right-Handed – 313 (Dark Bronze Anodized Aluminum)

The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock Latch, or 2190 2290 Interconnected Deadbolt Deadlatch.

Features:

• Function: An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock Latch, or 2190 2290 Interconnected Deadbolt Deadlatch.
• Operation: Available in four modes: push to left, push to right, pull to left, and pull to right.
• Specifications:
• Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized and 335 Black Anodized are also available.
• Escutcheon: Zinc alloy with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
• Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock Latch or 2190 2290 Interconnected Deadbolt Deadlatch. Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.
• Options: First dash number specified operation (handing) and compatible latch. Second dash number can be used to specify non-standard units for doors thicker than 1-3 4”. See dash table on catalog page.
• Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug. Shipping weight: 1-1 2 lb.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Adams Rite
  SKU		4590-04-00-313
  UID		ADA10045900400313
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  Base Material		Aluminum
  BAA Qualified		Yes
  Limited Warranty		5 Years

  Technical Specifications:

  Lever Knob Design		Flat Paddle
  For Use With		4300, 4500 and 4900 Series
  Door Thickness		1-3 8 – 1-3 4
  Screws		Machine
  Product Type		Aluminum Door Trim

  Installation Instructions:

  • 4590 Deadlatch Paddle Installation Instruction

  • Additional information

  Title	Default Title
