Description

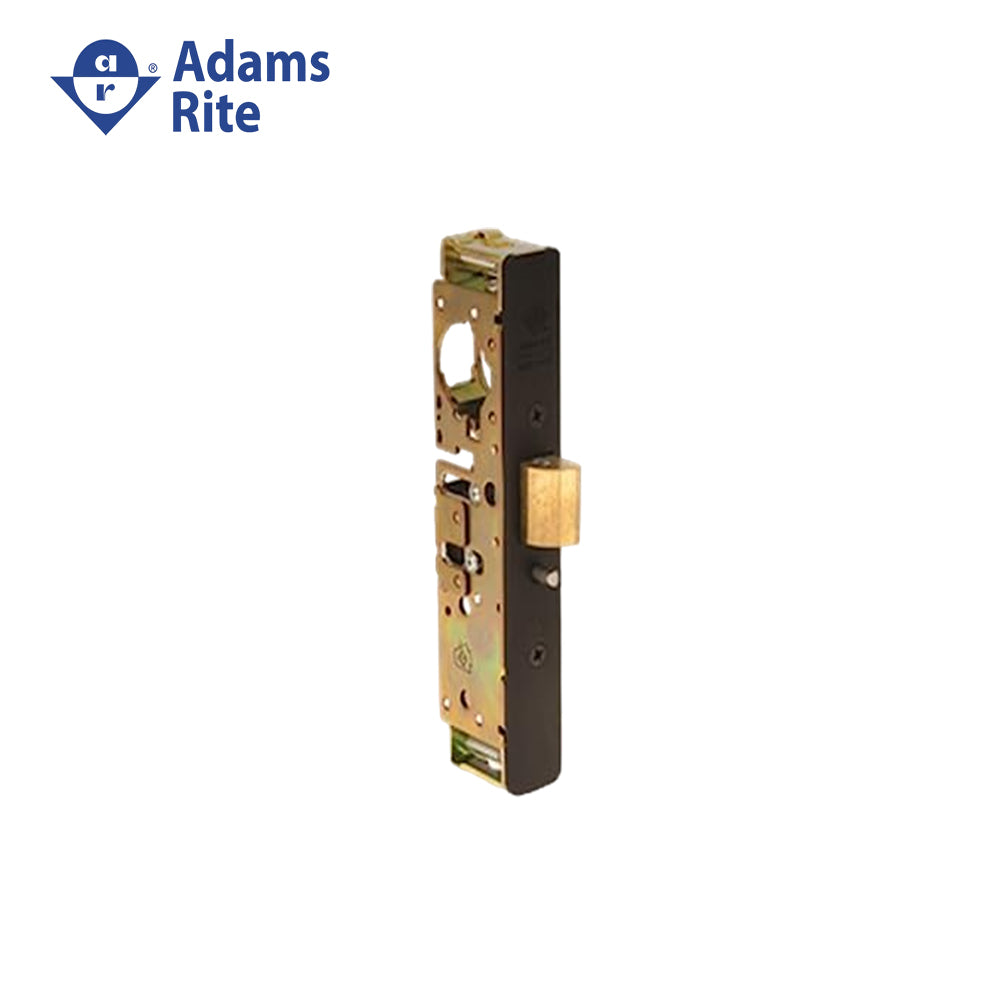

Adams Rite – 4900-36 – Heavy Duty Deadlatch Flat Faceplate with 1-1 8 Backset and 2-5 8 Flat Mortised Strike – 313 (Dark Bronze Anodized Aluminum)

4900 Heavy Duty Deadlatch Flexible traffic control and easy installation. A reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for applications which require free entrance at certain times and exit-only at other times.

Features:

• Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
• Cylinder Backset: 31 32”, 1-1 8”, or 1-1 2”
• Case: Measures 7 8” x 5-13 16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.
• Latchbolt: 5 8” x 1” x 5 8” throw. Solid brass. Handing is easily reversible using only a screwdriver.
• Auxiliary Latchpin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Faceplates: Measures 1” x 6-7 8”. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.
• Strikes: Standard strike furnished is 4902 for flat jamb where door closes flush or nearly flush. Specify 4901 for retrofit installations. Also available: radius strike for opposite stile in paired doors and long lip strikes for centerhung doors.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
• Options: Backset, strike, and finish must be specified when ordering. For information on handles, paddles, and lever operators, see TRIM. See ELECTRIC STRIKES for compatible access control products. See 4920AN Heavy Duty Deadlatch (ANSI Size) for wood and hollow metal door applications.
• Standard Package: Individually boxed with flat and radius faceplates, strike, and machine screws for mounting. Order cylinders, paddles, handles, or lever operators separately. Shipping weight: 1-1 4 lbs.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Adams Rite
  SKU		4900-36-201-313
  UID		ADA100490036201313
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  Base Material		Aluminum
  BAA Qualified		Yes
  Limited Warranty		5 Years

  Technical Specifications:

  Function		Narrow Stile Latch Lock
  Cylinder Type		Less Cylinder
  Handing		Field Reversible
  Door Thickness		1-3 4 – 2
  Std. Latch Type		Dead Latch (Guarded)
  Std. Latch Backset Dim		31 32
  Lock Face Size		6-7 8 x 1
  Bolt Projection		5 8
  Std. Strike Number		4902-01
  Std. Strike Type		Mortise
  Std. Strike Height		2-5 8
  Std. Strike Width		1-9 16
  Dust Box		Plastic
  Screws		Machine
  Product Type		Mortise Lock

  Installation Instructions:

  • 4900 Series Heavy Duty Deadlatch Installation Instructions
