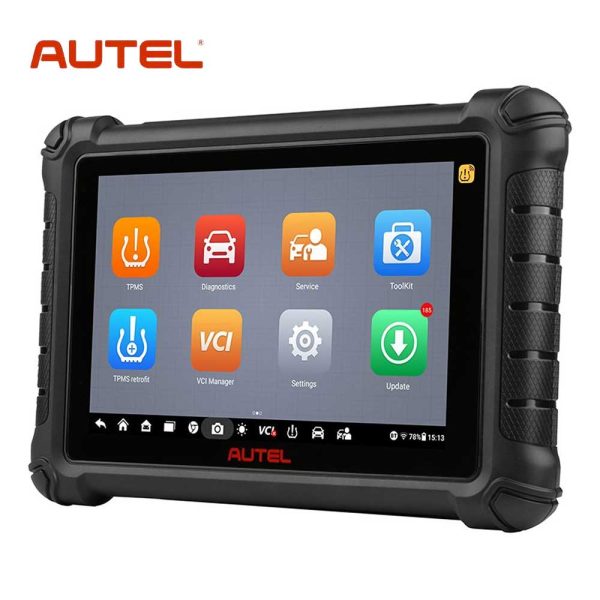

Autel MaxiTPMS TS900 Comprehensive TPMS Diagnostics and Wireless Touchscreen Tablet

The TS900 offers advanced diagnostics, comprehensive TPMS, and an extensive one-touch service menu. The MaxiTPMS TS900 is an 8-inch TPMS, Diagnostics and Service, touchscreen tablet. The TS900 can activate, read and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel Bluetooth-TPMS sensors (BLE-A001), preprogrammed for Tesla models and programmable for BLE-equipped vehicles. Diagnostic functions include all systems Pre Post Scans, bi-directional Active Tests, and Special Functions. Quickly execute 38-plus service functions. TS900 offers an advanced processor, 4GB operating memory, and 64 GB storage memory and runs on Android 11.

Features:

• Comprehensive coverage for TPMS
• Program AUTEL MX-Sensors to replace 99% of TPMS sensors on the vehicles on the road today.
• Industry-leading Relearn-by-OBD vehicle coverage.
• Compatible with 315MHz, 433 434MHz and 2.4GHz (BLE) frequency TPMS sensors.
• Cover U.S., European, and Asian vehicles, 1996 and newer to provide professional diagnostic service.
• Support all system diagnostics (including Read and Erase codes, View Freeze Frame data, View and Graph Live Data, and Perform bi-directional Active Tests and Special Functions).
• Extensive Service Menu with direct access to over 38+ maintenance services.
• Supports the latest communication protocols, including CAN FD DoIP.
• Generate Detailed Pre- and Post-Scan Reports. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
• Auto-VIN technology automatically identifies vehicle make, model, and year.
• 8-inch touchscreen with 1024 x 600 resolution display and 8-megapixel rear camera.
• 64GB onboard memory for fast processing and access to the software.
• Android 11 operating system for fast boot-up and operation speed.

• Specifications:

  Item			Description
  Tablet		Recommended Use		Indoor
  	Operating System		AndroidTM 11
  	Processor		Quad-Core (1.8 GHz)
  	Memory		4 GB RAM & 64 GB ROM
  	Display		8-inch LCD screen with 1280 x 800 resolution
  	Rear Camera		8 MP
  	Connectivity		• Wi-Fi • USB 2.0, Type C • BT • Mini SD Card (supports up to 64 GB)
  	Sensors		Ambient light sensor for brightness auto changing
  	Audio input output		Input: N A Output: buzzer
  	Power and Battery		• 3.7 V 7700 mAh lithium-polymer battery • Charges via 5 V DC power supply
  Tested Battery Life		Around 7 hours of continuous use
  Battery Charging Input		5 V 3 A
  Power Consumption		Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
  Operating Temp.		0 to 50 °C (32 to 122 °F)
  Storage Temp.		-10 to 60 °C (14 to 140 °F)
  Operating Humidity		5% to 95% non-condensing
  Dimensions (W x H x D)		1259.87 mm (10.23”) x 168.98 mm (6.65”)  x 33.60 mm (1.32”)
  Net Weight		998 g (2.2 lbs)
  Protocols		ISO9141-2, ISO14230-2, ISO15765, K L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD
  V150		Communication		BR + EDR
  	Wireless Frequency		2.4 GHz
  	Input Voltage Range		8 to 30 V DC
  	Supply Current		150 mA @ 12 V DC
  Operating Temp.		0 to 50 °C (32 to 122 °F)
  Storage Temp.		–10 to 60 °C (14 to 140 °F)
  Dimensions (L x W x H)		77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”)
  Weight		51.5 g (0.11 lbs)

  Comparison:

  		MaxiTPMS TS900		MaxiTPMS TS608		MaxiTPMS ITS600 ITS600 PRO		MaxiTPMS TS508WF
  TPMS Function
  Easy Vehicle Identification		Auto-VIN Auto-Scan Plate Scan Image Scan   Manually Select&Input		Auto-VIN Auto-Scan Manually Select&Input		Auto-VIN Auto-Scan Plate Scan Image Scan   Manually Select&Input		Manually Select
  Active&Programming&Relearn BLE TPMS Sensors		√		×		√		×
  Active&Programming&Relearn RF(315 433MHz) TPMS  Sensors		√		√		√		√
  TPMS Diagnostics		Enhanced TPMS status screen		Enhanced TPMS status screen		Enhanced TPMS status screen		TPMS status screen
  Relearn Procedure		4 Methods		4 Methods		4 Methods		4 Methods
  Autel RF TPMS Sensor Batch Programming		Up to 20 Sensors		Up to 16 Sensors		Up to 20 Sensors		Up to 16 Sensors
  Programming Methods		4 Methods MX-Sensors Only		4 Methods MX-Sensors Only		4 Methods MX-Sensors Only		4 Methods MX-Sensors Only
  Check MX-Sensor Information (ID, Battery, etc.)		√		√		√		√
  Tire Pressure Placard Value Reset		√		√		√		√
  Read Clear Codes for TPMS System		√		√		√		√
  Test Report		√		√		√		View On PC
  Diagnostic function
  All System Diagnostics		√		√		ITS600: OLS, SAS, BMS, EPB ITS600 PRO: All System Diagnostics
  All Maintenance Service		38+ Service Functions		36 Service Functions		ITS600: 4 Service Functions ITS600 PRO: 36 Service Functions
  Battery Analysis		×		×		√		×
  Hardware
  Connection		Bluetooth VCI-150		Bluetooth MaxiVCI-Mini		Bluetooth VCI-200		OBD II Cable
  Screen		8-inch Touchscreen 1280*800 Pixel		7-inch Touchscreen 1024*600 Pixel		5.5-inch Touchscreen 1280*720 Pixel		2.8-inch Display 320*240 Pixel
  Battery		7700mAh		5000mAh		5000mAh		3000mAh
  Processor		Quad-Core (1.8 GHz)		Quad-Core (1.6 GHz)		Quad-Core (1.5 GHz)
  Memory		64G ROM 4G RAM		64GB ROM 1GB RAM		64GB ROM 1GB RAM
  Camera		8.0MP				8.0MP
  Software
  Operation system		Android 11		Android 4.4.2		Android 9.0		Easy Tool Navigation
