Description

Autel – MaxiVideo MV105S – 5.5 mm – Digital Portable Inspection Camera for MS906PRO and MS906BT

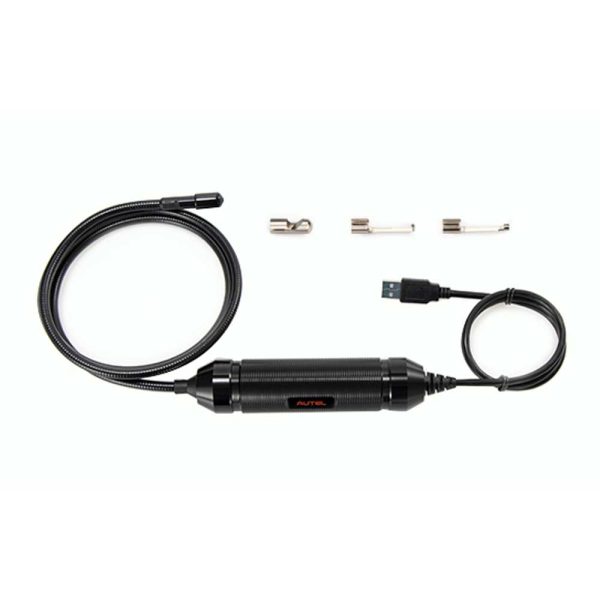

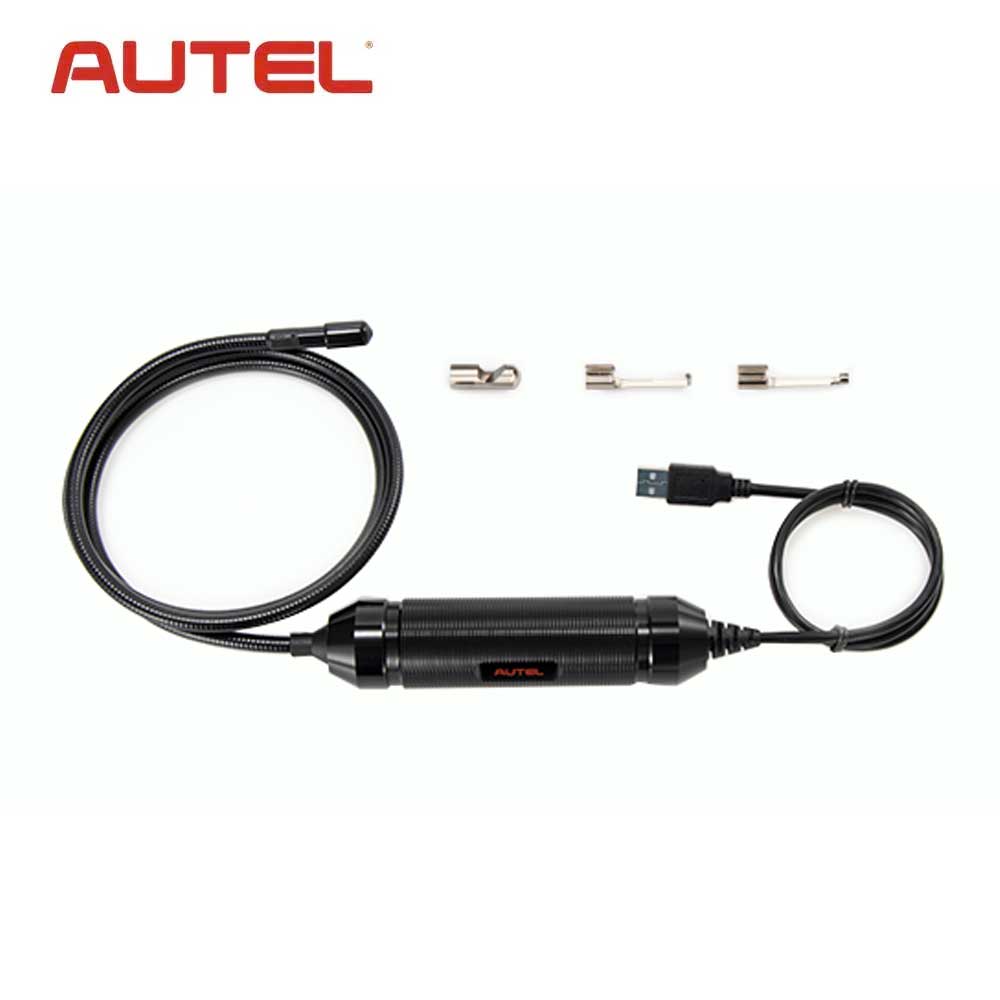

The MV105S 108S digital inspection camera is designed to work with Autel diagnostic tablets. It turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

Description:

• White LED lights to illuminate the inspection areas.
• Small diameter allows it to be used in the tight spaces.
• Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
• Powerful and perfect for inspecting most spark plug holes.
• Super bright LED and high resolution provide crystal clear images.

• Specifications:

  Imager Head Distance		MV108S: 8.5 mm; MV105S: 5.5 mm
  Camera		MV108S: 2 MP; MV105S: 1 MP
  Resolution		MV108S: 1920 x 1080
  MV105S: 1280 x 720
  Depth of Field		MV108S:   3cm to 8cm (1.18” to 3.15”)
  MV105S: 2cm to 10cm (0.79” to 3.94”)
  LED Beads		8 pcs
  Imager Head Cable Length		1 m (39.37 )
  Waterproof Level (Imager Head)		IP67
  Operating Temp.		-10 °C to 70 °C (14 °F to 158 °F )
  Storage Temp.		-10 °C to 70 °C (14 °F to 158 °F )

  Comparison:

  		MV108S		MV105S		MV108		MV105
  Imager head distance		8.5mm		5.5mm		8.5mm		5.5mm
  Depth of field		3~8cm		2~10cm		2~6cm		2~6cm
  Angle of view		81°		90°		70°		70°
  Imager head cable length		1m		1m		1m		1m
  Camera		2MP		1MP		0.3MP		0.3MP
  Connection		USB2.0		USB2.0		USB2.0		USB2.0
  Waterproof level (Imager head)		IP67		IP67		IP67		IP67
  Operating Temp.		（-10℃~70℃）		（-10℃~70℃）		（-10℃~70℃）		（-10℃~70℃）
  Storage Temp.		（-10℃~70℃）		（-10℃~70℃）		（-10℃~70℃）		（-10℃~70℃）
  Reflector		Yes		Yes		Yes		Yes
  Magnet		Yes		Yes		Yes		Yes
  Hook		Yes		No		Yes		No

  Downloads:

  • MV105S & MV108S Quick Start Guide
