Description

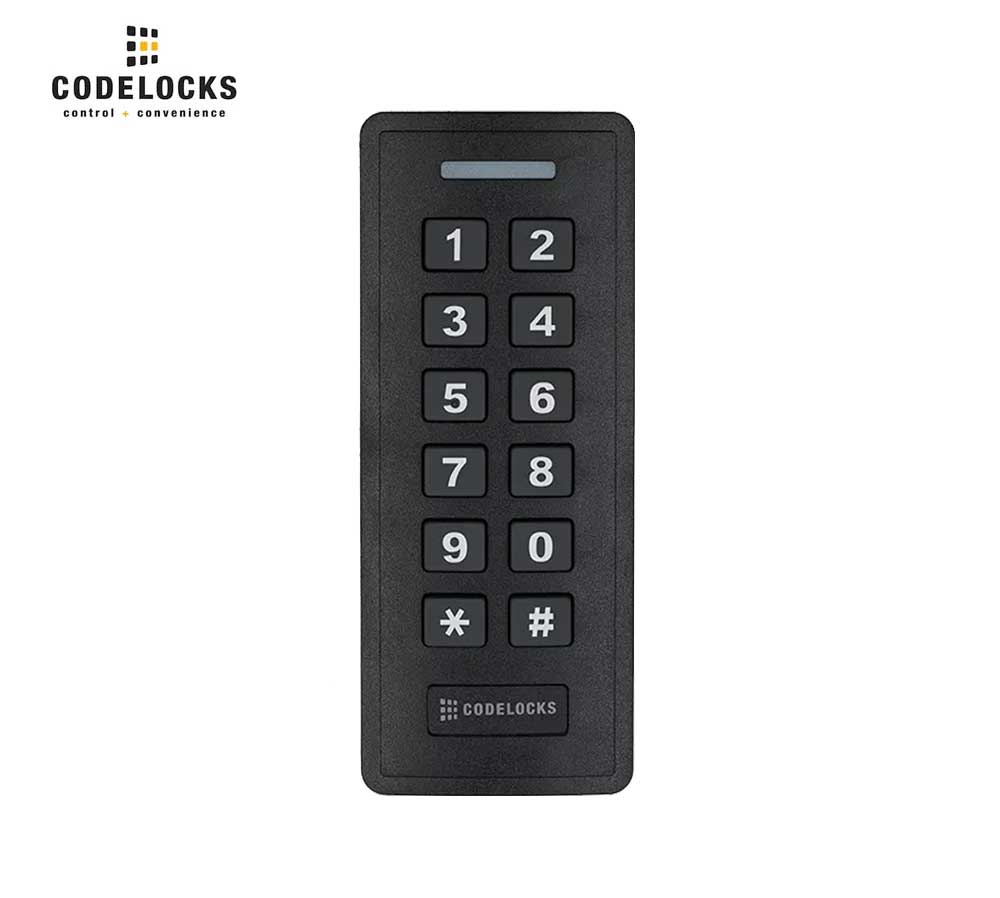

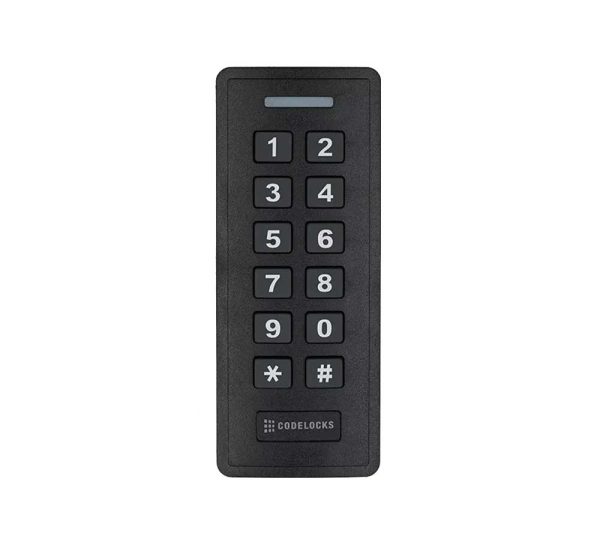

Codelocks A3 Dual Standalone Door Controller with RFID

A3 Door Controllers- from Access by Codelocks. Compact, standalone programmable door controllers with RFID functionality. Featuring three models, each bringing unique qualities to the range, the A3 door controllers provide a compact, affordable proximity access control system allowing flexible entry for up to 1000 users.
The A3 Dual MIFARE® compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 600 users, including two Panic Clients.
Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorized persons gaining access, as well as keys going missing. The A3 Dual door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.

Features:

• MIFARE® compatible
• Configurable penalty time
• Anti-tamper sensor
• LED status indicators
• Surface mount
• Alarm connections
• Conforms to IP66 rating

• Technical Specifications:

  Buttons		2 x 6
  Clients – Smart Cards		Up to 600
  IP Rating		IP66
  Keypad		12 Individual Buttons
  Finish		Black
  Material		Zinc Alloy
  Lock Dimensions		2 x 4 1⁄16 x 5⁄8
  Orientation		Vertical
  Suitable		Internal, External
  Supported Cards		MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO IEC 14443 A 1-3
  Voltage		12-28V DC
  Idle Current		35mA
  Working Current		100mA
  Inputs Outputs		Relay, Push-to-Exit, Alarm, Door Contact, Wiegand Input, Wiegand Output
  Wiegand		Input Output: 26-37 Bits PIN Output: 4 Bits, 8 Bits (ASCII), 10 Digits Virtual Number (4 Bits default)
  Read Range		60mm (2 3⁄8”)
  Temperature		-40°C ~ 60°C (-40°F ~ 140°F)
  Humidity		10%RH ~ 98%RH
  Dimensions		2 x 4 7⁄8 x 3⁄4
  User Levels		Master, User, Panic
  User Types		Card, Code

  Download:

  • A3 Door Controller Brochure
  • Getting Started Guide
  • Installation Template
