Description

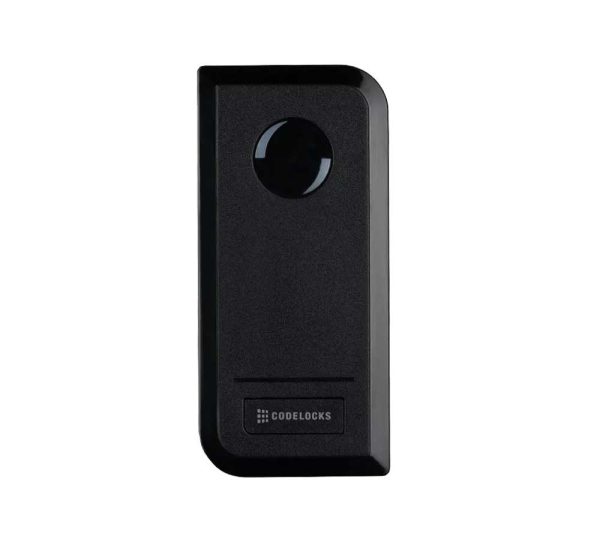

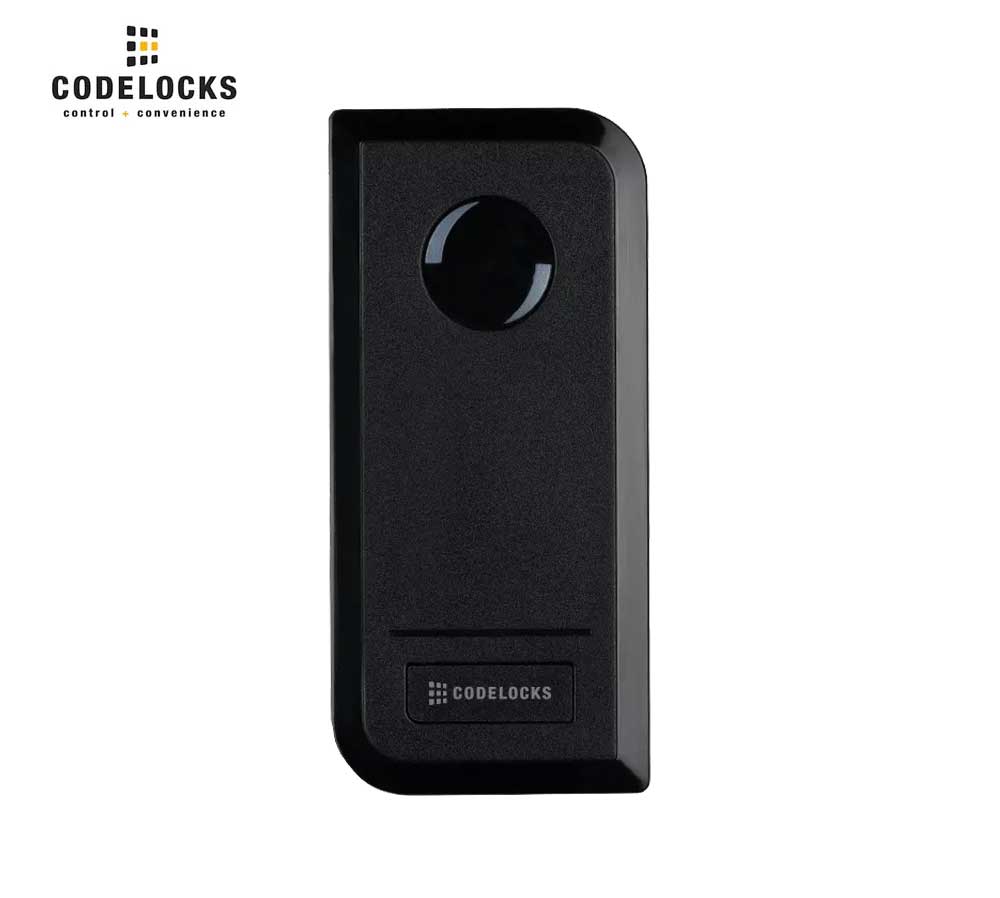

Codelocks A3 Standalone Door Controller with RFID

A3 Door Controllers- from Access by Codelocks. Compact, standalone programmable door controllers with RFID functionality. Featuring three models, each bringing unique qualities to the range, the A3 door controllers provide a compact, affordable proximity access control system allowing flexible entry for up to 1000 users.
The A3 RFID MIFARE® compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 1000 users.
Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorised persons gaining access, as well as keys going missing. The A3 RFID door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.

Features:

• MIFARE® compatible
• Configurable penalty time
• Anti-tamper sensor
• LED status indicators
• Surface mount
• Flush or surface mount options
• Conforms to IP66 rating

• Technical Specifications:

  Buttons		2 x 6
  Clients – Smart Cards		Up to 1000
  IP Rating		IP66
  Keypad		12 Individual Buttons
  Finish		Black
  Material		Mixed Plastic and Alloy
  Lock Dimensions		2 x 4 1⁄16 x 5⁄8
  Orientation		Vertical
  Suitable		Internal, External
  Supported Cards		MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO IEC 14443 A 1-3
  Voltage		12-24V DC
  Idle Current		20mA
  Working Current		80mA
  Inputs Outputs		Relay, Push-to-Exit
  Wiegand		Input Output: 26-37 Bits PIN Output: 4 Bits, 8 Bits (ASCII), 10 Digits Virtual Number (4 Bits default)
  Read Range		60mm (2 3⁄8”)
  Temperature		-30°C ~ 60°C (-22°F ~ 140°F)
  Humidity		10%RH ~ 98%RH
  Dimensions		2 x 4 7⁄8 x 3⁄4
  User Types		Card

  Download:

  • A3 Door Controller Brochure
  • Getting Started Guide
  • Installation Template
