Description

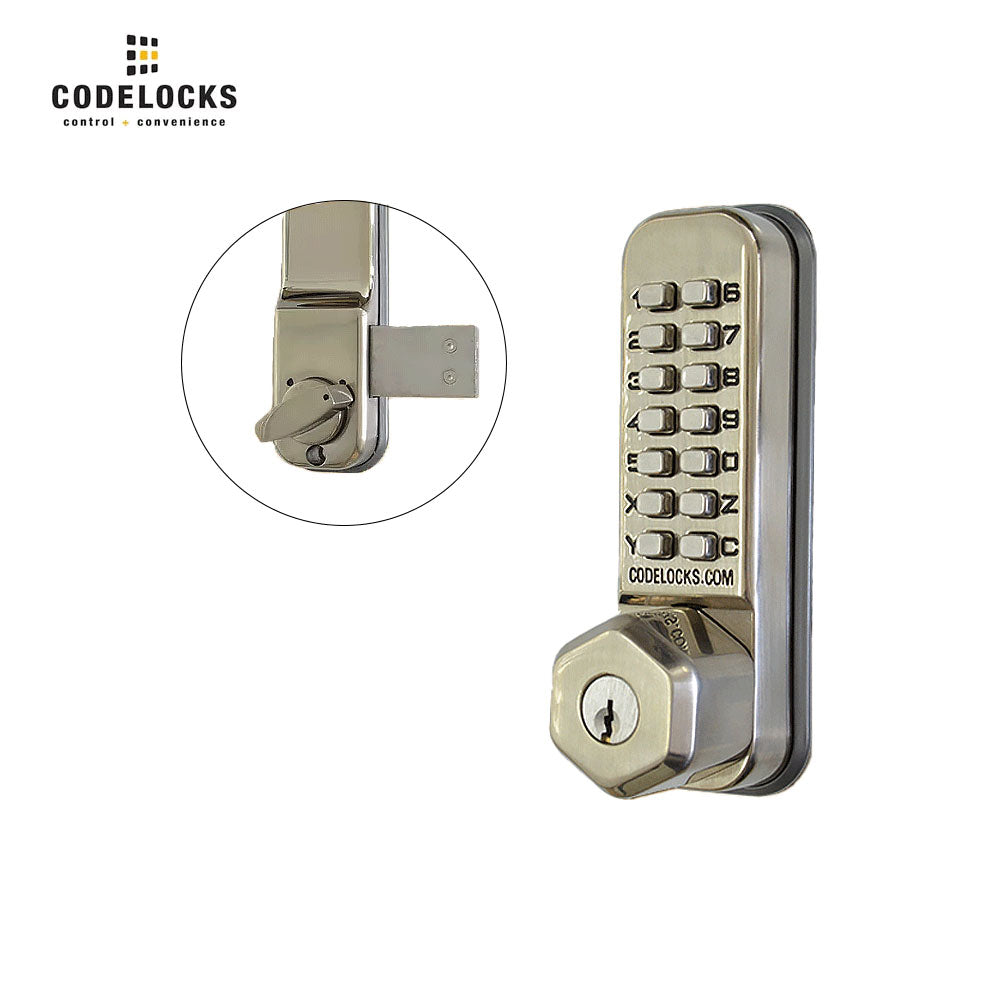

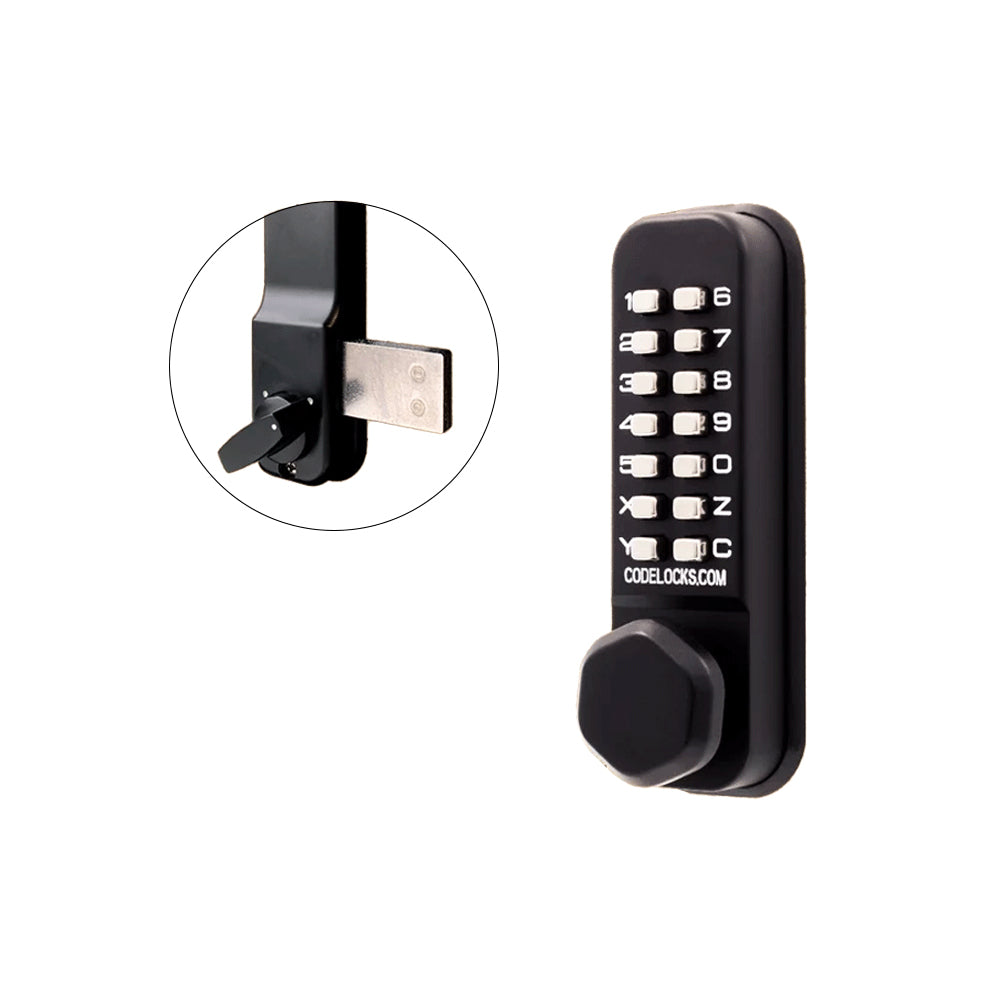

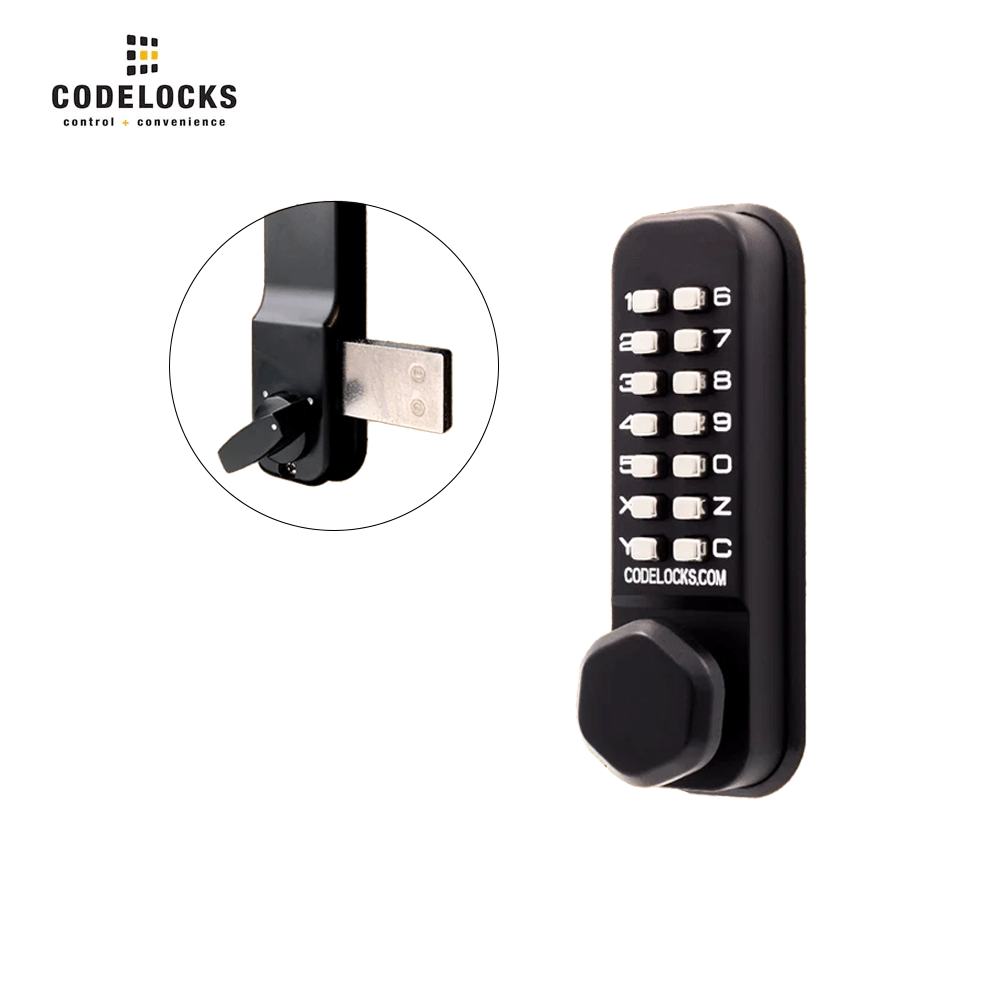

Codelocks CL200 Mechanical, Light Duty, Grade 2, 2 3 8 – 2 3 4 Backset, Surface Deadbolt with Key Override Feature and Optional Finish

CL200 Mechanical Range – premium range of light duty mechanical locks. Multiple options available, including key override, suitable for a wide range of applications.
The CL200 completes the Codelocks Mechanical series. It s the same reliable, lightweight CL200, but specially enhanced to withstand harsh outdoor environments and coastal applications.
The CL200 is a light duty surface deadbolt. The bolt slides on the inside surface of the door to lock or unlock. The bolt is moved manually be means of the outside knob after the code is entered, and freely by the inside knob at all times.

Features:

• Mechanical Codelock
• Light duty surface deadbolt
• Hexagonal beveled handle and lock case
• Available in stainless steel
• Use in offices schools warehouses hospitals care homes nurseries hotels leisure facilities the home

• The CL200 mechanical locks are supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order.

  Technical Specifications:

  Buttons		2 x 7
  Code Change Method		Tumblers (Off Door)
  Codes		Single Code Storage – 8,191 Non-Sequential Combinations Available
  Door Thickness		1 3⁄8 – 2 3⁄8 (35mm – 60mm)
  Finish		Stainless Steel, Marine Grade Black
  Keyed Alike		Available
  Handed		Non-Handed – Locks will Fit Doors Hung on the Left or Right
  Keypad		14 Individual Stainless Steel Buttons
  Key Override		Yes
  Lock Material		Zinc Alloy
  Latch Type		Surface Deadbolt – 2 3⁄4 or 2 3⁄8
  Orientation		Vertical
  Spindle		Flat Spring Loaded Spindle
  Suitable For		Internal, External
  User Types		Code

  Download:

  • Installation Instructions
  • Code Change Instructions
  • Brochure

  • Additional information

  Color	Stainless Steel, Marine Grade Black
