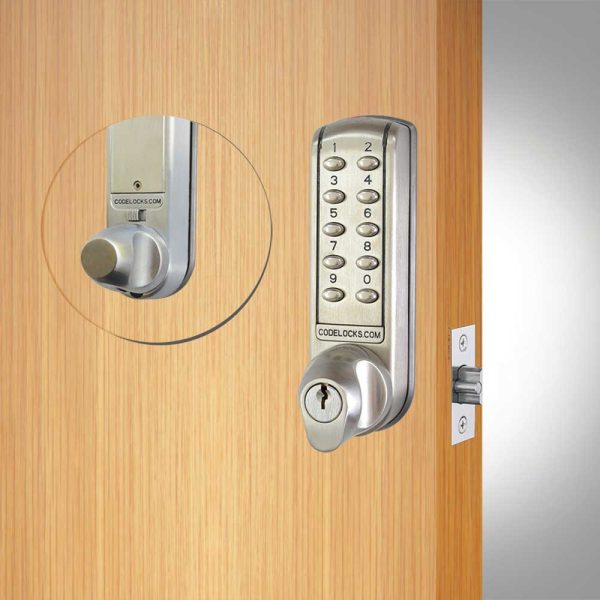

Codelocks CL2255 Electronic Tubular Brushed Steel Mortise Latch with Dual Backset

CL2000 Electronic Range fit as a new install or as a quick retrofit when upgrading from basic single code mechanical locks. CL2000 electronic locks are ideal for a wide range of light duty access control applications. The CL2000 is fully programmable on the door via the keypad with a multiple range of functions.
The CL2255 is a medium duty tubular mortise latch electronic lock. The outside knob turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights burn, the knob will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. Code Free Mode can be programmed at the keypad using the Master Code.

Features:

• Tubular mortise latch
• Rapid retrofit for basic single code mechanical locks
• On door programming via Master Code in seconds
• Allows up to 80 User Codes
• Allows up to 10 One-Time User Codes
• Over 80,000 operations from 2 x AA cells (supplied)
• Non handed
• PVD low maintenance finish
• Key override as standard
• The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long
• Programming is via the keypad, using the Master Code
• The lock has fitted as standard two alarm release terminals:
• • REM1 is used to open the lock from a reception desk button or answer phone
  • REM2 can be linked to an alarm system which, when activated by a momentary contact, will release the door for 30 minutes. This allows emergency personnel to enter the room to rapidly check that no one has been trapped and overlooked

  • Technical Specifications:

    Buttons		2 x 5 + Programming
    Code Change Method		Keypad (On Door)
    Codes		User Codes 4, 5 or 6 Digits Long
    Door Thickness		1 3⁄8 – 2 3⁄8 (35mm – 60mm)
    Finish		Brushed Steel
    Handed		Non-Handed – Locks will Fit Doors Hung on the Left or Right
    Keypad		10 Individual Stainless Steel Buttons
    Latch Type		Mortise Latch
    Lock Material		Zinc Alloy
    Low Battery Warning		Red LED will Flash on Opening to Indicate Low Battery
    Memory		Stores up to 80 User Codes
    Operations		Up to 80,000 Operations Per 2 x 1.5v AA Batteries
    Orientation		Vertical
    Power		2x AA
    Spindle		Flat Bar Spindle, 5⁄16 (8mm) Adaptor Supplied
    Suitable For		Internal, External
    User Types		Code

    Download:

    • CL2255 – Installation Instructions
    • CL2255 – Installation Template
    • CL2000 – Brochure
    • CL2000 – Programming and Operating Instructions
