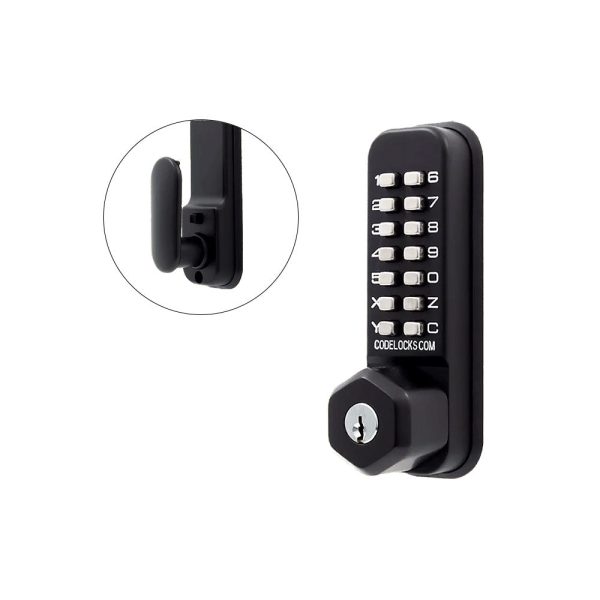

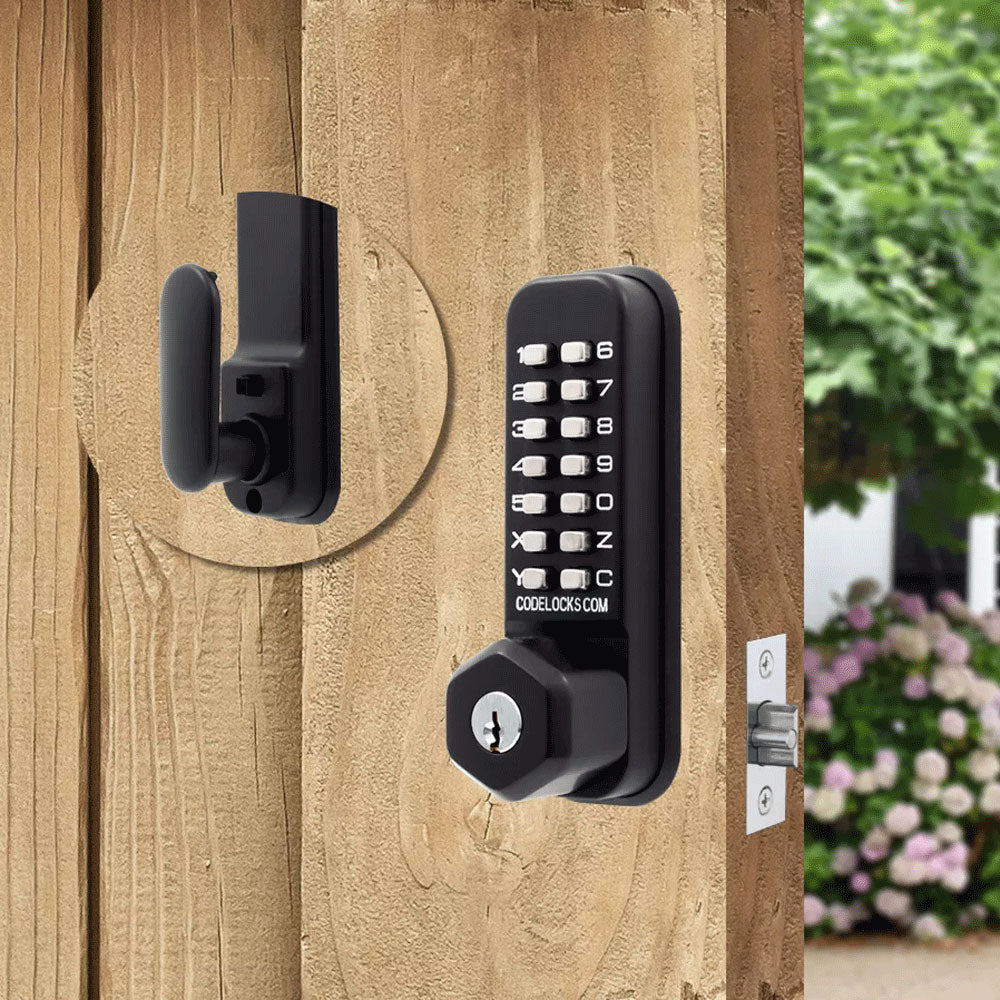

Codelocks CL255 Mechanical, Light Duty, Marine Grade Black, 2 3 8 – 2 3 4 Backset, Tubular Mortise Latchbolt with Key Override and Holdback Feature

CL200 Mechanical Range – premium range of light duty mechanical locks. Multiple options available, including key override, suitable for a wide range of applications.
The CL200 completes the Codelocks Mechanical series. It s the same reliable, lightweight CL200, but specially enhanced to withstand harsh outdoor environments and coastal applications.
The CL255 is a light duty lock that utilizes a tubular latch. The latch is spring loaded and will latch automatically when the door is closed. The deadlocking plunger on the latchbolt prevents the latch from being shimmed open. The slide button on the backplate of the lock can be used to hold the latchbolt in a retracted position. When in use with the latchbolt retracted, the door will not latch and can be opened without requiring a code to be entered. If use of the holdback feature is not desired, it can be disabled when the lock is installed on the door.
The CL255 mechanical locks are supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order.
The Marine by Codelocks range features a selection of locks that have been specially enhanced to withstand harsh outdoor environments and coastal applications. Reliable and durable, the marine grade black finish has proven to be resistant against moisture and salt spray, following rigorous salt spray testing for up to 1000 hours.

Features:

• Salt spray tested 1000 hours*
• Durable marine grade black finish
• Specially enhanced finish for harsh environments
• Mechanical Codelock
• Hold back feature
• Light duty mortise latch with dual backplate
• Hexagonal beveled handle and lock case
• Use in offices schools warehouses hospitals care homes nurseries hotels leisure facilities the home

• Technical Specifications:

  Buttons		2 x 7
  Code Change Method		Tumblers (Off Door)
  Codes		Single Code Storage – 8,191 Non-Sequential Combinations Available
  Door Thickness		1 3⁄8 – 2 3⁄8 (35mm – 60mm)
  Finish		Marine Grade Black
  Keyed Alike		Available
  Handed		Non-Handed – Locks will Fit Doors Hung on the Left or Right
  Keypad		14 Individual Stainless Steel Buttons
  Lock Material		Zinc Alloy
  Latch Type		Tubular Latchbolt – 2 3⁄4 or 2 3⁄8
  Memory		Stores up to 80 User Codes
  Orientation		Vertical
  Spindle		Flat Spring Loaded Spindle
  Suitable For		Internal, External
  User Types		Code

  Download:

  • Installation Instructions
  • Code Change Instructions
  • Installation Template
  • Brochure
  • Marine Range Data Sheet
