Description

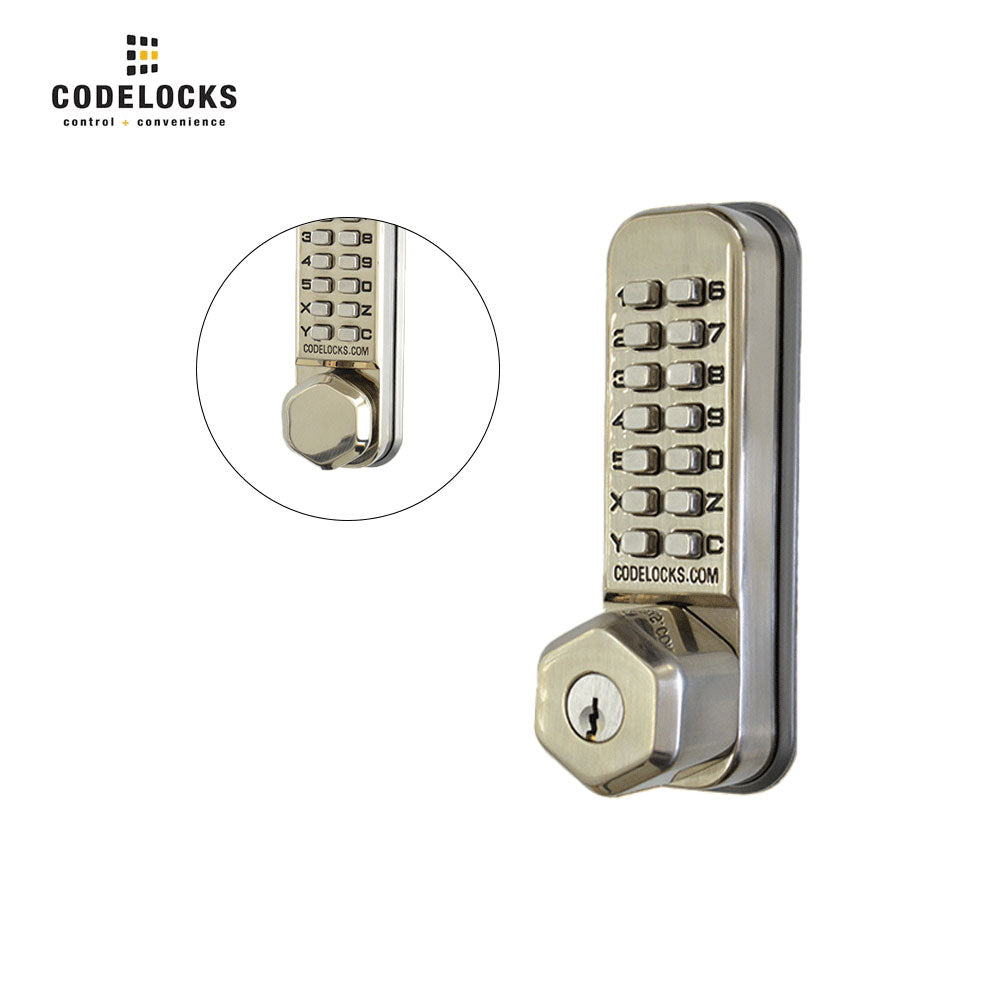

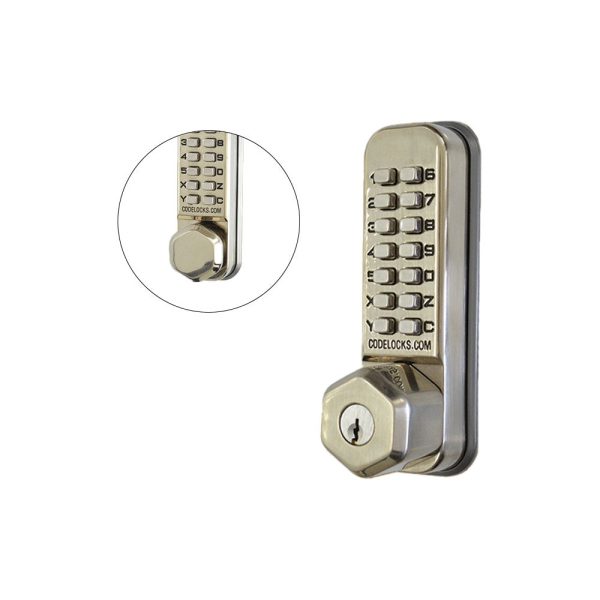

Codelocks CL290 Mechanical, Light Duty, Grade 2, Optional Finish, Back to Back, Dual Backset, Tubular Latch with Key Override

CL200 Mechanical Range – premium range of light duty mechanical locks. Multiple options available, including key override, suitable for a wide range of applications.
The CL290 is a light duty mortise latch with dual backplate. The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch.

Features:

• Allow locks to be overridden via a key
• Mechanical Codelock
• Light duty mortise latch with dual backplate
• Hexagonal bevelled handle and lock case
• Available in stainless steel
• Use in offices schools warehouses hospitals care homes nurseries hotels leisure facilities the home

• The CL290 mechanical locks are supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door.
  The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order.

  Technical Specifications:

  Buttons		2 x 7
  Code Change Method		Tumblers (Off Door)
  Codes		8,191 Non Sequential Combinations Available
  Code Storage		Single Code
  Door Thickness		1 3⁄8 – 2 3⁄8 (35mm – 60mm)
  Finish		Stainless Steel
  Handed		Non-Handed – Locks will Fit Doors Hung on the Left or Right
  Keyed Alike		Available
  Keypad		14 Individual Stainless Steel Buttons
  Latch Type		Tubular Latchbolt
  Lock Material		Zinc Alloy
  Orientation		Vertical
  Spindle		Flat Spring Loaded Spindle
  Suitable For		Internal, External
  User Types		Code
  Fire Rated		3-hour UL 10C
  Certifications		Grade 2 ANSI A156.2 A156.25, UL ULC

  Download:

  • Installation Instructions
  • Installation Template
  • Code Change Instructions
  • CL200 – Brochure

  • Additional information

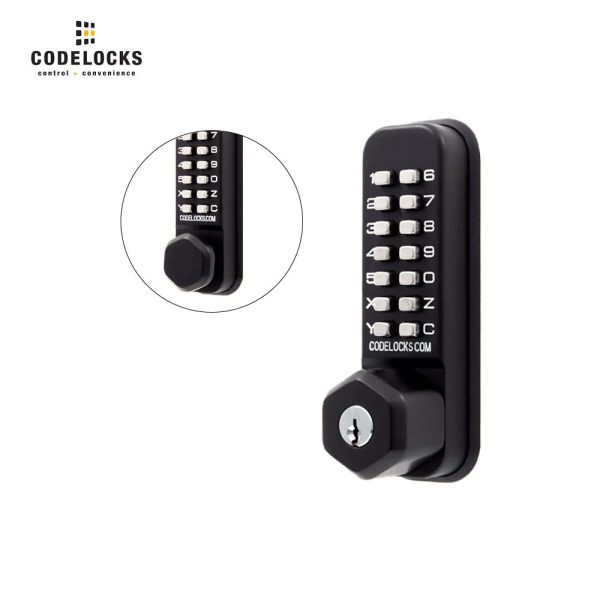

  Color	Stainless Steel, Marine Grade Black
