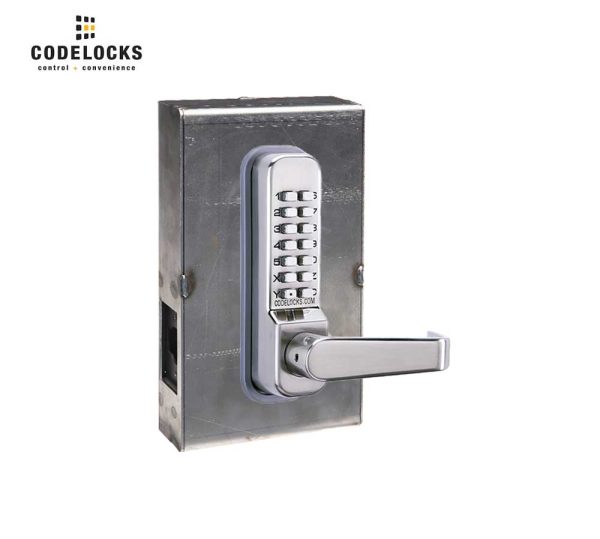

Codelocks CL415 Mechanical, Medium Duty, Optional Finish, Tubular Latchbolt Gate Box Kit

Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters outdoor spaces. Gate Box Panic Hardware Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards – any restricted area that will benefit from controlling access, commercial or residential.

Features:

• Easy, effective gate and fence installation
• Complete kits with all required components
• 14-gauge weldable steel boxes with pre-drilled fixing holes
• Supplied as raw steel, ready to paint
• Adjustable stop bracket
• Stainless steel or marine grade finish
• Back to back installation option

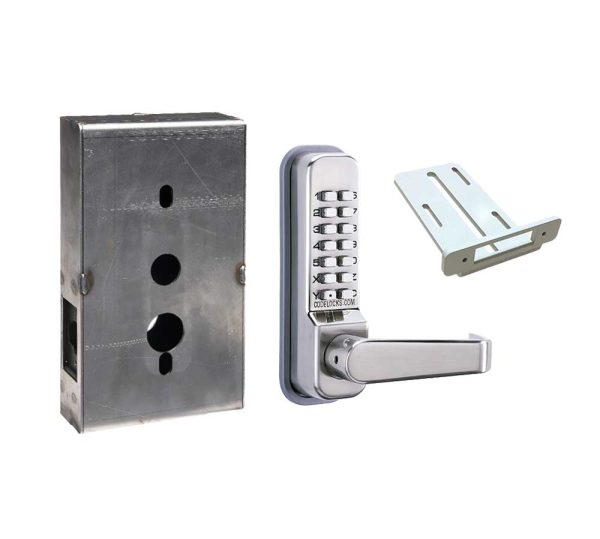

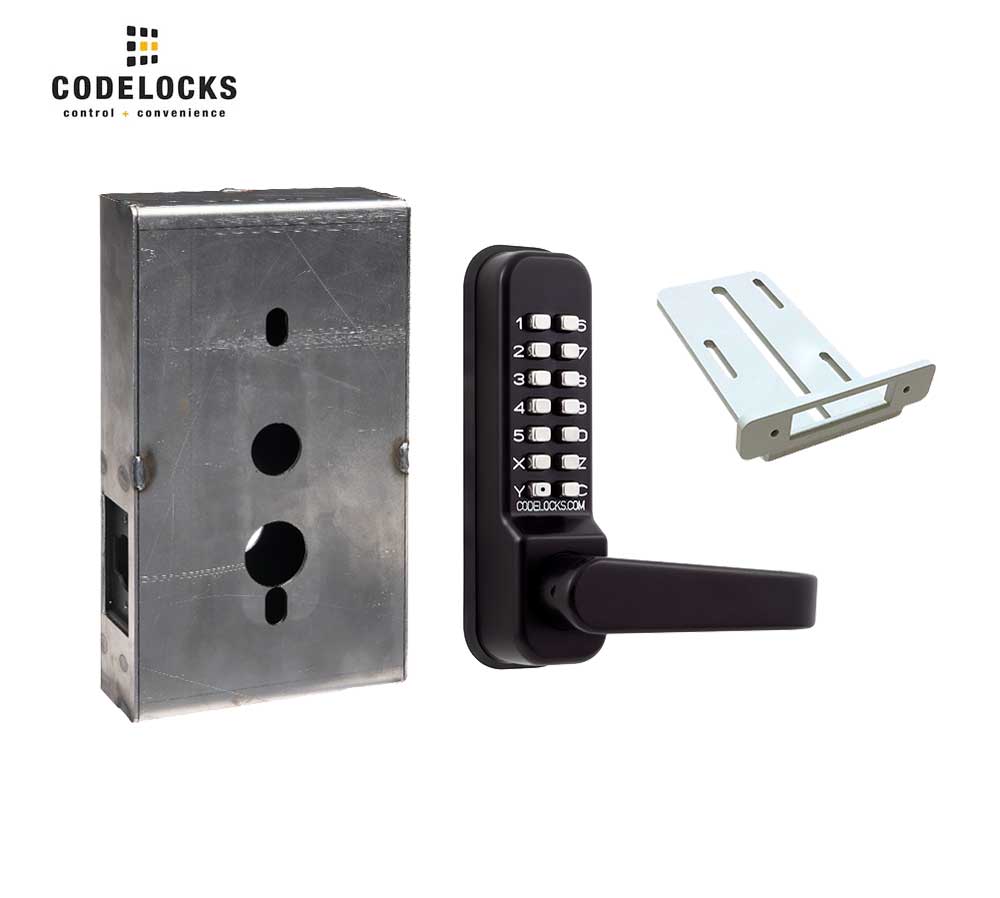

• Gate Box Kit Components:

  • CL415 Tubular Latchbolt Mechanical Codelock
  • Codelocks installation, operating programming instructions, fastening bolts and latch
  • 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
  • Adjustable stop bracket

  • About the CL415 Tubular Latchbolt Mechanical Codelock:

    Medium duty mechanical locks with full size lever handles. Ideal for use in environments where a lever operated lock would be preferred. The CL415 is a medium-duty push button tubular latch bolt. The outside lever handle will retract the latch after a correct code is entered. The spring-loaded latch bolt will lock automatically when the door is closed. It features:

    • Pushbutton mechanical lock with tubular latch
    • Single code storage
    • 8,191 non-sequential code combinations available
    • Tumbler alignment for easy code change
    • Code free passage function (CL415 only)

    • Technical Specifications:

      Gate Box Dimensions		9.5” x 5.5” x 1.75” (H x W x D)
      Gate Box Material		14-Gauge Steel
      Buttons		2 x 7
      Code Change Method		Tumblers (Off Door)
      Codes		Single Code Storage – 8,191 Non-Sequential Combinations Available

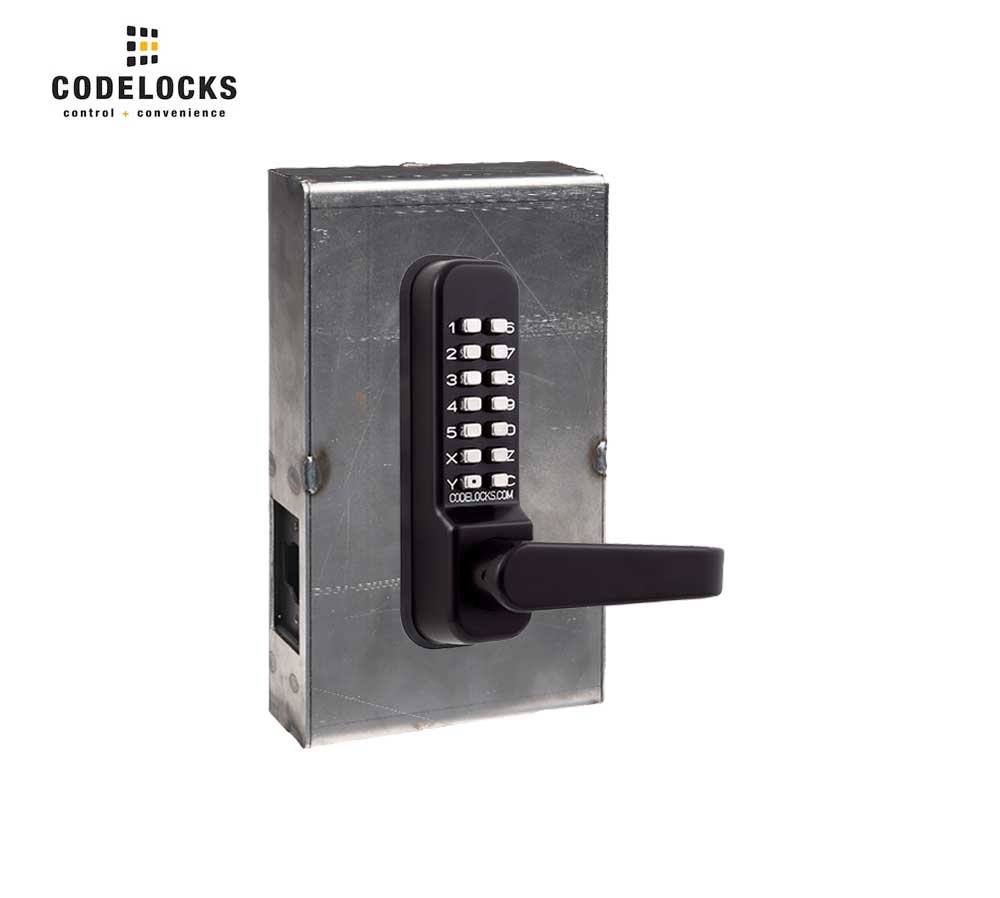

      Finish Color		Marine Grade Black, Silver
      Latch Type		Tubular Latchbolt
      Lock Dimensions		177mm (7 ) x 48mm (1 ⅞ )
      Handed		Non-Handed
      Keypad		14 Stainless Steel Buttons
      Lock Material		Zinc Alloy
      Orientation		Vertical
      Manufacturer Warranty		Limited Lifetime Warranty

      Download:

      • CL410 CL415 – Installation Template
      • CL400 – Installation Instructions
      • CL400 – Brochure
      • Gate Box Kit Installation Instructions
      • Gate Box Kits – Data Sheet
      • Gate Box Kits – Brochure
      • Adjustable Strike Bracket Installation Instructions
      • Code Change Guide

      • Additional information

      Color	Stainless Steel, Marine Grade Black
