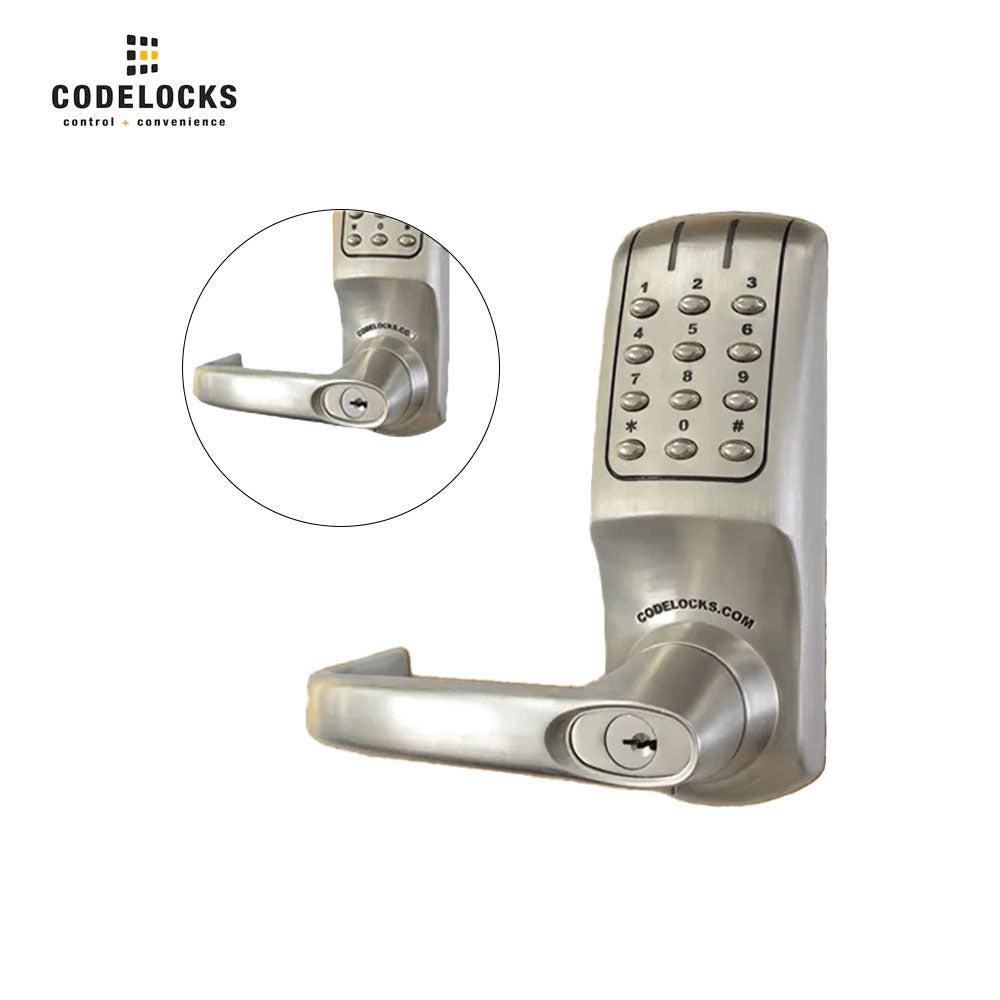

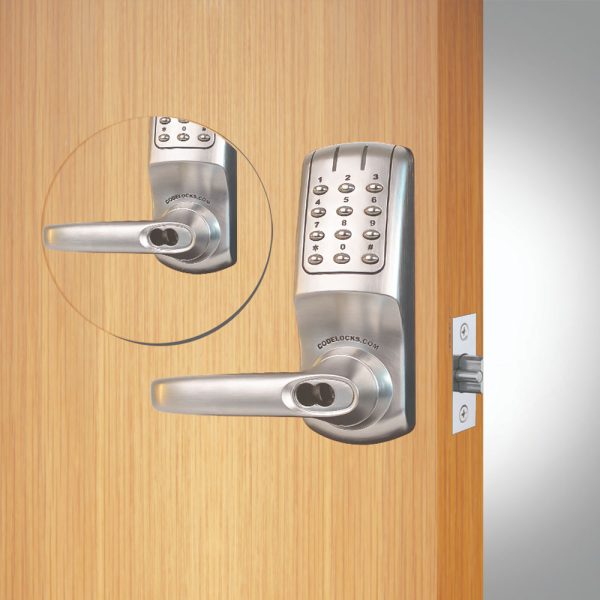

Codelocks CL5210 Electronic, Heavy Duty, Grade 2, Brushed Steel, Back to Back, Optional Backset Tubular Latchbolt with Optional Cylinder

CL5000 Electronic Range – heavy duty electronic locks for use in high traffic applications. The stylish design incorporates all the features of CL2000 and CL4000, in a larger, more robust assembly. Top of the range digital locks tested to Grade 2 ANSI A156.2 A156.25.
The CL5210 is a heavy duty electronic tubular mortise latch back to back providing coded access in both directions. Featuring a familiar 3×4 button keypad layout, the CL5210 ensures instant recognition and easy programming with its versatile functions. Its medium duty tubular latch retracts using the exterior knob after a valid code is entered, and the spring latch locks the door upon closure. This makes it ideal for health, educational, commercial, and residential settings, offering convenience and security in one package.

Features:

• Mortise latch back to back
• Allows up to 80 User Codes
• Allows up to 10 one-time User Codes to be entered
• PVD low maintenance finish
• Brushed Steel finish
• Over 200,000 operations from 4 x AA cells (provided)
• Tamper time out and low battery warning
• Connections for remote release by reception desk button
• Alarm release included
• Code Free entry
• Lever handle lock for doors hung on the left or right
• Use in offices schools warehouses hospitals care homes nurseries hotels leisure facilities the home

• The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the the door.

  Technical Specifications:

  Buttons		3 x 4
  Code Change Method		Keypad (On Door)
  Codes		User Codes 4, 5 or 6 Digits Long
  Door Thickness		1 3⁄8 – 2 3⁄8 (35mm – 60mm)
  Finish		Brushed Steel
  Handed		Non-Handed – Locks will Fit Doors Hung on the Left or Right
  Hinge Type		Heavy-Duty
  Keyed Alike		Available
  Keypad		12 Individual Stainless Steel Buttons
  Latch Type		Tubular Latchbolt
  Lock Material		Zinc Alloy
  Low Battery Warning		Red LED will Flash on Opening to Indicate Low Battery
  Memory		Stores up to 80 User Codes
  Operations		Up to 200,000 Per Set of 8 x AAA Batteries
  Power		4x AA
  Orientation		Vertical
  Spindle		Two Part 5⁄16 (8mm) Spring Loaded Spindle
  Suitable For		Internal, External
  User Types		Code
  Certifications		Grade 2 ANSI A156.2 A156.25, UL ULC

  Download:

  • Installation Instructions
  • Programming and Operating Instructions
  • Installation Template
  • Brochure
  • Fire Rated Data Sheet

  • Additional information

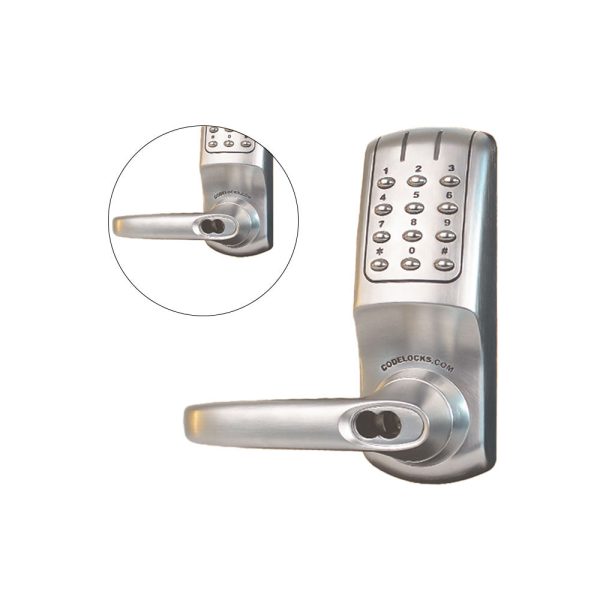

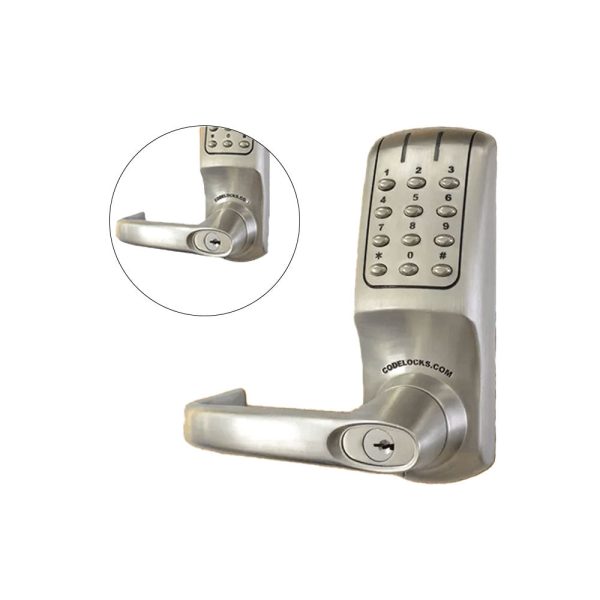

  Cylinder Option	Small Format Interchangeable Core (SFIC), Standard Cylinder
  Latch Backset	2 3/4 Inch (70mm), 2 3/8 Inch (60mm)
