Description

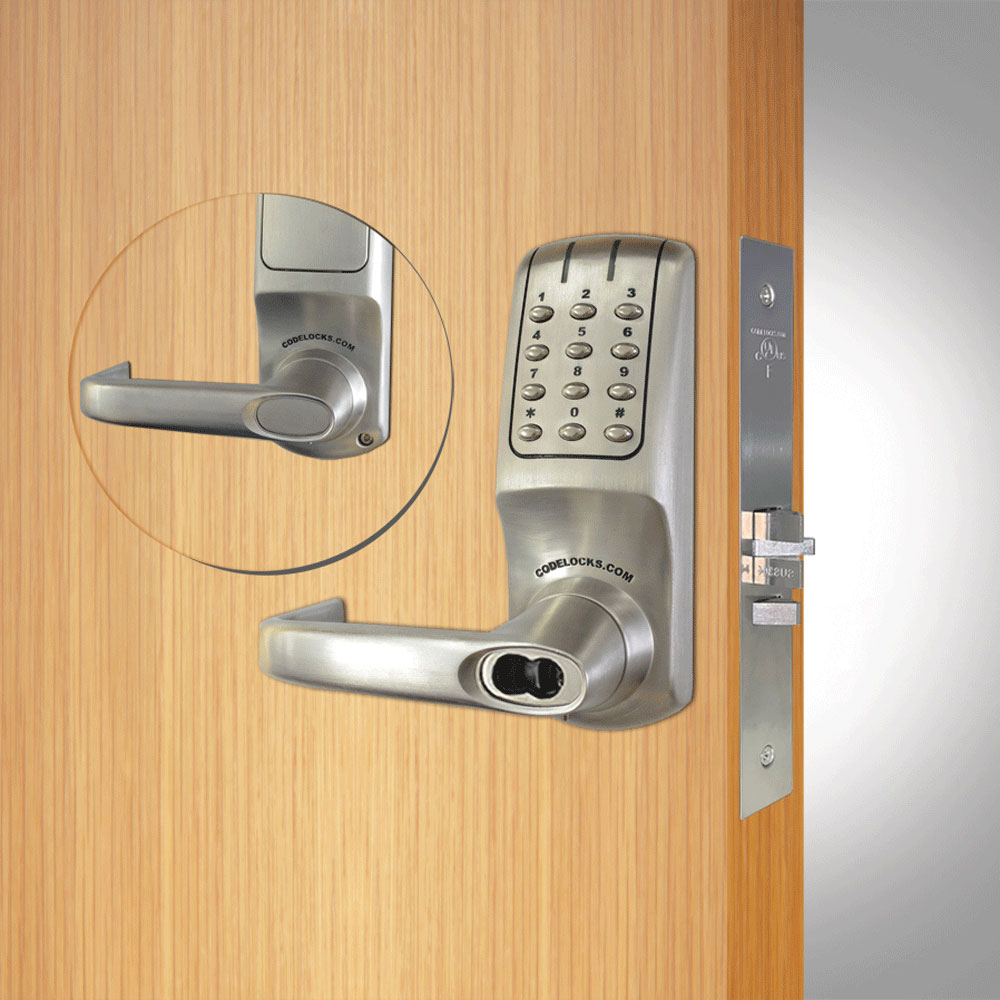

Codelocks CL5250 Electronic Smart Lock, Heavy Duty, Grade 2, Brushed Steel, 86 Prep Mortise Lock with Optional Cylinder Prep

CL5000 Electronic Range – heavy duty electronic locks for use in high traffic applications. The stylish design incorporates all the features of CL2000 and CL4000, in a larger, more robust assembly. Top of the range digital locks tested to Grade 2 ANSI A156.2 A156.25.
The CL5250 is a heavy duty electronic full ANSI mortise lock. Featuring a familiar 3×4 button keypad layout, the CL5250 ensures instant recognition and easy programming with its versatile functions. Its medium duty tubular latch retracts using the exterior knob after a valid code is entered, and the spring latch locks the door upon closure. This makes it ideal for health, educational, commercial, and residential settings, offering convenience and security in one package.

Features:

• Allows up to 80 User Codes
• Allows up to 10 one-time User Codes to be entered
• PVD low maintenance finish
• Brushed Steel finish
• Over 200,000 operations from 4 x AA cells (provided)
• Tamper time out and low battery warning
• Connections for remote release by reception desk button
• Alarm release included
• Code Free entry
• Lever handle lock for doors hung on the left or right
• Use in offices schools warehouses hospitals care homes nurseries hotels leisure facilities the home
• Back to back model available

• The key can be used to open doors for management functions such as security and cleaning. The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long. Programming is via the keypad, using the Master Code. The lock has fitted as standard two alarm release terminals.

  Technical Specifications:

  Buttons		3 x 4
  Code Change Method		Keypad (On Door)
  Codes		User Codes 4, 5 or 6 Digits Long
  Door Thickness		1 3⁄8 – 2 3⁄8 (35mm – 60mm)
  Finish		Brushed Steel
  Handed		Non-Handed – Locks will Fit Doors Hung on the Left or Right
  Hinge Type		Heavy-Duty
  Keyed Alike		Available
  Keypad		12 Individual Stainless Steel Buttons
  Latch Type		Mortise Latch
  Lock Dimensions		7 (177mm) x 1 7⁄8 (48mm)
  Lock Material		Zinc Alloy
  Low Battery Warning		Red LED will Flash on Opening to Indicate Low Battery
  Memory		Stores up to 80 User Codes
  Operations		Up to 200,000 Per Set of 8 x AAA Batteries
  Orientation		Vertical
  Spindle		Two Part 5⁄16 (8mm) Spring Loaded Spindle
  Suitable For		Internal, External
  User Types		Code
  Certifications		Grade 2 ANSI A156.2 A156.25, UL ULC

  Download:

  • Installation Instructions
  • Brochure
  • Installation Template
  • Programming and Operating Instructions

  • Additional information

  Cylinder Option	Standard Cylinder, Small Format Interchangeable Core (SFIC)
