Description

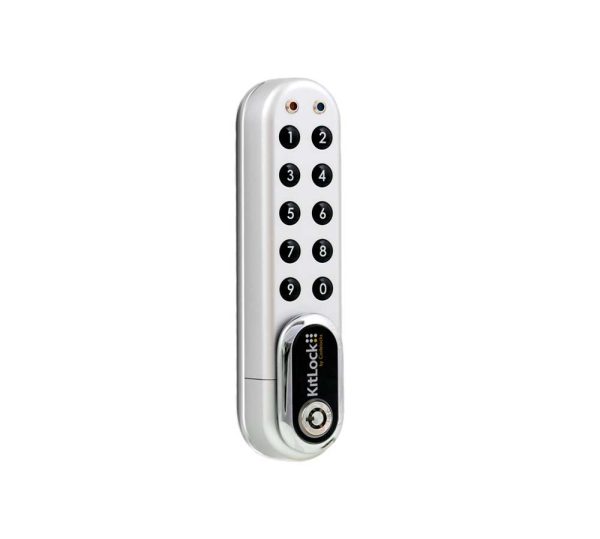

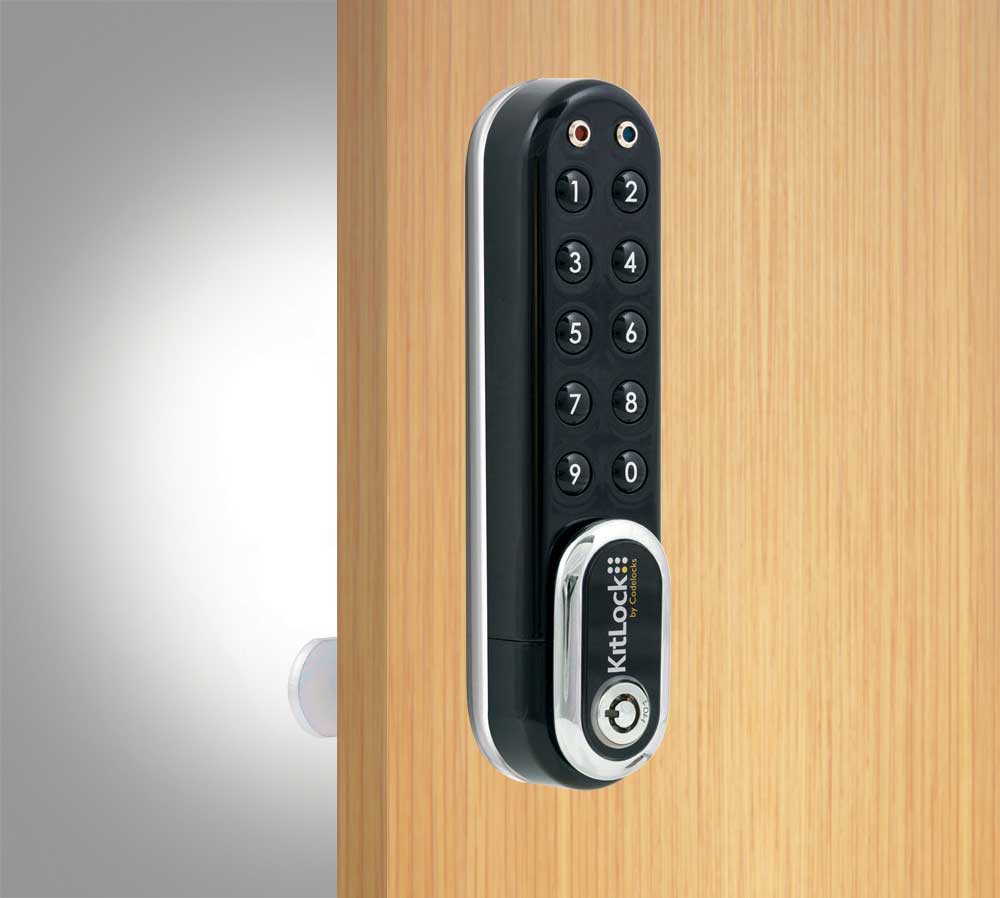

Codelocks KL1000 G3 Electronic NetCode Optional Finish Kitlock Locker Lock

Introducing the KL1000 G3 NetCode designed through the evolution of our best-selling KitLock, the KL1000. Boasting popular features from the KL1000 Classic+ including 20 User Codes, 24hr countdown timer and introducing key override. The KL1000 G3 NetCode has key override and front battery change capabilities, providing ease of use and peace of mind. The updated chrome effect back panel and handle finishes reflect their surroundings giving the lock a slimmer, more subtle aesthetic look.
This compact digital lock is ideal for replacing keyed cam locks commonly supplied on a wide range of lockers, cabinets and cupboards. Sharing the same fittings & fixings as the KL1000 Classic this lock is easily retrofitted, ideal for upgrading existing installations.

Features:

• Date time specific code generation
• Send generated codes via email or SMS2
• No WiFi connection required
• Easy install or retrofit
• Front battery change
• Key Override
• Battery Override
• Private, Public + NetCode Functions
• Up to 20 User Codes
• Auto-unlock after a set time
• Slam latch accessory available

• Codelocks NetCode® Technology:

  The KL1000 G3 NetCode utilises technology allowing generation of date and time-sensitive temporary coded access: NetCode. Once generated, a NetCode can be shared via email or SMS2, and will expire after their set duration – ideal for visiting service engineers, delivery personnel and short medium-term locker rental.

  Front Battery Change:

  The KL1000 G3 NetCode battery compartment can be accessed via the front of the lock. Entering a valid code and turning the handle reveals a security screw which, once removed, allows the cover to slide up and batteries to be replaced.

  24hr Auto-Unlock Countdown Timer:

  When operating in Public Function, the KL1000 G3 NetCode can be programmed to auto-unlock between 1 and 24 hours after locking1, saving valuable locker management time.

  Up to 20 User Codes:

  The KL1000 G3 NetCode offers up to 20 unique 4 digit User Codes when operating in Private Function, thus allowing a single cabinet to be accessed by multiple users.

  Private Function:

  This function is used where the same code will be repeatedly used, e.g. an employee with the same locker drawer in the workplace.

  Public Function:

  This is the default function and is already pre-programmed in new locks. In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.

  Technical Specifications:

  Battery Override		A 9 volt PP3 Battery Can be Placed against External Contacts
  Buttons		2 x 5 + Programming
  Code Change Method		Keypad (On Door)
  Codes		8-Digit Master and Sub-Master Code, 6-digit Technician Code, 20 4-Digit User Codes
  Door Thickness		Ready to Fit Doors up to 1 (25mm)
  Countdown Timer		Open after X Hours
  Finish		Silver Chrome
  Functions		Private, Public, NetCode
  IP Rating		IP54 When Fitted with Gasket (IP55 Available for Special Order)
  Lock Dimensions		5 3⁄8 (136mm) x 11⁄16 (28mm) x 15⁄16 (33mm) (H x W x D)
  Lock Material		Mixed Plastic and Alloy
  Low Battery		Red LED will Flash on Opening to Indicate Low Battery
  Latch Type		Cam, Slam Latch
  Memory		Non-Volatile Memory will be Retained
  NetCode		Available via the App or Online Portal
  Operations		Up to 100,000 Operations Per 2 x AAA Batteries
  Power		2x AAA
  Spindle		Fitted with 15⁄16 (24mm) Spindle as Standard, Optional 3⁄8 (10mm) and 11⁄8 (29mm) Spindles Supplied
  Orientation		Vertical
  Suitable For		Internal, External
  User Levels		Master, Sub Master, Technician, User
  User Types		Code, NetCode

  Download:

  • Getting Started Guide
  • KL1000 G3 – Installation Template
  • KL1000 G3 – Programming and Operating Instructions
  • KL1000 G3 – Brochure
  • KL1000 G3 – Data Sheet

  • Additional information

  Color	Silver Chrome, Black Chrome
