Description

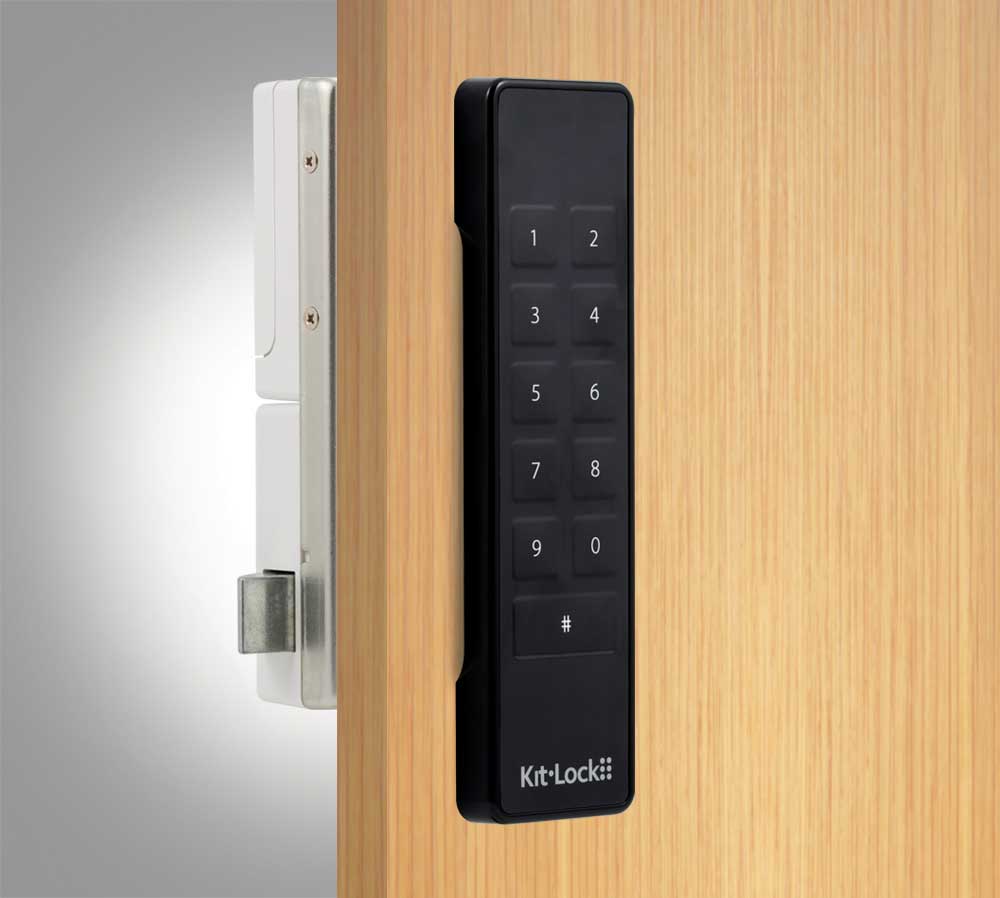

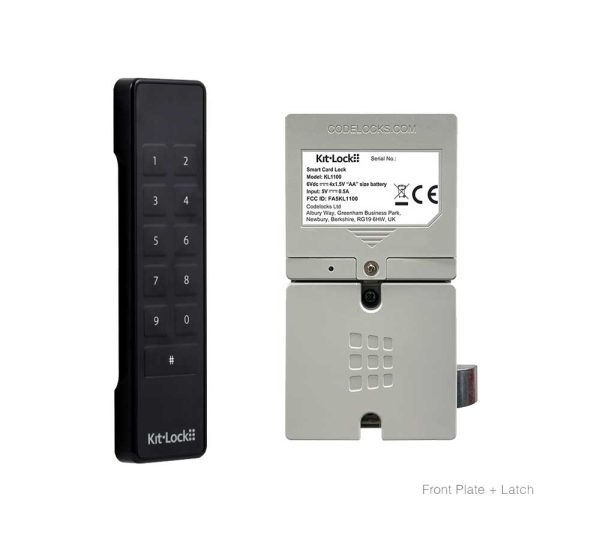

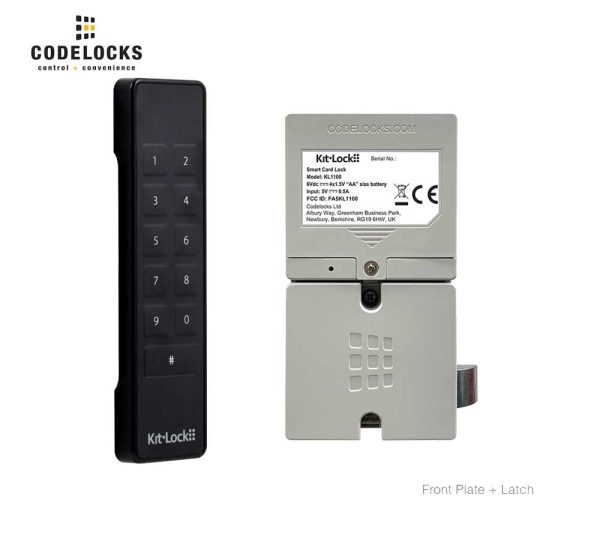

Codelocks KL1100 Optional Finish Electronic KitLock Keypad Locker Lock with Powered Latch

This stylish standalone lock shares the same slimline design and powered latch as the KL1100 RFID but maintains the traditional code access keypad and features found in classic KitLock products. The product enhancements make this a front runner for those looking for traditional standalone digital locks with additional User Codes and auto-unlocking capabilities.
Codelocks KitLock products are designed for easy install and the KL1100 KeyPad is no different, sharing the same fixing holes as the KitLock KL1000 Classic, retrofit is an option for many applications. With up to 100,000 operations, 20 User Codes, Auto-Unlock at a set time or predefined period, this lock is an easy first choice for anybody looking for an upgrade to their lockers.
Suitable for a wide range of applications where the same code will be repeatedly used or where a single one-time user code can be entered and then erased ready for the next user, for example, hot desking in an office or a locker in a gym.
Available in Metallic Silver or Gloss Black finish, the lock is easy to wipe clean with anti-bacterial wipes and sprays.

Features:

• 8 digit Master Code and Sub Master Code
• 20 User Codes
• 6 digit Technician Code
• Auto-Unlock at a set time
• Maximum locked period
• Battery override
• On the door battery change
• Powered latch
• Supports Private and Public Functions
• IP55 when fitted with gasket
• Anti-bacterial wipe clean

• Technical Specifications:

  Battery Override		Connect to 5V Micro USB Power Source for Temporary Power
  Buttons		2 x 5 + Programming
  Code Change Method		Keypad (On Door)
  Codes		Up to 20 User Codes
  Door Thickness		Ready to Fit Doors up to 1 (25mm)
  Finish		Gloss Black, Metallic Silver
  Functions		Private, Public
  Handed		Non Handed – Locks will Fit Doors Hung on the Left or Right
  Keypad		11 Individual Buttons
  Lock Dimensions		138mm x 38mm x 12.5mm (H x W x D)
  Low Battery		Red LED will Flash 3 Times before Unlocking
  Latch Type		Powered Latch
  Memory		Non-Volatile Memory – Programming will be Retained
  Operations		Up to 100,000 Operations Per 4 x AA Batteries
  Power		4 x 1.5 volt AA Batteries (Supplied)
  Orientation		Vertical
  Suitable For		Internal
  User Levels		Master, Sub Master, Technician, Standard User
  User Types		Code

  Download:

  • Installation Instructions and Template
  • Programming and Operating Instructions
  • KL1100 KeyPad Brochure
  • KL1100 KeyPad Data Sheet

  • Additional information

  Color	Gloss Black, Metallic Silver
