Description

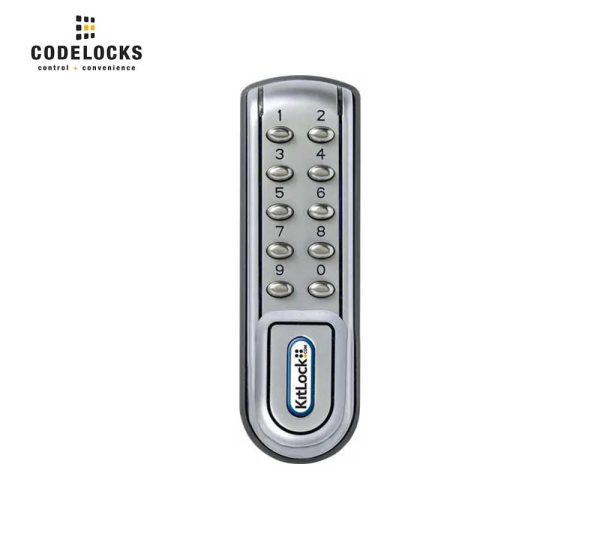

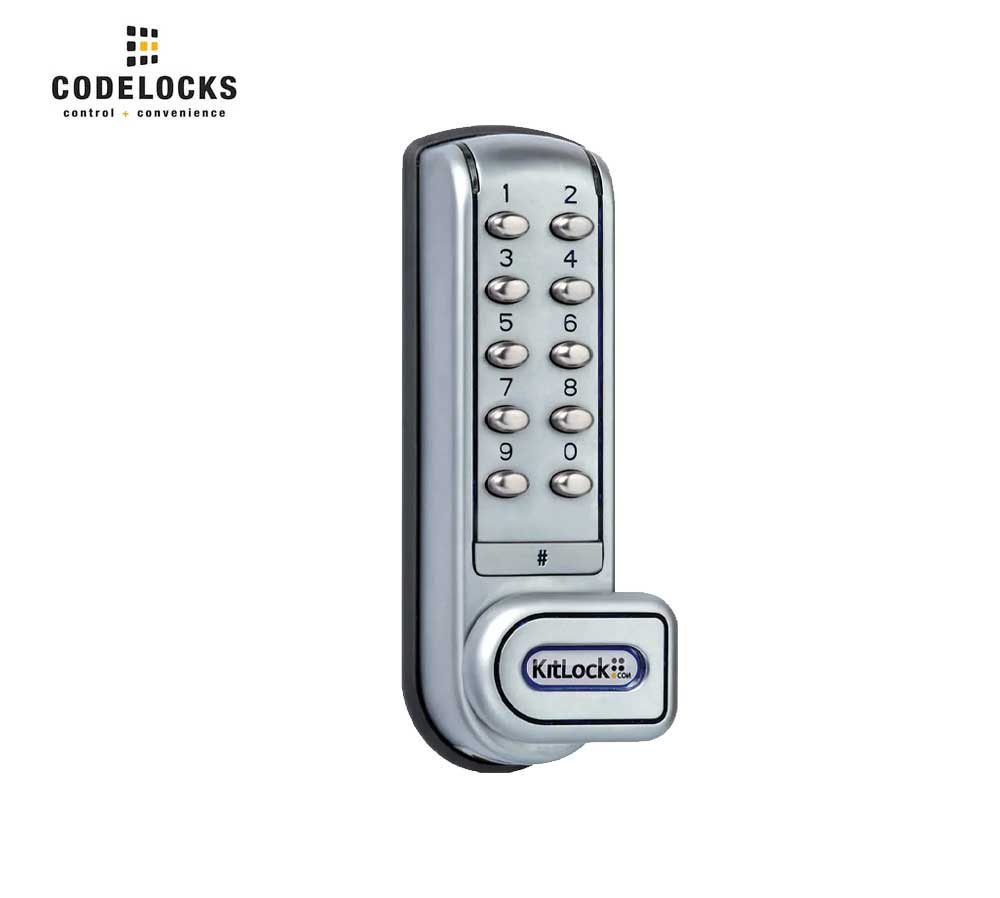

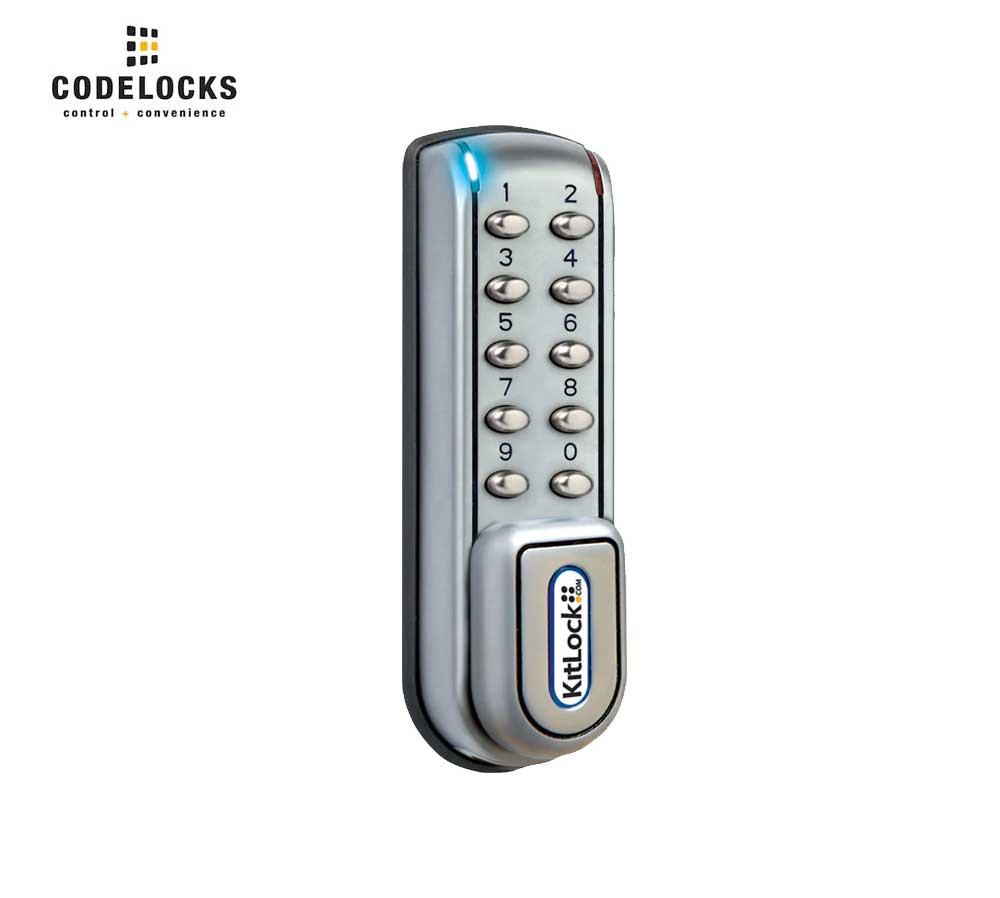

Codelocks KL1200 Electronic, Heavy Duty, Silver KitLock with Optional Handing

The KitLock 1200 locker lock is a popular choice for more challenging environments. A tougher, more robust lock range with all the benefits of the KL1000 Classic plus additional features and functions.
The locks are easy to fit, providing additional programming features, stainless steel buttons, dual fixing points and improved number of operations from two AAA cells.
Now available in a right hand model and with the option of a slam latch accessory. Simplify access control and go keyless with KitLock.

Features:

• Easy fit
• 11 individual stainless steel buttons
• 50,000 openings from 2 x AAA cells (supplied)
• 2 independent fixing points
• Auto unlock facility
• Audible key pad
• Ideal for cabinets, lockers, cupboards, medical carts, data racks, safes
• Vertical and right-hand models available
• Available in silver grey finish.
• RAL colour locks available on request, minimum order quantities apply.
• Use in offices schools warehouses hospitals care homes nurseries hotels leisure facilities the home
• IP54 rated when used with door gasket
• Not suitable for a Chlorine environment
• The KL1200 has 4 code levels available:
• • 8 digit Master Code
  • 8 digit Sub-Master Code
  • 4 digit User Code
  • 6 digit Technician Code

  • How does a KL1200 operate?

    Private Use
    This is the most common function and used where the same code will be repeatedly used, e.g. a pupil in a school or an employee with the same locker in the workplace.
    Public Use
    In this function the KitLock operates with a single User Code. The guest enters a personal four-digit code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next user. This function is used for short term, multi occupancy applications, e.g. a locker in a leisure centre.
    The KL1200 is supplied as standard with two cams, but will accept the majority of other cam variations that will fit onto the KL1200’s 8mm square spindle. The lock is supplied with all the necessary fixings, template and operating instructions to fit the lock to the cabinet, locker or cupboard.

    Technical Specifications:

    Battery Override		A 9 Volt PP3 Battery can be Placed against External Contacts
    Code Change Method		Keypad (On Door)
    Buttons		2 x 5 + Programming
    Door Thickness		Ready to Fit Doors up to 1 4
    Finish		Silver
    Functions		Private, Public
    Keypad		11 Individual Round Buttons
    Lock Dimensions		143mm x 41mm x 37mm (H x W x D)
    Low Battery		Red LED will Flash on Opening to Indicate Low Battery
    Latch Type		Cam
    Memory		Non-Volatile Memory will be Retained
    Operations		Up to 50,000 Opening Per 2 x 1.5 AAA Batteries
    Power		2x AAA
    Orientation		Vertical, Right Handed
    Suitable For		Internal, External
    User Levels		Master, Sub Master, Technician, Standard User
    User Types		Code
