Description

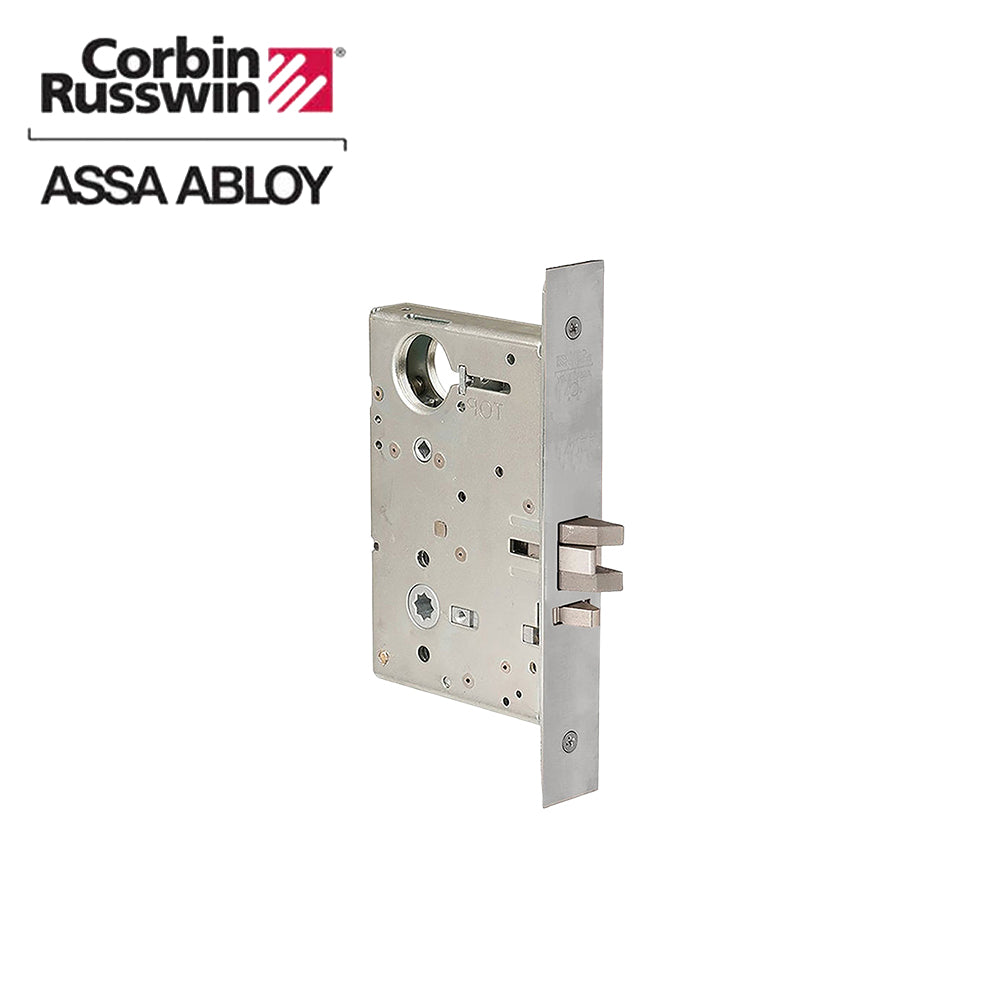

Corbin Russwin Mortise Single Cylinder with Deadbolt Dormitory or Entrance Exit Lockbody – Grade 1 – 626 (Satin Chrome)

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1 stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.

The ML2000 Series provides multi-function capability, employing a universal lockbody that offers the ability to reconfigure a select group of functions without disassembling the lock case and using only a few additional parts.

Features:

• Latchbolt by key when outside grip locked by toggle action stop.
• Latchbolt by grip either side, unless outside grip is locked by toggle-action stop.
• Auxiliary latch deadlocks latchbolt.
• Inside grip always free.
• Direct drive performance for consistent torque and force during lever rotation
• Lever return is crisp and firm – eliminating lever sag
• Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
• Integrates with new or existing Corbin Russwin key systems, including patented high security Access 3® and Pyramid
• Integrates with access control platforms
• Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
• Occupancy indicators available
• Ten-year warranty

• Advantages

  • Patented Quick Reversible feature enables reversal of hands without disassembling the lock case.
  • Security trims provide a vandal-resistant barrier
  • Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
  • Provides life safety and security in a single door prep, saving the additional cost of a deadlock
  • Thru-bolted trim designs for proper alignment and increased security Multi-function lockbody

  • Product Specifications:

    Manufacturer		Corbin Russwin
    SKU		ML2065 LL 626
    UID		COR300ML2065LL626
    Grade		Grade 1
    Origin		USA
    Unit of Measure		Each
    Application		Lockbody Only
    Base Material		Brass or Bronze
    BAA Qualified		Yes
    Limited Warranty		10 Years
    Fire Rated		3 Hours {A}

    Technical Specifications:

    Function		65-Dormitory or Entrance
    ANSI Function		F13 – Dormitory
    Handing		Field Reversible
    Door Thickness		1-3 4
    Lock Face Size		8 x 1-1 4
    Bolt Projection		3 4 Latchbolt, 1 Deadbolt
    Std. Strike Number		236L72018
    Std. Strike Type		ASA
    Std. Strike Height		4-7 8
    Std. Strike Width		1-1 4
    Screws		Combination
    Product Type		Mortise Lock

    Installation Instructions:

    • Corbin_Russwin_ML2000_Series_Installation_Instructions
