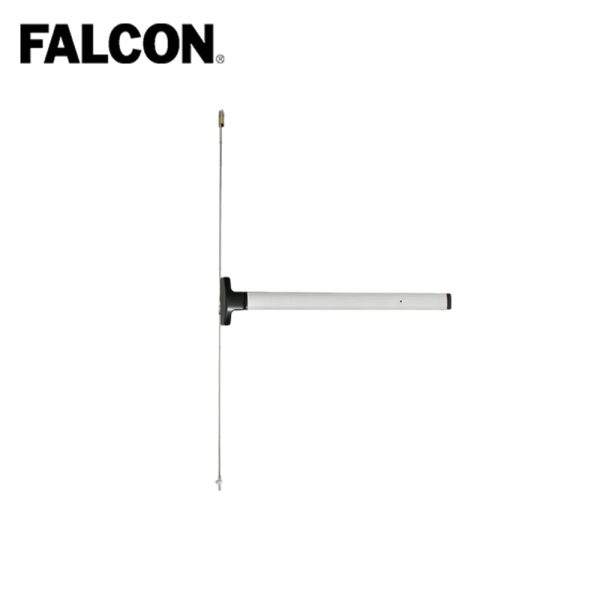

Falcon Concealed Vertical Rod Pushpad Exit Device – Electric Latch retraction – 36 – 628 (Satin Aluminum Clear Anodized)

1690 Electric Latch is a narrow stile touch bar exit devices provide safe and reliable egress that is ideal for aluminum doors. ANSI BHMA A156.3 Grade 1 products and boast a 10-year limited warranty.

The 1690 Series design is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring ideal operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 Series may also be used to retrofit a 1990 Series crossbar device.

Features:

• Cast metal cover plates and end caps provide durability in demanding applications
• Various options, functions, trims and finishes allow for tailoring to any facility needs
• Designed for medium to high use and abuse in institutional applications like schools, hospitals and government facilities
• Certified ANSI A156.3 Grade 1 standards
• Finish: Satin Aluminum Clear Anodized

• Product Specifications:

  Vendor		Allegion
  Manufacturer		Falcon
  SKU		EL1690EO 36IN US26D
  UID		FALEL1690EO36INUS26D
  Installation		Commercial
  Limited Warranty		10 Years

  Technical Specifications:

  Physical Appearance		Narrow Stile Pushpad
  Device Type		Rim
  Device Length		36
  Dogging Options		Hex Key Dogging
  Product Type		Rim Exit Devices

  Installation Instraction:

  • Falcon 1690 1790 2390 RX Switch Retrofit Kit Installation Instruction

  • Additional information

  Title	Default Title
