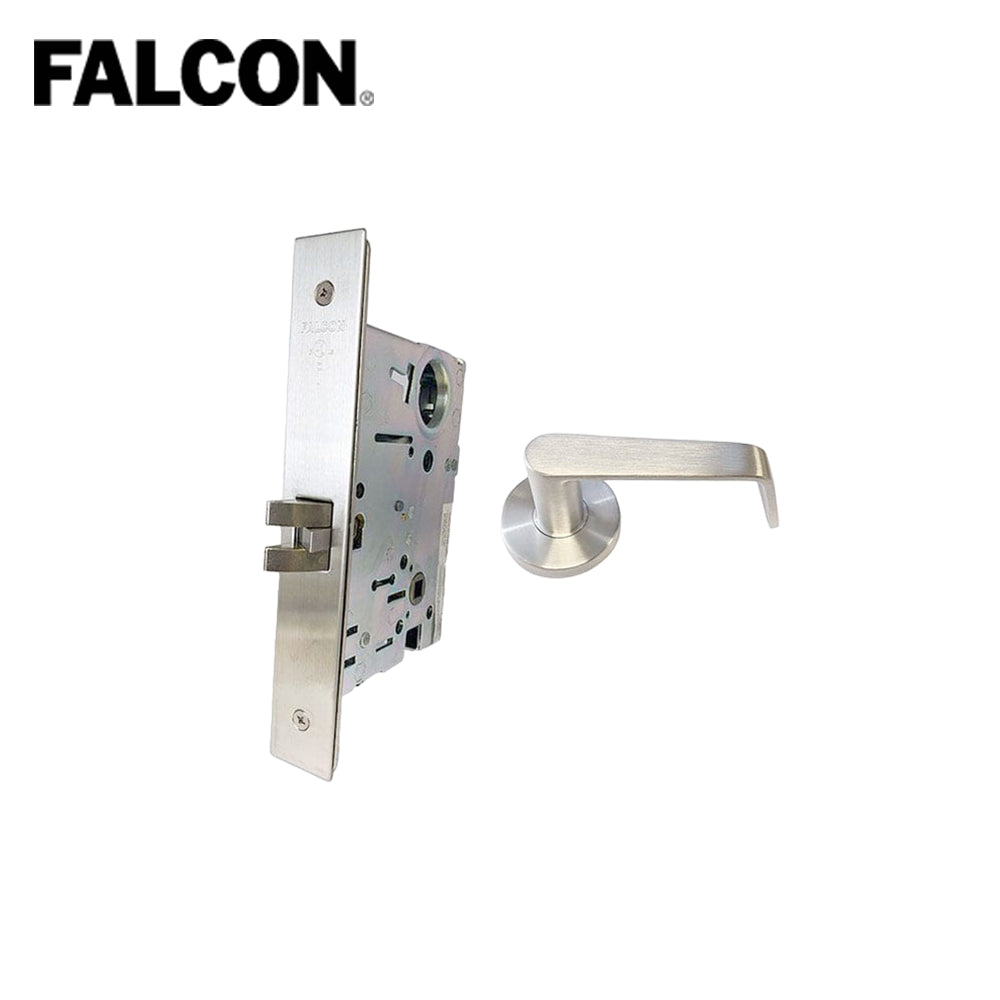

Falcon Mortise Lock Passage latchset with Dane Gala Lever – Grade 1 – 626 (Satin Chrome)

Passage Mortise Lock is a Latch bolt operated by knob lever from either side at all times. Inside knob lever always free for immediate egress. The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon s toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications. And, with generous trim and finish styles, the MA Series makes it easy to match existing or new design choices.

Product Specifications:

Vendor		Allegion
Manufacturer		Falcon
SKU		MA101 DG 626
UID		FAL100MA101DG626
Grade		Grade 1
Installation		Commercial
Unit of Measure		EACH
Base Material		Brass or Bronze

Technical Specifications:

Function		MA101-Passage Closet Latchset
ANSI Function		F01 – Passage
Lever Knob Design		D – Dane Lever
Rose Escutcheon Design		G – Gala
Product Type		Mortise Lock
Handing		Right hand is standard; left hand optional.
Keyway		G” keyway standard on standard cylinder. “A” keyway standard on I C cylinder. See price book for optional keyways
Trim		Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Escutcheon		Falcon Napa Style
Door Thickness		Standard accommodates thickness of 1-3 8” to 2-1 2”.
Cylinder		5 Pin Mortise Cylinder; Drilled for 6
Backset		2 3 4 Backset
Case		Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
Latch		Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4 projection
Strike		Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
Finish		626 – 26D – Satin Chrome
ANSI		156.13
Certifications		Locksets comply with UL10B – neutral pressure and UL10C UBC 7-2 –positive pressure testing requirements. All locks shall be UL listed for 3 hour fire door. BHMA Grade 1 Security BHMA Grade 1 Operational
Manufacturer Warranty		10-Year

Installation Instructions:

• MA Series Installation Instructions
