Description

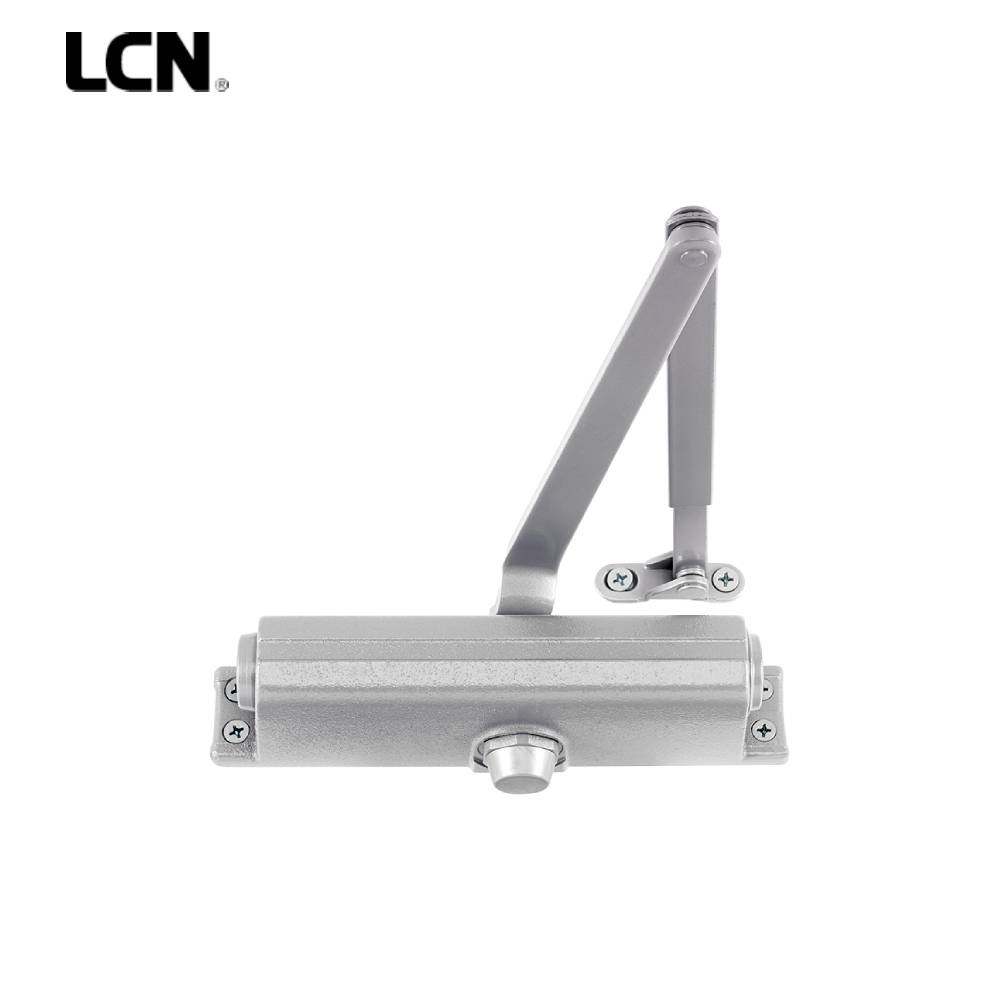

LCN – 1261-RW PA-AL – Hydraulic Door Closer – Regular Arm – Adjustable Spring Size 1-5 – Plastic Cover – Aluminum (Grade 1)

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

Features:

• Cast iron cylinder with full-complement bearing
• 1-3 8 ” diameter piston
• Heat-treated steel pinion journal
• All-weather fluid
• Forged steel arm
• 20-year warranty

• Specifications:

  • Non-handed
  • Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Meets ADA requirements
  • UL and cUL listed for self-closing doors without hold-open
  • Tested and certified under ANSI BHMA A156.4 Grade 1

  • Designs & Finishes:

    • Powder coat finish offered in standard colors and a large selection of optional custom colors
    • Optional slim line plastic cover
    • Optional SRI primer for installations in corrosive conditions available with powder coat only

    • Mounting Arm Options:

      The 1261 Series mounts hinge pull side, top jamb push side, and parallel arm push side. Visit the 1261 Series catalog pages for mounting details, arm options and accessories.

      Installation Instructions:

      • LCN1261InstallationInstructions
