Description

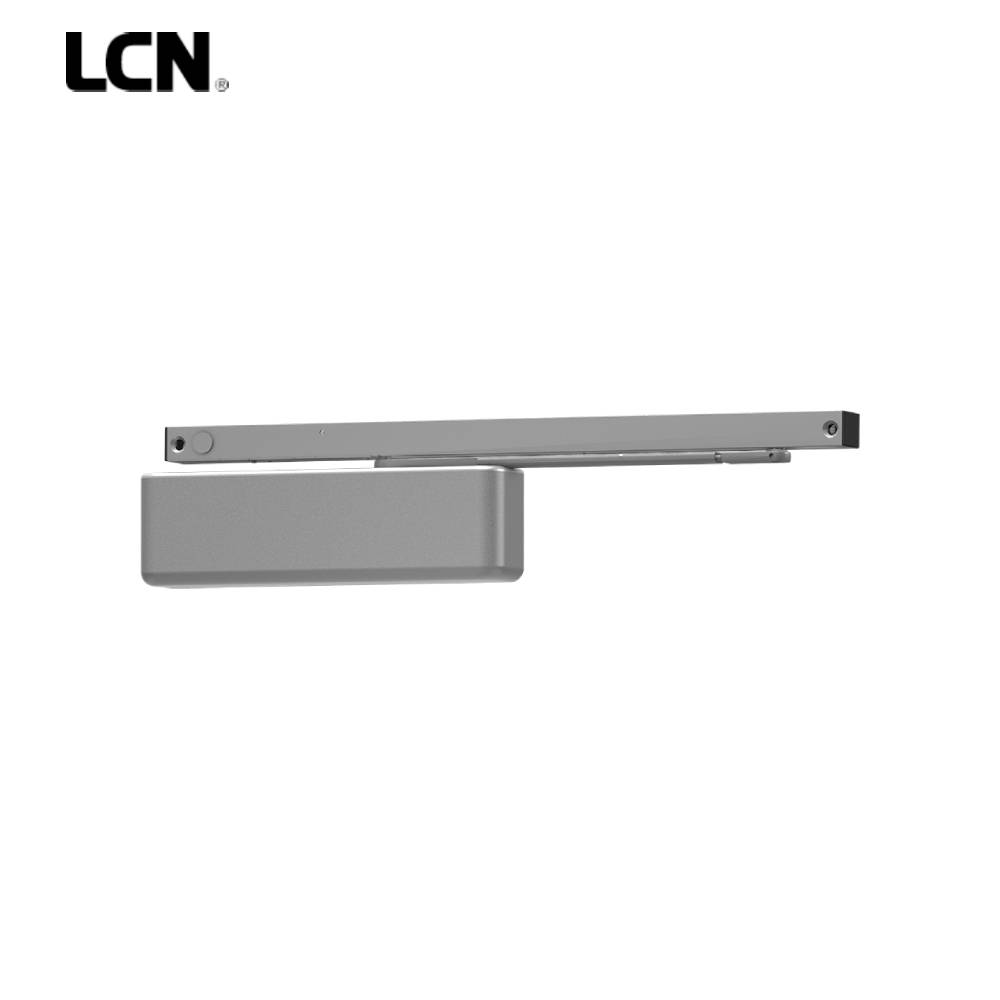

LCN – 4040SE-24VAL – Surface Door Closer – Slide Track Arm Standard With Hold Open – Plastic Cover – Aluminum Painted – 24V (Grade 1)

Heavy duty, non-handed and non-sized, designed to provide a single point hold-open for fire and smoke barrier doors.

The door is held open until current interruption releases the holding mechanism and the door closes.

Features:

• Cast iron design
• Hold-open force is adjustable
• 1-1 2” diameter piston for the 4040SE Series
• 4040SE Series is universal non-handed
• All-weather fluid
• 2-year warranty

• Specifications:

  • Designed for interior doors to 4’0”
  • Functions as full rack-and-pinion door closer when hold-open is not engaged or current is interrupted
  • Momentary on off switch board assembly for testing the door release also provides over-voltage protection
  • UL listed for smoke barrier or labeled fire doors
  • Conforms to life safety code, NFPA 101

  • Designs & Finishes:

    • Standard or optional custom powder coat finish
    • Optional plated finish on metal cover, arm and fasteners
    • Optional SRI primer for installations in corrosive conditions available with powder coat only

    • Mounting Arm Options:

      • The 4040SE Series mounts surface hinge (pull side) or top jamb (push side).

      • Visit the 4040SE Series catalog pages for complete mounting details, arm options and accessories.

        Installation Instructions:

        • LCN4040SEInstallationInstructions
