Description

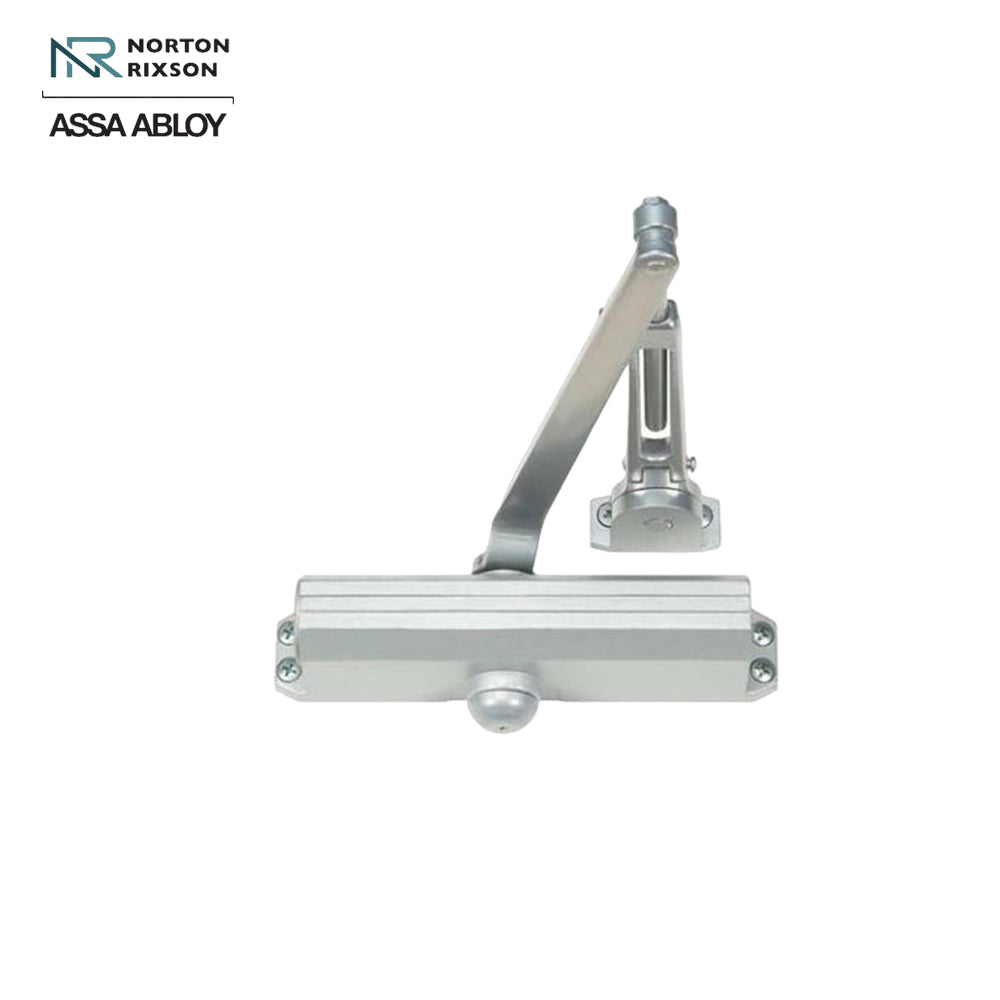

Norton – 1601 – Tri Mount Surface Closer with Double Lever Arm Regular Friction Hold and 90 to 180 Deg. Swing – Adjustable Size 1-6 -Grade 1 – 689 (Aluminum Painted)

Norton 1601 Series Closers is fully adjustable door closer for aluminum storefronts and other medium traffic applications. It offer time-tested quality, performance and reliability. A long-standing staple in the industry, these Grade 1 closers are designed for interior or exterior doors.

Features:

• Heavy duty, one-piece cast aluminum body
• Available adjustable 1-6 and fixed spring sizes 3 and 4 units
• Full variety of arms available as hold open or non- hold open
• Maximum Degree of Swing: 180°, trim permitting
• Non-handed
• 2-7 8 projection
• Plastic cover optional

• Benefits:

  • Aluminum alloy closer body provides for long life
  • Independent sweep, latch and back-check intensity valves ensure positive control
  • Wide variety of arms and applications for most any environment
  • Features a quick-adjust slide arm for quick installation and adjustment

  • Product Specifications:

    Vendor		Assa Abloy
    Manufacturer		Norton
    SKU		1601H 689
    UID		NOR3001601H689
    Grade		Grade 1
    Installation		Commercial
    Unit of Measure		Each
    UL Listing Type		UL10C
    ANSI Number		ANSI BHMA A156.4, Grade 1 Certified
    Limited Warranty		15 Years
    Fire Rated		3 Hours {A}

    Technical Specifications:

    Type		Surface
    Technology		Hydraulic
    Mounting Location		Push Side
    Mounting Style		Parallel Arm
    Closer Size		1 to 6
    Arm Type		Parallel Arm Rigid
    Hand		Non-Handed
    Degree Swing		180 Deg.
    Back Check		Adjustable
    Door Weight		250 lbs.
    Product Type		Surface Closers

    Installation Instructions:

    • 1600 Series Installation Instructions
