Description

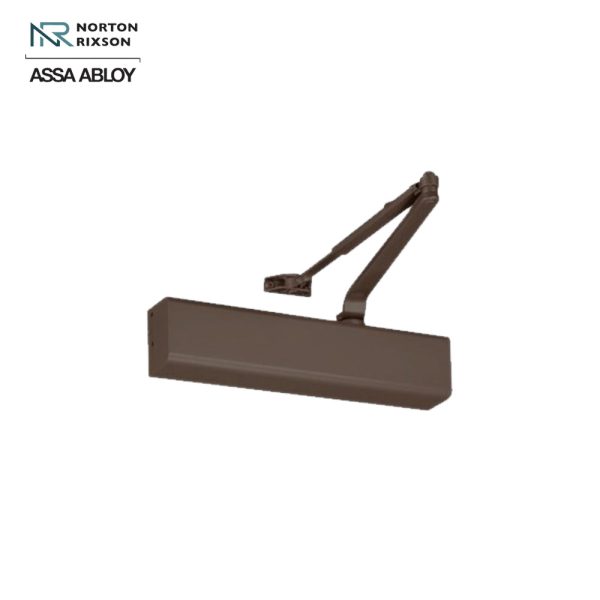

Norton – 8501 – Tri Mount Door Closer with Double Lever Arm Regular Adjustable Size 1 to 6 and Push or Pull Side – Grade 1 – 690 (Dark Bronze Painted)

8501 Series Closers is Architectural Tri-Style® door closer. The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today s market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

Features:

• Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
• Closers shall be surface mounted and shall project no more than 2-1 8 from the surface of the door with standard cover.
• Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
• Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
• Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
• Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
• Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
• [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
• Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1 2% ) power adjustment

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Norton
  SKU		8501 690
  UID		NOR3008501690
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  UL Listing Type		UL 10C
  ANSI Number		ANSI A156.4
  BAA Qualified		Yes
  Limited Warranty		25 Years
  Fire Rated		3 Hours {A}
  ADA Compliance		Yes

  Technical Specifications:

  Type		Surface
  Technology		Hydraulic
  Mounting Location		Push or Pull Side
  Mounting Style		Tri Mount
  Closer Size		1 to 6
  Arm Type		Double Lever Arm Regular
  Hand		Non-Handed
  Back Check		Adjustable
  Cover		Plastic
  Cold Weather Fluid		Yes
  Product Type		Surface Closers

  Installation Instructions:

  • 8000 Series Installation Instructions
