Description

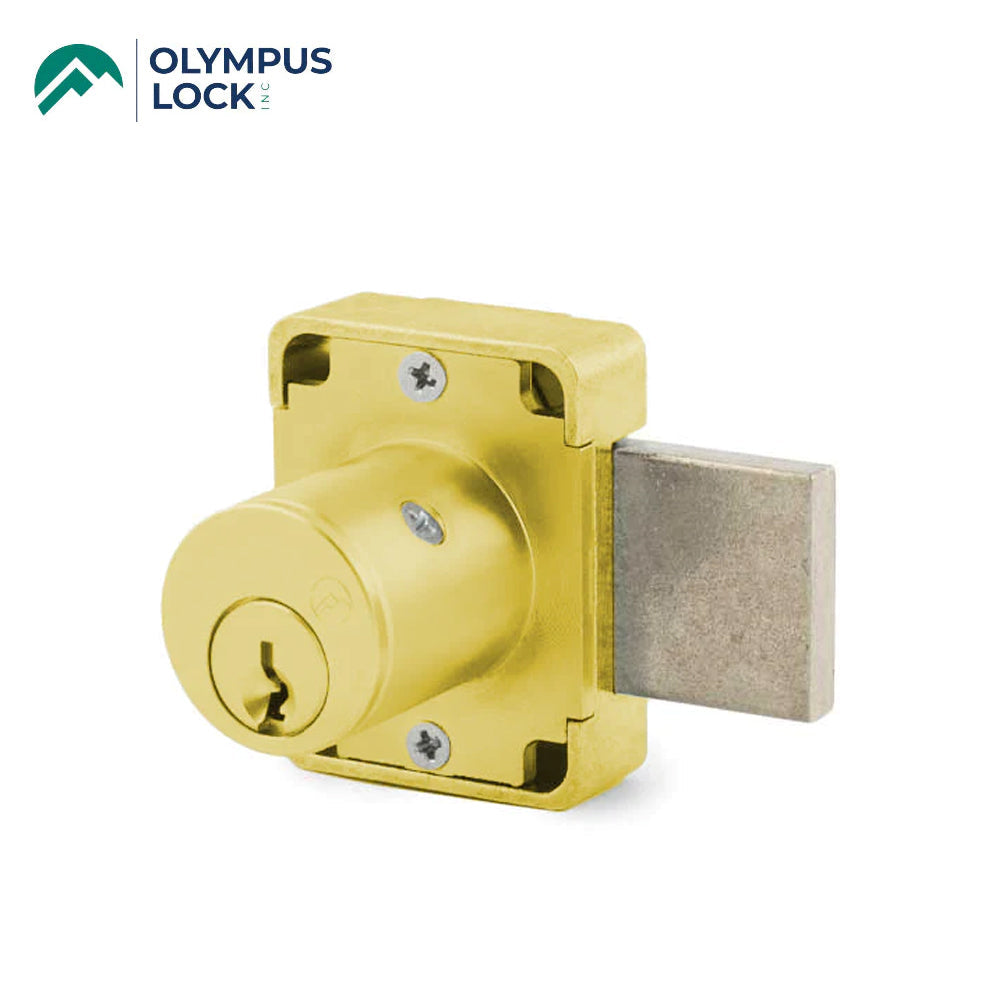

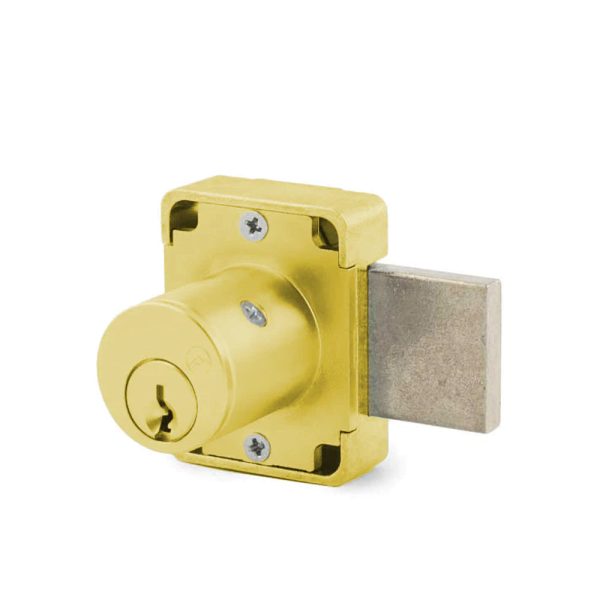

OLYMPUS LOCK – 500DR – Cabinet Deadbolt Door Lock – R Series – CCL R1 Keyway – Optional Cylinder Length – Key-Retaining – Optional Keying – Optional Handed – US4 (Satin Brass-606)

Function:

MRI locks are made of all non-magnetic materials and components specifically for use in MRI medical applications.

Feature:

• R Series: CCL R1 Keyway
• 500M MRI Series deadbolt door lock
• All non-ferrous (non-magnetic) materials and parts
• Suitable for use in Magnetic Resonance Imaging suites where all components must have non-magnetic properties
• For standard locks
• For weather resistant locks
• Easily rekeyable via set screw cylinder release mechanism
• Solid brass pin tumbler cylinder drilled for 5 pins
• (E07121) ANSI BHMA Grade 1
• Barrel lengths: 15 16 , 1-3 8 . Specify barrel length when ordering.
• Barrel diameter: 7 8
• Standard function: locks are non-handed with key removable in the locked and unlocked position.
• Optional key-retaining* function: Specify 500MKR for right-hand or 500MKL for left hand. NOTE: Specify right-hand or left-hand for key-retaining function only
• Optional extended bolt – specify -LB option
• 26D, US4 or 10B finish
• Includes bar strike 56-1
• US Patent Nos: 4,899,563; 4,920,774
• *Key-retaining = key removable in locked position only.

• Specification:

  • Keying: Can be keyed together with other R Series locks
  • Non-magnetic: Contains all non-ferrous (non-magnetic) components and keys. Suitable for use in MRI (magnetic resonance imaging) applications. Includes copper plated non-magnetic keys.
  • Rekeyable: Easily rekeyable via set screw cylinder release mechanism
  • ANSI BHMA: Passed ANSI BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121(500M) E07041(600M).
  • Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
  • Key-retaining: Key removable in locked position only. Specify handing (KL KR for doors or KI KV for drawers) when ordering.
  • Long bolt: Extends bolt 3 4” on both ends. Specify -LB option when ordering.
  • Standard locks: See our 500DR 600DW products
  • US Patent Nos: 4,899,563; 4,920,774
  • Body: Zinc die cast
  • Cylinder: Solid brass, pin tumbler

  • Keying Information:

    • Keyway: R Series (equivalent to CCL R1 system)
    • Keys: Includes 2 keys per lock
    • Stock keying: KD KA – 5 pin standard
    • Stock KA#: 4T21579, 4T37526
    • Masterkeyed: 5 pin standard, 6 pin available
    • Grand masterkeyed: Available
    • Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A)
    • Keyblank 5-pin copper plated: KBR-5B (use with M Series MRI locks)
    • Keyblank 6-pin: KBR-6-NP (equivalent to L1003A)

    • Inluded Accessories:

      • 500DR 500B: 2 keys, 56-1 bar strike, and lock mounting screws
      • 500M: 2 keys, 56-1 bar strike, and lock mounting screws (keys, components and materials are nonferrous non-magnetic)

      • Optional Acessories:

        • Spacers: WP20 (3 16” thick), WP21 (3 32” thick), WP22 (1 4” thick), WP23 (1 2” thick)
        • Trim collars: TR1256
        • .Through-bolt hardware: ETS2 through-bolt plate, ETS2- PL trim pull and ETST2 template
        • Extended (long) bolt: 15-1-35 (for use with 500M or 500M)

        • Download:

          • Data Sheet
          • Installation Instruction
          • Key Retaining Non Key Retaining Instruction
