Description

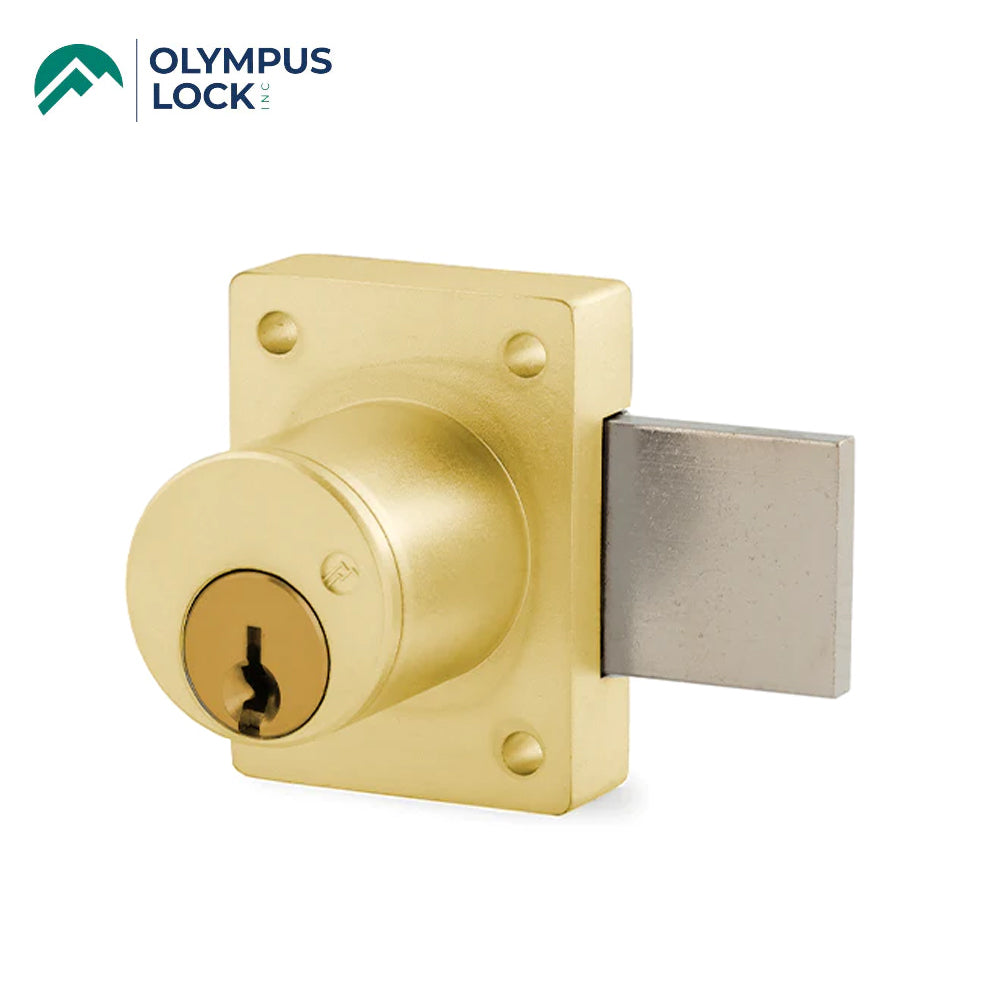

OLYMPUS LOCK – 700S – Cabinet Deadbolt Door Lock – Schlage C Keyway – S Series – Optional Cylinder length – Optional Keying – Optional Color

Feature:

• Cabinet lock – deadbolt door lock
• Easily rekeyable via cylinder release mechanism
• Will accept other manufacturer s Schlage compatible deadbolt cylinders
• (Grade 1) ANSI BHMA No. E07121
• Standard function: locks are non-handed with key removable in the locked and unlocked position.
• Optional key-retaining* function: Specify 700KR for right-hand or 700KL for left hand. NOTE: Specify right-hand or left-hand for key-retaining function only.
• Barrel lengths: 1-1 8 or 1-3 8 (specify barrel length when ordering)
• Barrel diameter: 1-1 8
• Bolt projection: 15 16
• 10B finish locks ship standard with US4 satin brass cylinder
• US Patent Nos: 4,899,563; 4,920,774
• *Key-retaining = key removable in locked position only.

• Specification:

  • Keying: Can be keyed together with other Schlage C Keyway locks.
  • Rekeyable: Easily rekeyable via set screw cylinder release mechanism.
  • ANSI BHMA: Passed ANSI BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (700S) E07041 (800S).
  • US Patent Nos: 4,899,563; 4,920,774
  • Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.
  • Key-retaining: Key removable in locked position only. Specify handing (KL KR for doors or KI KV for drawers) when ordering.
  • Body: Zinc die cast
  • Cylinder: Will accept other manufacturer s Schlage compatible key-in-knob cylinders
  • Cylinder length: 1-1 8 or 1-3 8
  • Barrel diameter: 1-1 8

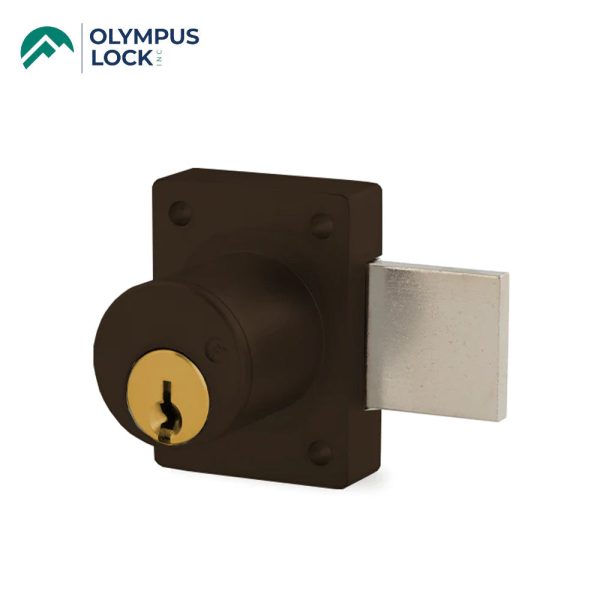

  • Finish: 26D, US3, 10B

  • Keying Information:

    • Keyway: Schlage C keyway
    • Keys: Includes 2 keys per lock
    • Cylinder: Solid brass, pin tumbler
    • Stock keying: KD KA – 5 pin standard
    • Stock KA#: 101, 102, O-Bit
    • Masterkeying: 6 pin standard
    • Grand masterkeying: Available
    • Keyblank 6-pin: KBSC-6

    • Included Accessories:

      For 1-1 8 barrel length locks:

      • 10-350 plastic spacers (qty 2)
      • 10-054 1 4 plastic bar strike
      • 10-055 1 2 plastic bar strike

      • For 1-3 8 barrel length locks:

        • 10-054 1 4 plastic bar strike

        • Optional Accessories:

          • Spacers: 10-348 (1 4 thick), 10-349 (1 2 thick), 10-350 (1 8 thick)
          • Strikes: 10-052, 10-056, 10-057, 10-058, 12-2, 12-3, 12-4
          • Trim collar: TR78
          • Through-bolt hardware: ETS1 through-bolt plate, ETS1-PL trim pull and ETST1 template
