Description

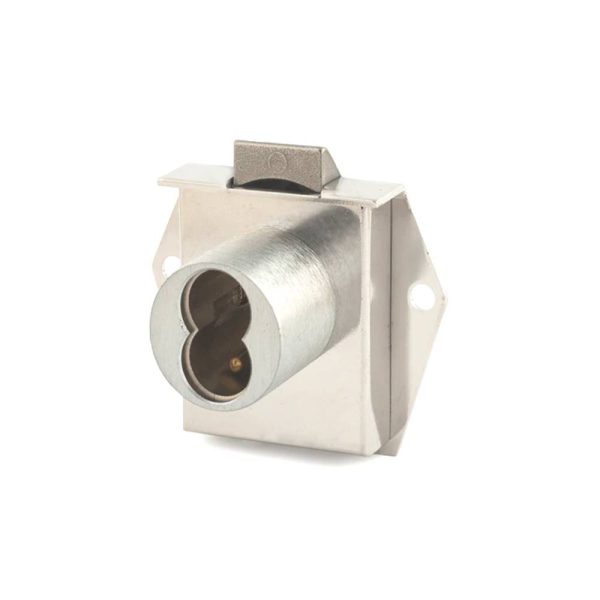

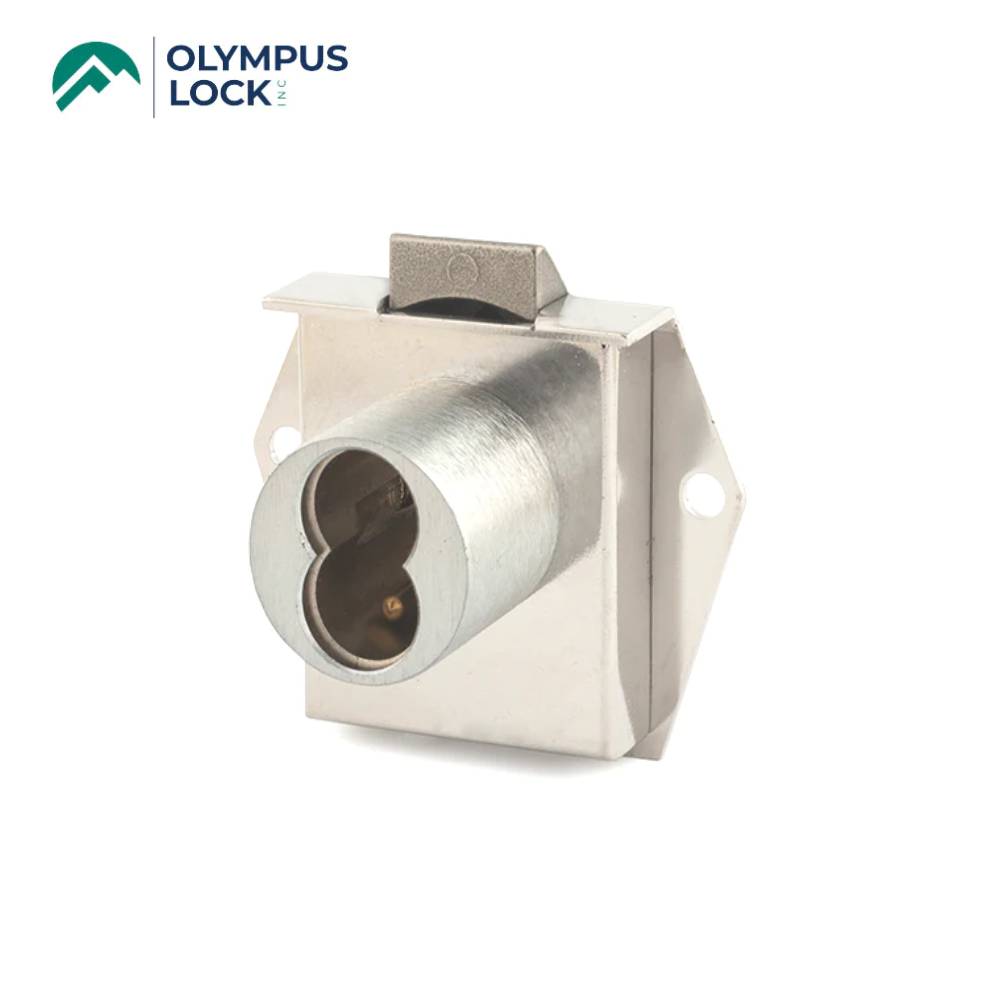

OLYMPUS LOCK – 725ML – Small Format (BEST) IC Core Mortise Latch Door & Drawer Cabinet Lock – Optional Reverse Latch – 1-1 16 Cylinder Length – Optional Handed – US26 (Polished Chrome-625)

Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.

Feature:

• Cabinet lock – Mortise mount
• Latchbolt locking mechanism
• Retrofits Best 5L series cabinet locks
• ANSI BHMA E07091 (cabinet door)
• ANSI BHMA E07061 (drawer)
• Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
• Barrel diameter: 1-1 8
• Cylinder length: 1-1 16

• Specification:

  • Retrofits: Best 5L7ML
  • Function: Mortise mounted latch
  • Handing: Available for doors or drawers
  • Reverse latch: This option is available for vertical or inverted function.
  • Testing: Passed ANSI BHMA A156.11 Grade 1 performance requirements.
  • Finish: Polished Chrome US26
  • Cores: Not included
  • Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores
  • Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.

  • Included Accessories:

    • 725-1 spacer to fit 6 or 7 pin cores
    • 725-SP-ML slotted lipped strike
    • 725-PA plastic thumbturn

    • MPN: 725ML-DR-LH-26

      Download:

      • Installation Instruction
      • Data Sheet
