Description

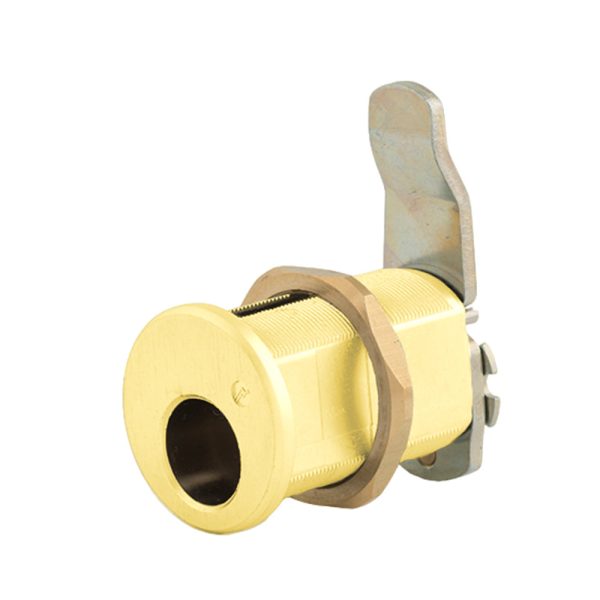

OLYMPUS LOCK – 820LC – Schlage C Keyway Cam Lock – S Series – 1-1 8 Cylinder length – US3 (Polished Brass-605)

Feature:

• Cam lock
• Easily rekeyable via rear set screws
• Will accept other manufacturer s Schlage compatible deadbolt cylinders
• ANSI BHMA: E07261
• Cylinder diameter: 1-1 8
• Across flats: 7 8
• Mounting cutout: 1-5 32
• Max. material thickness: 1-3 8
• Min. material thickness: 0.08
• US Patent No. 7,716,958 B2
• Includes all parts for key-retaining or non-key-retaining function

• Specification:

  • Rekeyable: Easily rekeyable via set screw on back of lock body
  • U.S. Patent No: 7,716,958 B2
  • Cylinder diameter: 1-1 8
  • Across flats: 7 8
  • Max. material thickness: 1-3 8
  • Min. material thickness: 0.08
  • Body: Zinc die cast
  • Functions: Includes parts for key-retaining or nonkey-retaining

  • Cylinder Information:

    • Cylinder: Not included
    • Accepts: Schlage compatible key-in-knob cylinders including ILCO cylinder #1599. This lock does not accept Medeco cylinders.
    • Includes: All parts necessary to work with other manufacturers Schlage compatible cylinders.
    • Compatible electronic cylinders: ASSA CLIQ or VIDEX CyberLock key-in-knob cylinders.

    • Included Accessories:

      • 720-PL3 anti-rotation plate
      • 720-3-1 short inverted cam
      • 720-3-2 long vertical cam
      • 720-CDLM lost motion cam shifter
      • 720-CDDM key retaining door cam shifter
      • 720-KR key retaining drawer cam shifter

      • Optional Accessories:

        • Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
        • Trim collars: TR200 Series
        • Cylinder: 78-201 Series
        • Switch accessory pack: SW-1
        • CL-MP-118: Double-D metal punch

        • Download:

          • Data Sheet
          • Installation Instruction
