Description

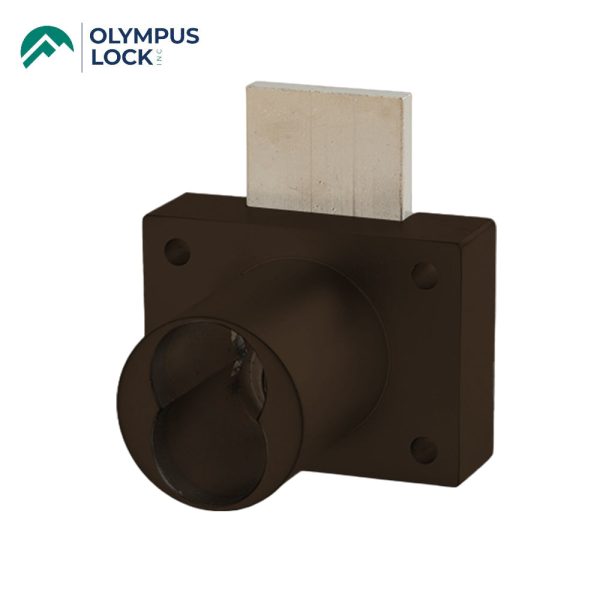

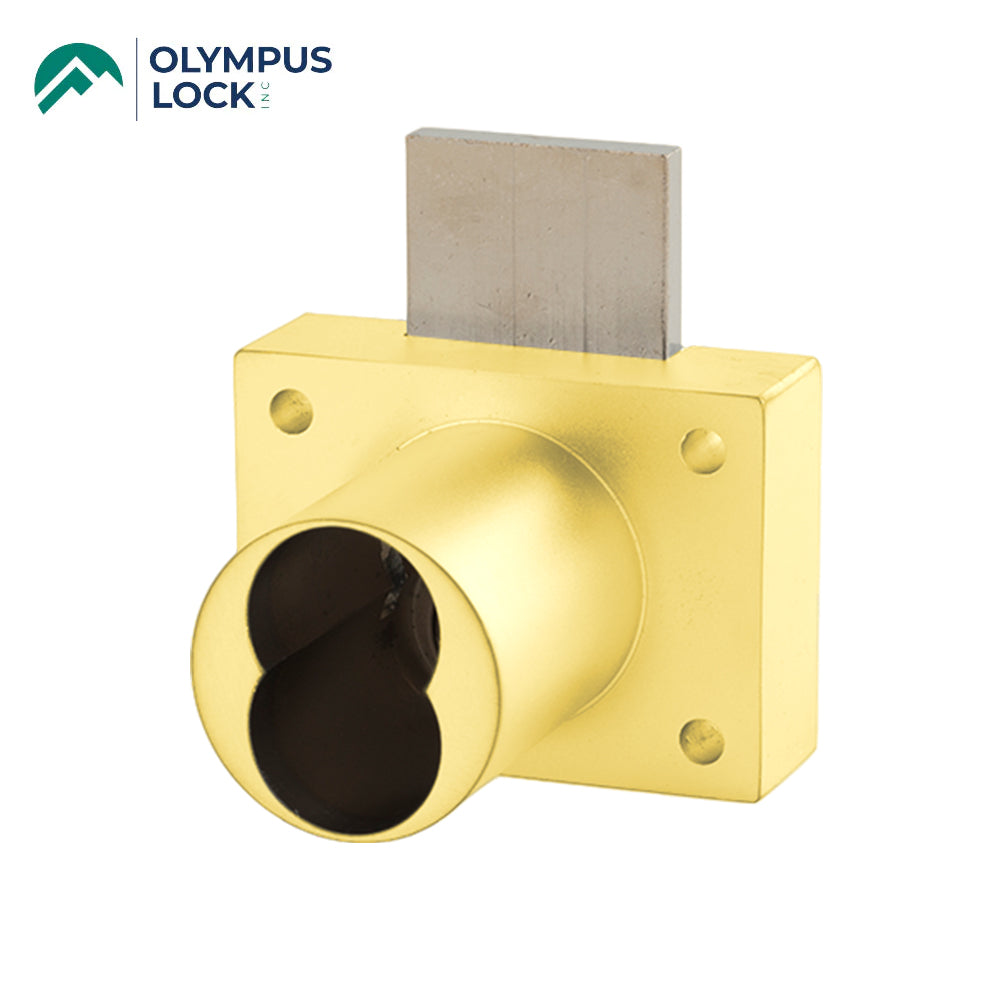

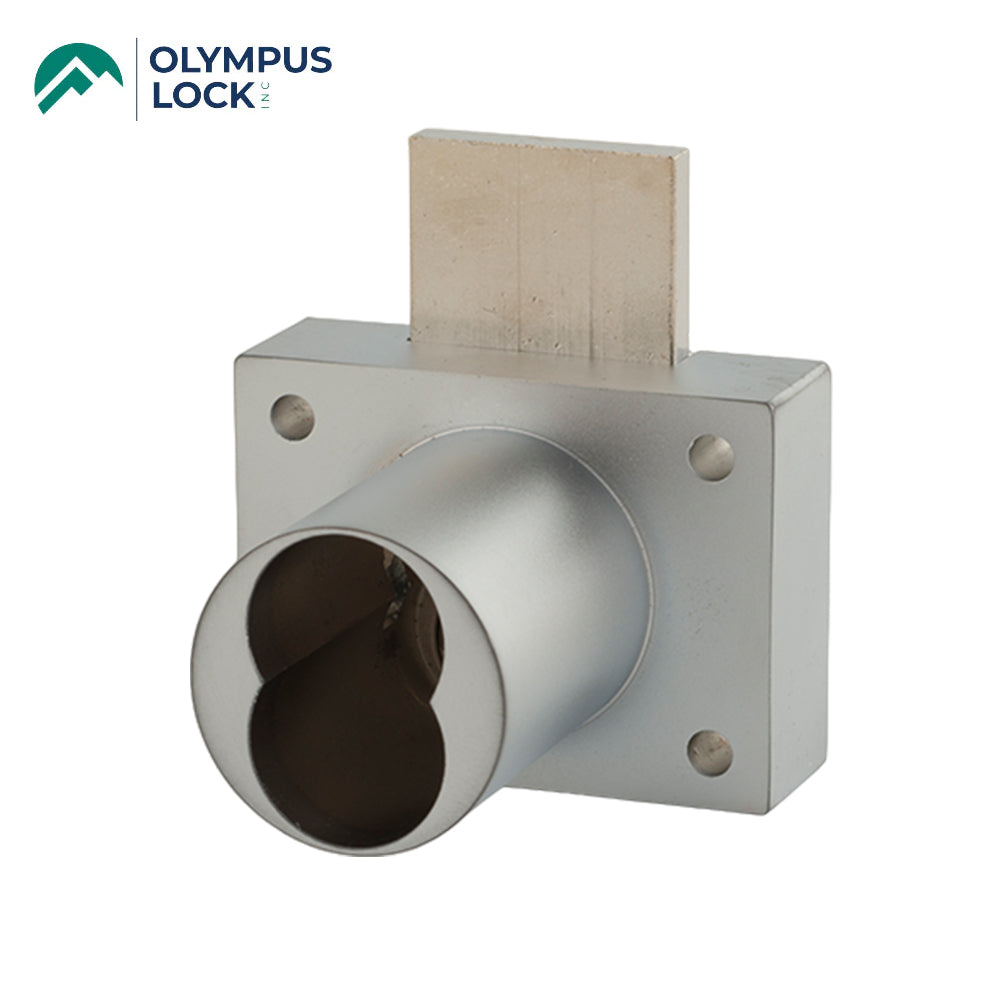

OLYMPUS LOCK – 888 – IC Cabinet Deadbolt Drawer Locks – Optional Function – Less Cylinder – Optional Color

Feature:

• Cabinet lock – Deadbolt Drawer Lock
• Accepts Schlage standard or Primus Everest large format (full size) interchangeable core cylinders
• Standard function: locks are non-handed with key removable in the locked and unlocked position
• Optional key-retaining* function: for part-numbers and handing
• (E07041)ANSI BHMA Grade 1
• Barrel diameter: 1-1 8
• Barrel length 1-7 16
• 26D, US3 or 10B finish
• *Key-retaining = key removable in the locked position only

• Specification:

  • ANSI BHMA: Passed ANSI BHMA A156.11 Grade 1 performance requirements. Equivalent to E07121 (777ICP) E07041 (888ICP)
  • Standard function: Key removable in locked and unlocked position.
  • Key-retaining function: Specify core type (Standard Classic or Primus Everest) when ordering
  • Body: Zinc die cast
  • Cylinder length: 1-7 16
  • Barrel diameter: 1-1 8
  • Finish: 26D, US3 or 10B

  • Cylinder Information:

    • Cylinder: Not included
    • Accepts: Schlage large format full-size IC cylinders

    • Schlage Quad, Numbered Section, and Schlage Classic IC cores

      Schlage Primus® and Everest large format IC cores

      Mul-T-Lock large format IC cores

      • Compatible electronic cylinders: VIDEX CyberLock LFIC cylinders

      • Included Accessories:

        • 7788-PA-D actuator to operate lock without core
        • 10-350 plastic spacers (qty 3)
        • 10-054 1 4 plastic bar strike
        • 10-055 1 2 plastic bar strike

        • Optional Accessories:

          • Spacers: 10-350 (1 8 thick), 10-348 (1 4 thick), 10-349 (1 2 thick)
          • Strikes: 10-052, 10-056, 10-057, 10-058, 12-2, 12-3, 12-4
          • Trim ring: TR78
          • Through-bolt hardware: ETS1 ETS4 ETS5 trim plate, ETS1-PL trim pull and ETST1 template

          • Download:

            • Data Sheet
            • Installation Instruction
