Description

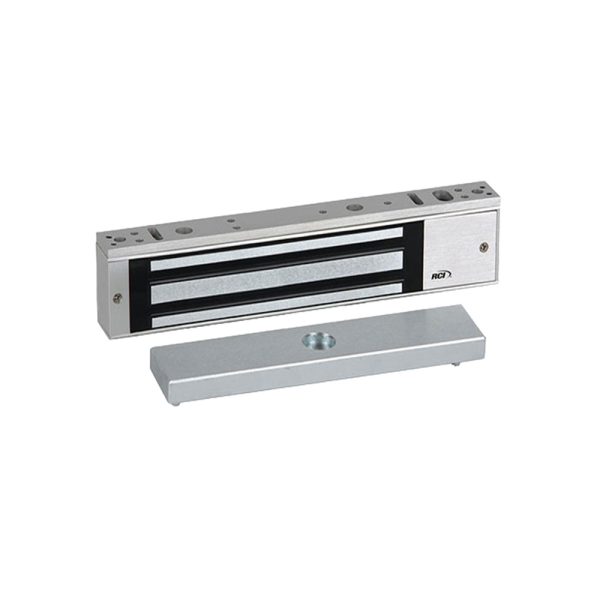

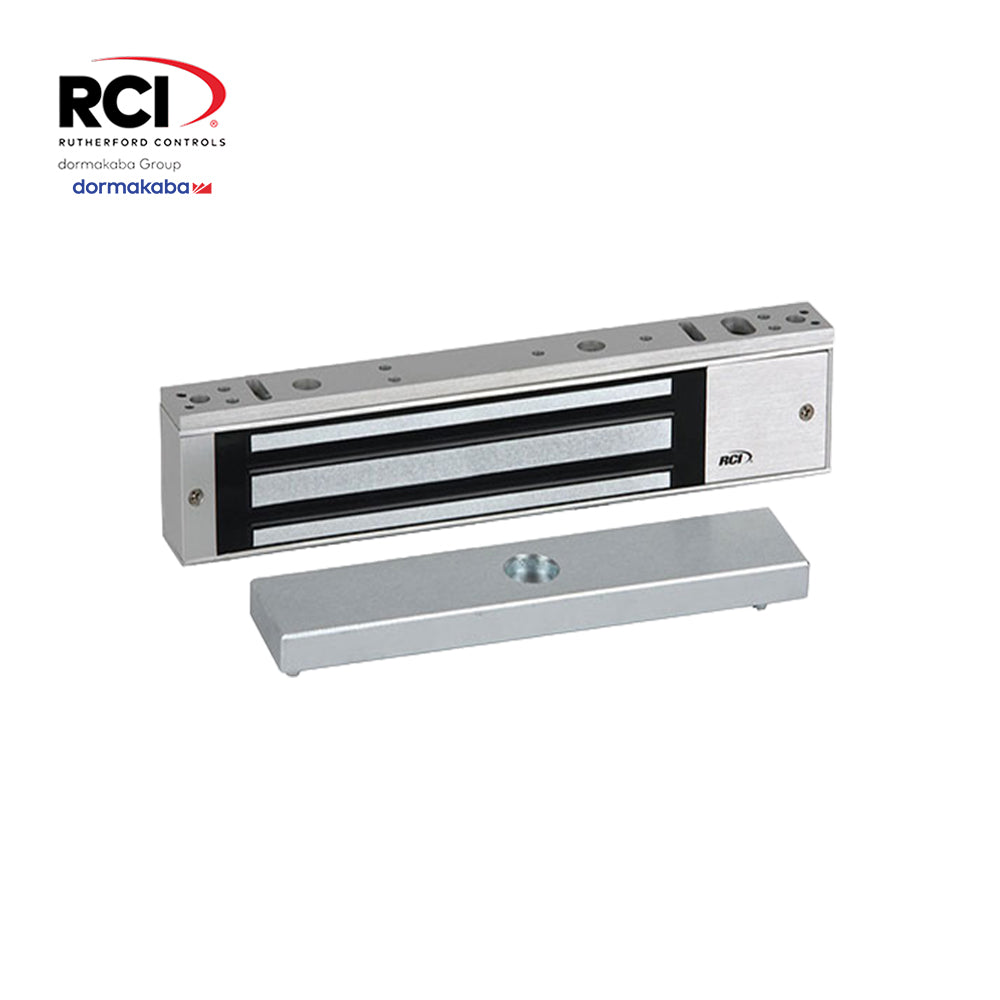

RCI 8371-28 – MiniMag Electromagnetic Lock for Single Door – 28 (Brushed Aluminum-689)

The Surface MiniMag® locks are designed with a 1-7 8” width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

Features:

• Stabilizing 4 bolt “drop stop” mounting
• Keyhole mounting for ease of installation
• Surge protection
• Easy-access wiring cavity
• 520mA Field-Selectable 12 24VDC (Max at 12VDC for 8371, 1.04A for 8372)
• Up to 750lbf Holding Force
• Lifetime Limited Warranty
• Fail-Safe
• Fire-rated, CAN ULC S104 UL 10C 1-Hour
• Optional Door Status Sensor (DSS) Security Condition Sensor (SCS) Available

• Product Specifications:

  Vendor		DormaKaba
  Manufacturer		RCI
  SKU		8371 28
  UID		RUT100837128
  Installation		Commercial
  Origin
  Unit of Measure		Each
  Base Material		VARIES
  Limited Warranty		Lifetime
  Fire Rated		1 Hour {C}

  Technical Specifications:

  Function		Electrically Locked (Fail Safe)
  Operating Voltage		12VDC 24VDC
  Amp Draw		.52 Amps at 12VDC, .26 Amps at 24VDC
  Holding Force		750 Lbs.
  Switch Type		None
  Product Type		Maglocks

  Installation Instructions:

  • 8371 Installation Instruction
