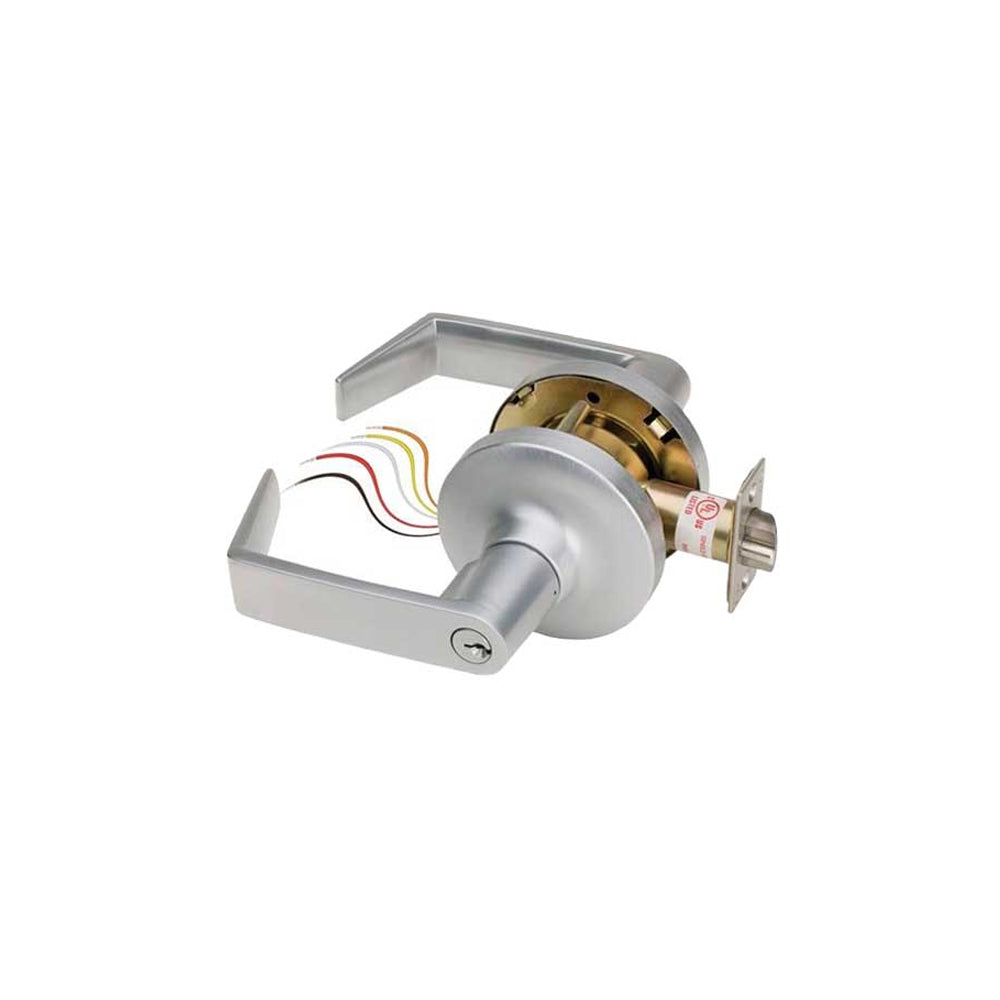

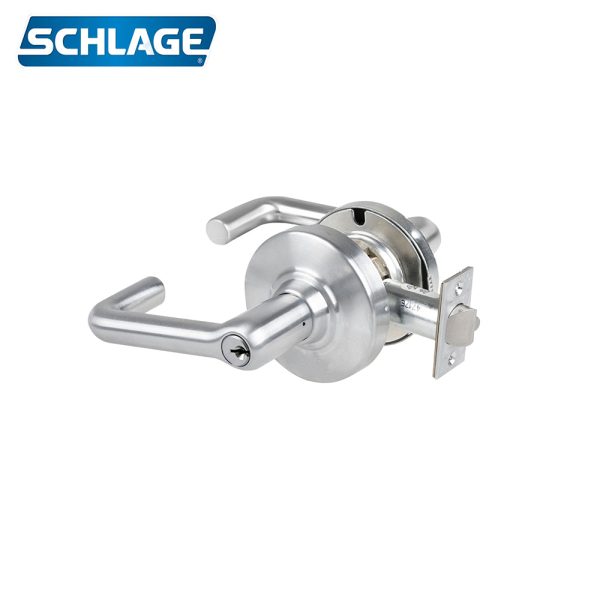

Schlage ND80PD Tubular Style Lock with Storeroom Function – Grade 1 ANSI A156.25 – Satin Chrome

The Schlage ND80PD-TLR-626 series of Tubular heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building s design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.

Features:

• Grade 1 Storeroom Lock
• Tubular Lever
• Standard Cylinder
• Satin Chrome Finish
• Non-Handed
• TLR – Tubular Lever Style

• Specifications:

  Door Thickness		1-5 8 to 2-1 8 (41 to 54 mm)
  Faceplate Size		1-1 8 x 2-1 4
  Cylinder		6-Pin Patented Everest 29
  Keyway		Schlage C – KD
  Backset		2 3 4 (70 mm) only
  Bolt		1 2 throw via Oil Impregnated Stainless Steel
  Latch		1
  Lever		TLR – Tubular Style
  Material		Stainless Steel Zinc
  Rose		3-7 16
  Strike		1-1 4 x 4-7 8 x 1-3 16
  Finish		626 – Satin Chrome
  Certifications		ANSI BHMA A156.2-2003, Exceeds 800,000 ANSI Cycles, Meets FF-H-106C Series 161, MEA Certification, Grade 1, Fire Rated for 3 Hours
  Manufacturer Warranty		10 years mechanical, 1 year wired electrified

  Installation Instructions:

  • ND_Series_Standard_Installation_Instructions
