Description

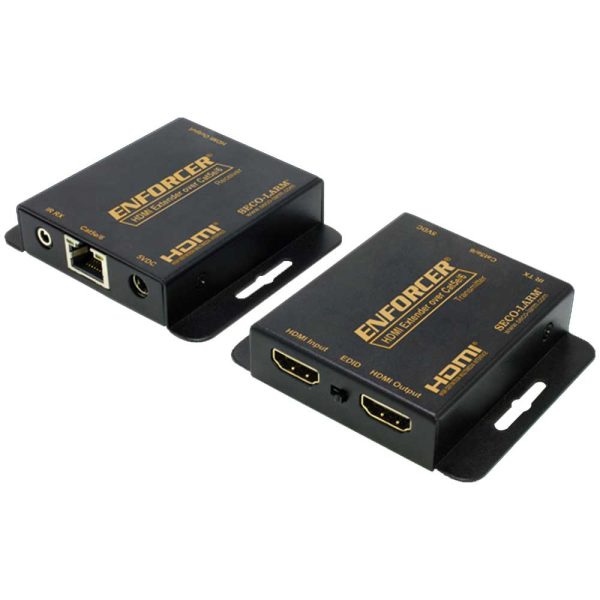

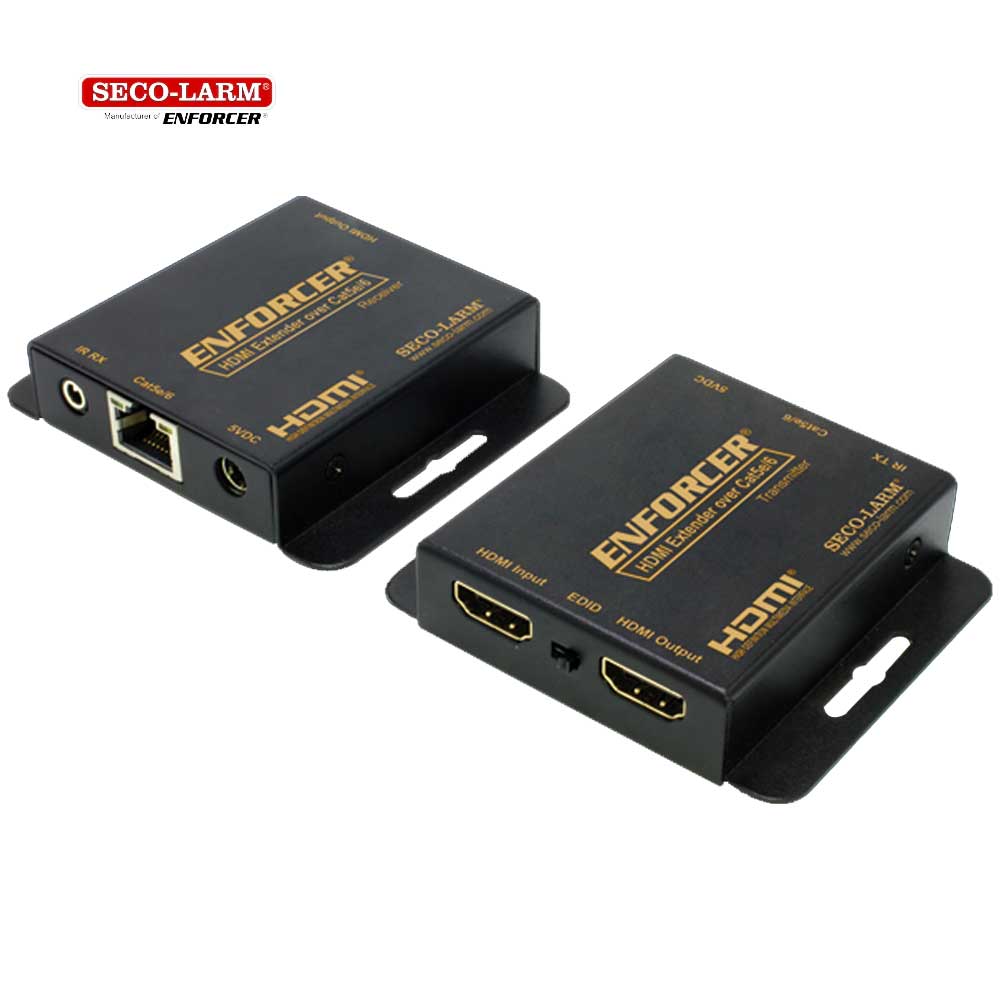

SECO-LARM MVE-AH1E1-01NQ HDMI Extender over Single Cat5e 6

The ENFORCER HDMI Extender over Single Cat5e 6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e 6 cable. HDMI formats as large as 1080p can be transmitted up to 164ft (50m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter. The extender also supports HDMI loop output, EDID management settings, and one way IR control for remotely controlling HDMI sources and displays.

Feature:

• Extend HDMI over a single Cat5e 6 cable
• Supports resolutions from 480i to 1080p with zero signal loss
• Transmits up to 164ft (50m) at 1080p over Cat5e 6 cable
• HDMI Loop output for local HDMI display
• Plug and play operation – comes as a complete set
• IR Pass-through for remote control extension and operation
• EDID Management switch
• Two (2) 5VDC power supplies included

• Specifications:

  Input Video Signal		3.3V
  Input DDC Signal		5Vp-p (TTL)
  Deep Color		24-Bit
  Video Format Supported		High-speed HDMI, HDCP 1.2
  Audio Formats Supported		LPCM, Dolby-AC3, DTS7.1, DSD
  Output Video		HDMI®
  Resolutions Supported		1080p 1080i 720p 576p 576i 480p 480i
  Range – 4K		Up to 164′ (50m)
  Video Amplifier Bandwidth		4.95Gbps
  Maximum Input Cable Length		24AWG (15m), 26AWG (10m), 28AWG (5m)
  Video Input Connector		HDMI Type A 19-pin female
  IR Pass-through Frequency		30~60 kHz
  Operating Voltage		5VDC
  Power Supply		1A@5VDC (2 Adapters) (2.1mm plug)
  ESD Protection (Human Body Model)		±8kV (Air-gap discharge), ±4kV (contact discharge)
  Cat5e 6 Wiring Standard		T568-B
  Current Draw		Transmitter- 300mA@5VDC Receiver- 200mA@5VDC
  Operating Temperature		32°~104° F (0°~40° C)
  Operating Humidity		20~90% RH (no condensation)
  Dimensions		31 8″x11 16″x25 8″ (79x17x67 mm)
  Weight		5.3-oz (150g) (Each)
  Maximum Single Link Range		1080p

  Troubleshooting:

  HDMI device does not function correctly		Use T568-B wiring standard Make sure the extender is powered on both sides Make sure the source and display are powered Test the Cat5e 6 cable between the receiver and the transmitter to make sure it is functional Make sure there are no problems with the HDMI source, HDMI cables, or HDMI display by plugging the source directly into the display using an HDMI cable
  Screen flickering or brief image loss		Use a higher grade of twisted pair category cable (Cat6 is recommended) Switch the source device to a lower HDMI output (i.e., 1080p to 1080i) Power down the unit then move the EDID switch to the opposite position and re-power the unit Restart the handshake process by powering everything down then powering up and connecting each device in succession starting with the HDMI source
