Description

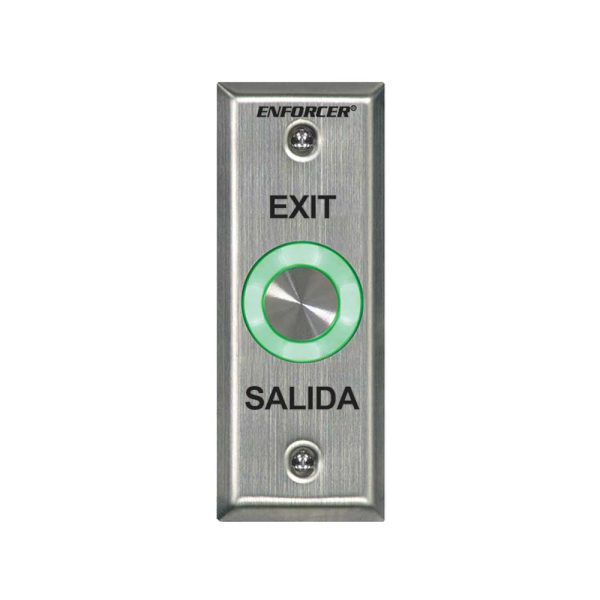

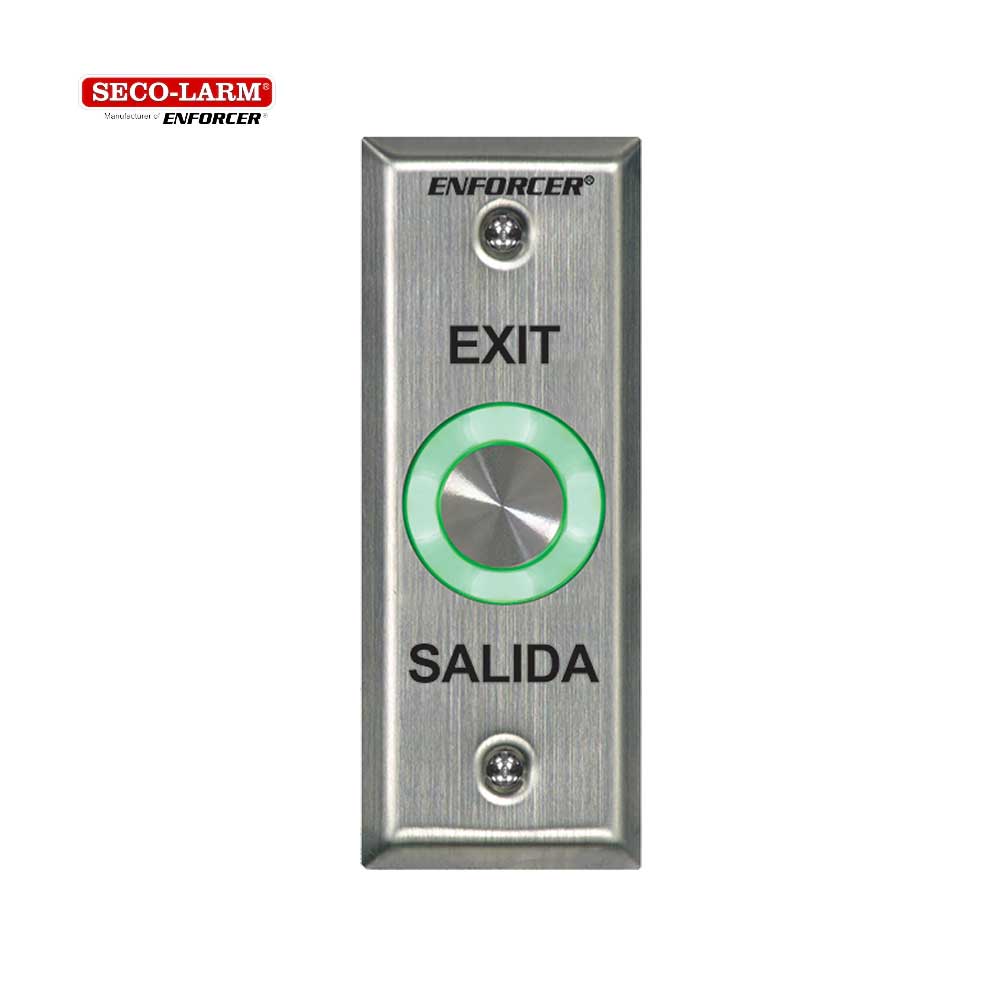

SECO-LARM SD-6176-SS1Q Piezoelectric Illuminated RTE Wall Plate with Timer, Slimline

Programmable Red Green Round Button, with “EXIT” & “SALIDA”.
It offers a sophisticated and efficient solution for easy access control and regulated entry in various environments. Featuring a slimline design, these wall plates add a modern touch to any setting while providing seamless integration with request-to-exit (RTE) devices. The piezoelectric technology ensures reliable and responsive touch-sensitive operation, enabling users to request access effortlessly. The built-in timer functionality adds an extra layer of security and convenience, allowing users to set a specific time duration for the door to remain open after activation. The LED illumination enhances visibility in low-light conditions and acts as a clear indicator of the activated RTE device. With the SECO-LARM SD-6176-SS1Q Piezoelectric Illuminated RTE Wall Plate with Timer, enhancing access control becomes a streamlined and user-friendly experience, making them a valuable addition to access management systems in various applications.

Features:

• Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
• No moving parts for heavy duty use
• LED ring around button changes from green to red or red to green when the button is pressed
• Timed or toggle output
• Relay rated 2.5A@24VDC with two individually programmable outputs (NO NC)

• Specifications:

  Type		RTE Plates with piezoelectric pushbuttons
  Operating Voltage		12~24 VDC
  Current Draw		100mA@12VDC
  Contact Rating		2.5A@24VDC
  Ring LED Default- Standby		Red
  Ring LED Default- Active		Green
  Output Time		1~30 s, Toggle
  IP Rating		Weatherproof IP65
  Operating Temperature		32º~158º F (0º~70º C)
  Material		Stainless steel
  Weight		2.6-oz (74g)

  Download:

  • Product Information Sheet
  • Manual
