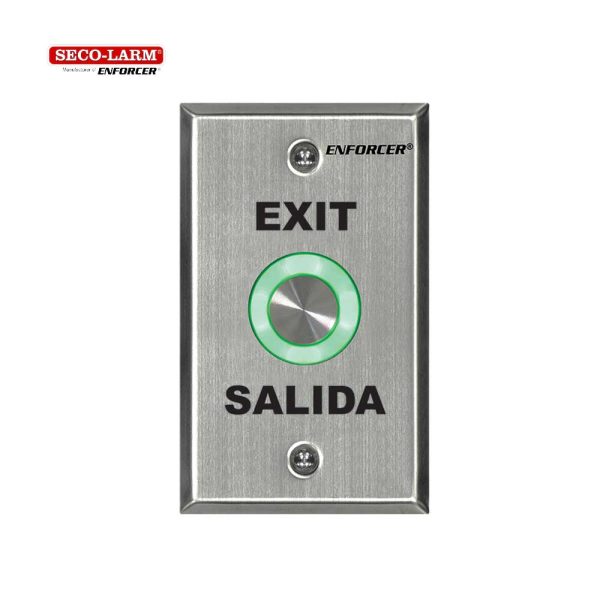

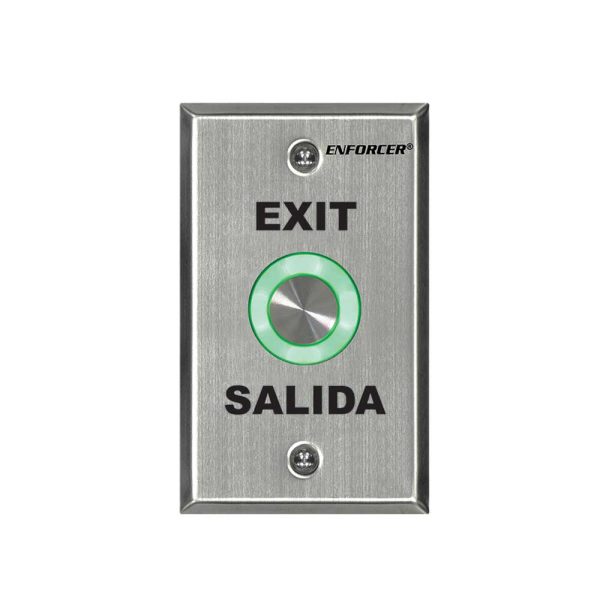

SECO-LARM SD-6276-SS1Q Piezoelectric Illuminated RTE Wall Plate with Timer, Single-gang

This is a versatile and efficient solution designed to enhance access control and convenience in various settings. This single-gang wall plate features a piezoelectric touch-sensitive surface, ensuring reliable and responsive operation for requesting exit in controlled environments. The integrated LED illumination not only adds a modern touch but also enhances visibility in low-light conditions, while also serving as a clear indicator of the activated RTE device. The wall plate s built-in timer functionality allows users to set a specific duration for the door to remain open after activation, providing an additional layer of security and control. With its sleek design and comprehensive features, it offers a user-friendly and efficient solution for optimizing access management in a wide range of applications.

Features:

• Programmable Red Green Round Button, with “EXIT” & “SALIDA”
• Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
• No moving parts for heavy duty use
• LED ring around button changes from green to red or red to green when the button is pressed
• Timed or toggle output
• Relay rated 2.5A@24VDC with two individually programmable outputs (NO NC)

• Specifications:

  Type		RTE Plates with piezoelectric pushbuttons
  Operating Voltage		12~24 VDC
  Current Draw		100mA@12VDC
  Contact Rating		2.5A@24VDC
  Ring LED Default- Standby		Red
  Ring LED Default- Active		Green
  Output Time		1~30 s, Toggle
  IP Rating		Weatherproof IP65
  Operating Temperature		32º~158º F (0º~70º C)
  Material		Stainless steel
  Weight		3.5-oz (99g)
