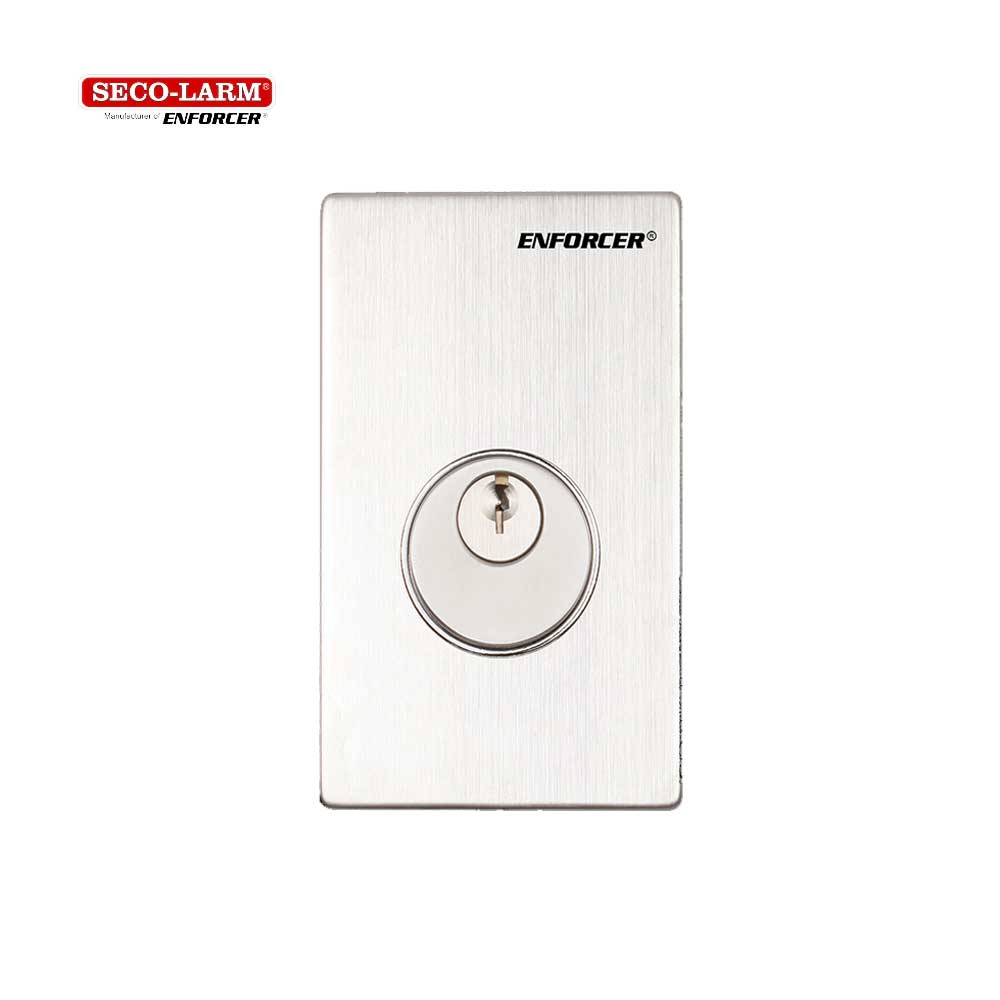

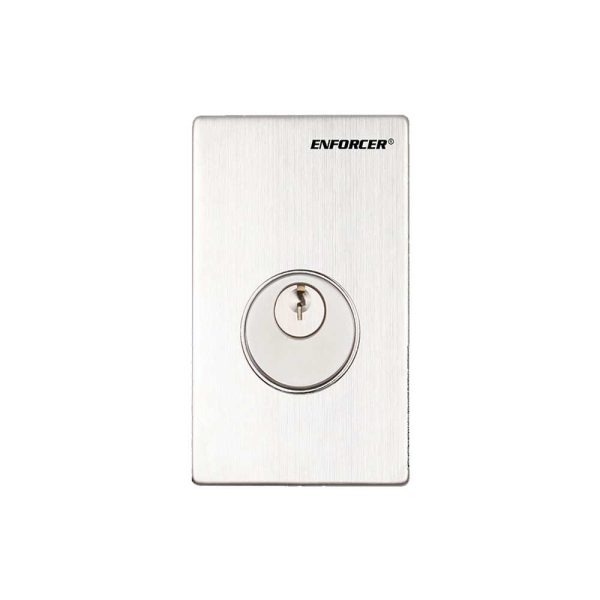

SECO-LARM SD-72081-6MQ Mortise Cylinder Key Switch – Momentary

Single-Gang, Keyed mortise cylinder (2 keys included).
If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between normally closed (N.C.) and normally open (N.O.) contacts using the Single-Gang Mortise Cylinder Key Switches (available with either momentary or maintained outputs), forcing the door to open. This acts as a backup for access control systems, so that the system does not rely on the integrity of a single device.

Features:

• Keyed mortise cylinder (2 keys included)
• Mortise cylinder removable for ease of keying
• Flush mount with vandal-resistant screws
• Chrome-plated aluminum back plate fits to single-gang box
• Stainless-steel front cover conceals mounting screws
• DPDT Momentary switch, 25A@24VAC contact rating

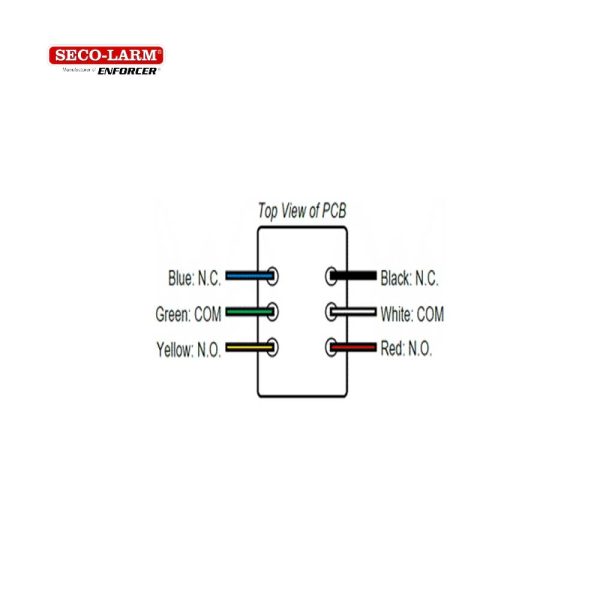

• Color-coded wires
• Maintained (SD-72031-6MQ) or momentary (SD-72081-6MQ) output

• Specifications:

  Switch Type		DPDT Switch (momentary)
  Contact Rating		25A@24VAC, NO NC
  Dimensions		2-3 4″x4-1 2″x1-7 16″ (69x114x37 mm)
