Description

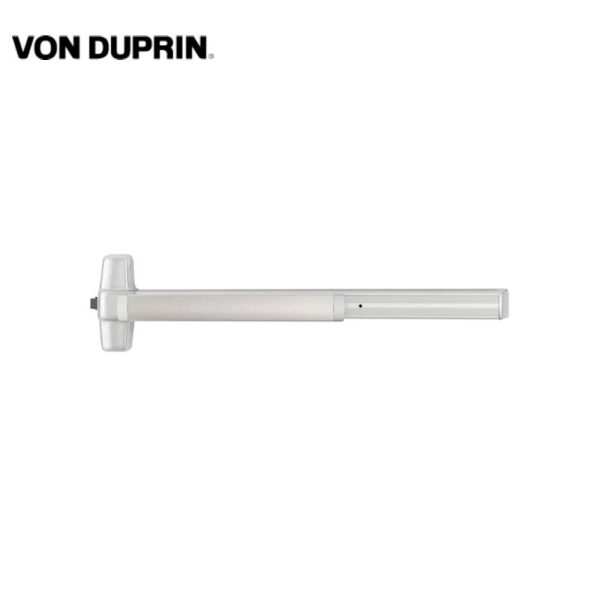

Von Duprin – 99EO-3-26D – Rim Exit Bar – 36 – Wide Stile Pushpad – Exit Only – Less Trim – Satin Chrome – Grade 1

99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI BHMA A156.3 2014, Grade 1. The 99 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.

Features:

• Device functions: Device ships EO DT NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3 2 4 to 3 (711mm to 914 mm) Door size 4 2 10 to 4 (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13 16 (1011 mm) 39 11 16 (1008 mm) with mullion
• Center case dimensions: 8 x 2 3 4 x2 3 8 (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1 4 x 2 1 4 (57mm x 57mm
• Projection: Pushbar neutral – 3 13 16 (97 mm) Pushbar depressed – 3 1 16 (78 mm)
• Latch bolt: Deadlocking, 3 4 (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3 4 (44mm) and 2 1 4 (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

• Product Specifications:

  Vendor		Allegion
  Manufacturer		Von Duprin
  SKU		99EO 3 26D
  UID		VON10099EO326D
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  UL Listing Type		UL 305
  ANSI Number		A156.3
  BAA Qualified		Yes

  Technical Specifications:

  Physical Appearance		Wide Stile Pushpad
  Device Type		Rim
  Mechanical Function		Exit Only, Accepts Various Trim
  Device Length		36
  Hand		Non-handed
  Dogging Options		Hex Key Dogging
  Trim Type		Less Trim
  Trim Design		Less Trim
  Cylinder Type		Non-Keyed
  Minimum Stile Size		3-5 8
  Door Material		Metal or Wood
  Door Width		28 – 36
  Door Thickness		1-3 4 – 2-1 4
  Product Type		Rim Exit Devices

  Installation Instructions:

  • 99 Series Installation Instructions
