Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36 - Exit Only - Less Trim - Satin Chrome Finish - Grade 1 Online now
Von Duprin - CD3547A-EO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - 36 - Exit Only - Less Trim - Satin Chrome Finish - Grade 1 Online now - Image 2

Von Duprin – CD3547A-EO – Concealed Vertical Rod Exit Device – Narrow Stile Pushpad – 36 – Exit Only – Less Trim – Satin Chrome Finish – Grade 1 Online now

SKU: BD2CBCA2310AB26B

Original price was: $1,960.20.Current price is: $588.06.

In Stock
Add to wishlist

  • Price match promise

  • Free delivery on all orders

  • Safe & secure transaction

  • Extended Christmas return policy

Recently Viewed

OLYMPUS LOCK – 100B – Weather Resistant Cabinet Deadbolt Door Lock – Key-Retaining Optional Drawer – N Series – Optional Cylinder Length – Optional Keying – US26D (Satin Chrome-626) For Discount

OLYMPUS LOCK – 100B – Weather Resistant Cabinet Deadbolt Door Lock – Key-Retaining Optional Drawer – N Series – Optional Cylinder Length – Optional Keying – US26D (Satin Chrome-626) For Discount

Original price was: $36.77.Current price is: $18.39.
OLYMPUS LOCK – 725RD – Small Format (BEST) IC Core Deadbolt Door & Drawer Cabinet Lock – Optional Key Retaining – Optional Cylinder Length – Optional Handed – US26D (Satin Chrome-626) Supply

OLYMPUS LOCK – 725RD – Small Format (BEST) IC Core Deadbolt Door & Drawer Cabinet Lock – Optional Key Retaining – Optional Cylinder Length – Optional Handed – US26D (Satin Chrome-626) Supply

Original price was: $37.25.Current price is: $18.63.
OLYMPUS LOCK – 725RD – Small Format (BEST) IC Core Deadbolt Door & Drawer Cabinet Lock – Optional Key Retaining – 1-1 16 Inch Cylinder Length – Optional Handed – US4 (Satin Brass-606) For Cheap

OLYMPUS LOCK – 725RD – Small Format (BEST) IC Core Deadbolt Door & Drawer Cabinet Lock – Optional Key Retaining – 1-1 16 Inch Cylinder Length – Optional Handed – US4 (Satin Brass-606) For Cheap

Original price was: $37.25.Current price is: $18.63.
Von Duprin – 99EO-3-26D – Rim Exit Bar – 36- Wide Stile Pushpad – Exit Only – Less Trim – Satin Chrome – Grade 1 Online

Von Duprin – 99EO-3-26D – Rim Exit Bar – 36- Wide Stile Pushpad – Exit Only – Less Trim – Satin Chrome – Grade 1 Online

Original price was: $1,191.60.Current price is: $357.48.

Description

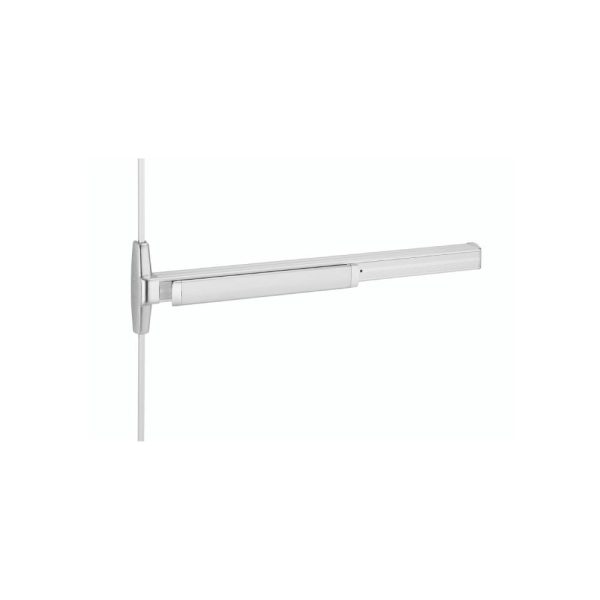

Von Duprin – CD3547A-EO – Concealed Vertical Rod Exit Device – Narrow Stile Pushpad – 36 – Exit Only – Less Trim – Satin Chrome Finish – Grade 1

Finishes – US3, US4, US10, US15 (35A Only) US26, US26D, US26D-AM,US28, 313 and 315.

The concealed vertical rod device is non-handed except when the SS (signal switch) option is used. 3547A fits door stiles as narrow as 2-1 8 (44 mm), wood door stiles as narrow as 4 (102mm). Newly designed device has a one piece center case cover

Features:

  • Device lengths: 2 2 (610 mm) Door size 3 2 4 to 3 (660mm to 914 mm) door size 4 2 8 to 4 (813 mm to 1219 mm) door size
  • Device centerline from finished floor: 39 13 16 (1006mm)
  • Center case dimensions: 8 13 16 x 2 13 32 x 1 9 16 (208mm x 62mm x 40mm)
  • Mechanism case dimensions: 2 1 4 x 2 1 4 (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13 16 (97 mm) Pushbar depressed – 3 1 16 (78 mm)
  • Latch bolt: Deadlocking anti-friction top bottom bolt 5 8 (16mm) throw
  • Door undercut: 1 4 (7mm)
  • Top bottom latch: 3 3 4 x 1 1 2 x 1 (89mm x 38mm x 25mm
  • Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6 8 (2027mm) to 8 4 (2533mm) Bottom rod adjustable from 35 5 8 (905mm) to 49 5 8 (1260mm) Extension rod kits available for doors over 8 4 (2533mm)
  • Fasteners and sex bolts (SBN) Includes 1 3 4 (44mm) – 2 1 4 (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
    • Product Specifications:

      Vendor

      		 Allegion
      Manufacturer

      		 Von Duprin
      SKU

      		 CD3547AEO 3 26D
      UID

      		 VON100CD3547AEO326D
      Grade

      		 Grade 1
      Installation

      		 Commercial
      Unit of Measure

      		 Each
      Base Material

      		 Brass or Bronze
      UL Listing Type

      		 UL Listed
      ANSI Number

      		 A156.3 2008
      Technical Specifications:

      Physical Appearance

      		 Narrow Stile Pushpad
      Device Type

      		 Concealed Vertical Rod
      Mechanical Function

      		 Exit Only
      Device Length

      		 36

      Hand

      		 Non-Handed
      Dogging Options

      		 Cylinder Dogging
      Top Strike

      		 338
      Strike Bottom

      		 385A
      Trim Type

      		 Less Trim
      Minimum Stile Size

      		 2-1 8

      Door Material

      		 Hollow Metal
      Door Width

      		 28 to 36

      Door Height

      		 100

      Door Thickness

      		 1-3 4

      Reversible

      		 Yes
      Product Type

      		 Concealed Vertical Rod Exit Devices
