Description

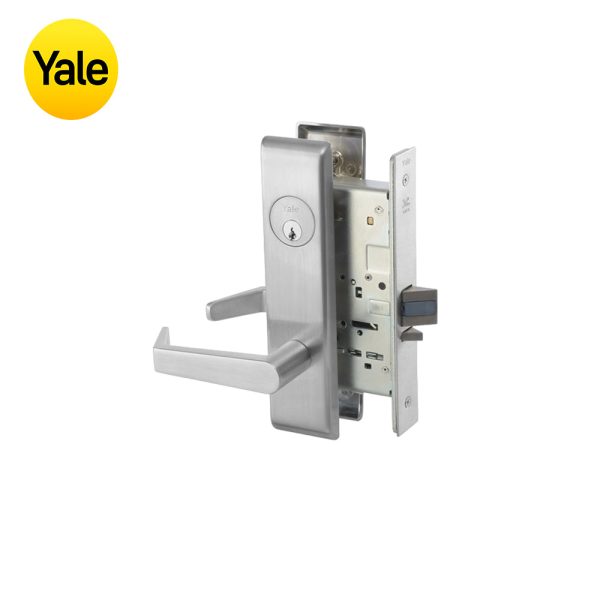

Yale – CRCN8822FL – Mortise Dormitory Lock with CRCN Trim – Grade 1 – 626 (Satin Chrome)

Yale 8800 Series Mortise Locks installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI BHMA Grade 1 certification for long life and durability.

Features:

• ANSI BHMA: Certified ANSI BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3 4
• Latchbolt: 3 4 stainless steel throw
• Door Thickness: 1-3 4 standard, to 3-1 4 thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1 8 in 2
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1 4 curved lip for 1-3 4 door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical

• Product Specifications:

  Manufacturer		Yale
  SKU		CRCN8822FL 626
  UID		YALCRCN8822FL626
  Grade		Grade 1
  Unit of Measure		Each
  Base Material		Brass or Bronze
  Design A		CR Lever
  Design B		CN Escutcheon
  Limited Warranty		10 Years
  Fire Rated		3 Hours {A}

  Technical Specifications:

  Function		22-Dormitory or Exit Lock
  ANSI Function		F13 – Dormitory
  Lever Knob Design		CR – Carmel
  Rose Escutcheon Design		CN – Escutcheon
  Cylinder Type		Conventional Cylinder
  Num Pins		6
  Std. Keyway		Para
  Num of Keys		2
  Cylinder Length		1-1 8 In.
  Door Thickness		1-3 4
  Std. Latch Backset Dim		2-3 4
  Lock Face Size		8 x 1-1 4
  Bolt Projection		3 4
  Std. Strike Number		2815
  Std. Strike Type		ASA
  Std. Strike Height		4-7 8
  Std. Strike Width		1-1 4
  Product Type		Mortise Lock

  Installation Instructions:

  • 8800 Series Mortise Lockset Knob, Lever, Reflections and Secur
